Oil Pump Assembly
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

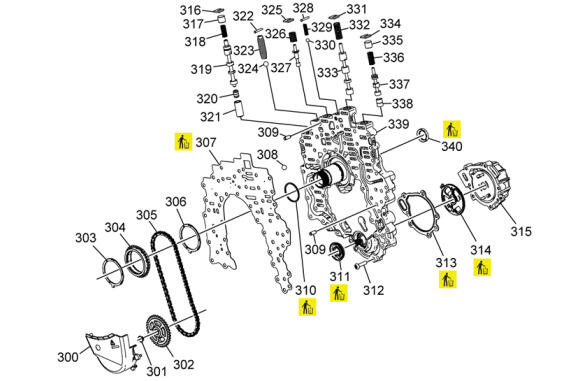

| Callout | Component Name |
|---|---|
| 300 | Automatic Transmission Fluid Baffle |
| 301 | Drive Sprocket Retaining Ring |
| 302 | Driven Sprocket |
| 303 | Driven Sprocket Thrust Washer |
| 304 | Drive Sprocket |
| 305 | Drive Link |
| 306 | Driven Sprocket Thrust Washer |
| 307 | Auxiliary Control Valve Body Spacer Plate |
| 308 | Automatic Transmission Fluid Pump Ball Check Valve |
| 309 | Automatic Transmission Fluid Pump Locating Pin |
| 310 | Torque Converter Fluid Seal Ring |
| 311 | Automatic Transmission Fluid Pump Shaft Seal |
| 312 | Automatic Transmission Fluid Pump Cover Bolt |
| 313 | Automatic Transmission Fluid Pump Gasket |
| 314 | Automatic Transmission Fluid Pump Pressure Plate Seal |
| 315 | Automatic Transmission Fluid Pump |
| 316 | Pressure Regulator Valve Spring Retainer |
| 317 | Pressure Regulator Valve Plug |
| 318 | Pressure Regulator Valve Spring |
| 319 | Pressure Regulator Valve |
| 320 | Pressure Regulator Shuttle Valve |
| 321 | Pressure Regulator Valve Bore Bushing |
| 322 | Line Blowoff Ball Valve Spring Retainer |
| 323 | Automatic Transmission Fluid Pump Blowoff Ball Valve Spring |
| 324 | Automatic Transmission Fluid Pump Blowoff Ball Valve |
| 325 | Lube Regulator Valve Bore Plug Retainer |
| 326 | Lube Boost Valve Spring |
| 327 | Lube Regulator Valve |
| 328 | Torque Converter Clutch Blowoff Ball Valve Retainer |
| 329 | Torque Converter Clutch Blowoff Ball Valve Spring |
| 330 | Torque Converter Clutch Blowoff Ball Valve |
| 331 | Torque Converter Clutch Control Valve Retainer |
| 332 | Torque Converter Clutch Control Valve Spring |
| 333 | Torque Converter Clutch Control Valve |
| 334 | Torque Converter Clutch Regulator Application Valve Bore Plug Retainer |
| 335 | Torque Converter Clutch Regulator Application Valve Bore Plug |
| 336 | Torque Converter Clutch Regulator Apply Valve Spring |
| 337 | Torque Converter Clutch Regulator Apply Valve |
| 338 | Torque Converter Clutch Regulator Application Shuttle Valve |
| 339 | Drive Sprocket Support |
| 340 | Stator Shaft Seal |
