Front Differential Carrier Assembly

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

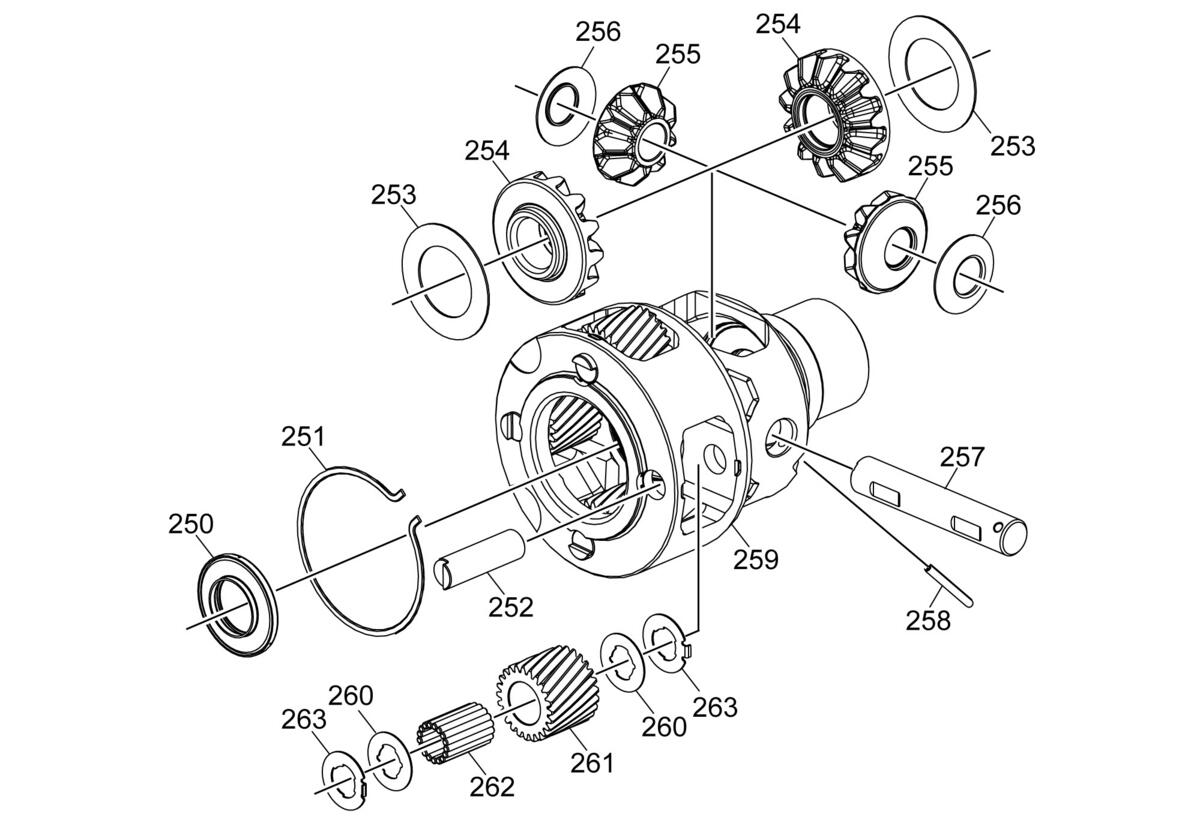

Fig 1: Exploded View Of Front Differential Carrier Assembly Components
GM4603223Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
250 Front Differential Carrier Sun Gear Thrust Bearing
251 Final Drive Retainer
252 Final Drive Pinion Pin
253 Front Differential Side Gear Thrust Washer
254 Front Differential Side Gear
255 Front Differential Pinion Gear Thrust Washer
256 Front Differential Pinion Gear
257 Front Differential Pinion Gear Shaft
258 Front Differential Pinion Gear Shaft Pin
259 Differential Carrier
260 Final Drive Inner Washer
261 Pinion Final Drive Gear
262 Final Drive Roller
263 Final Drive Outer Washer
