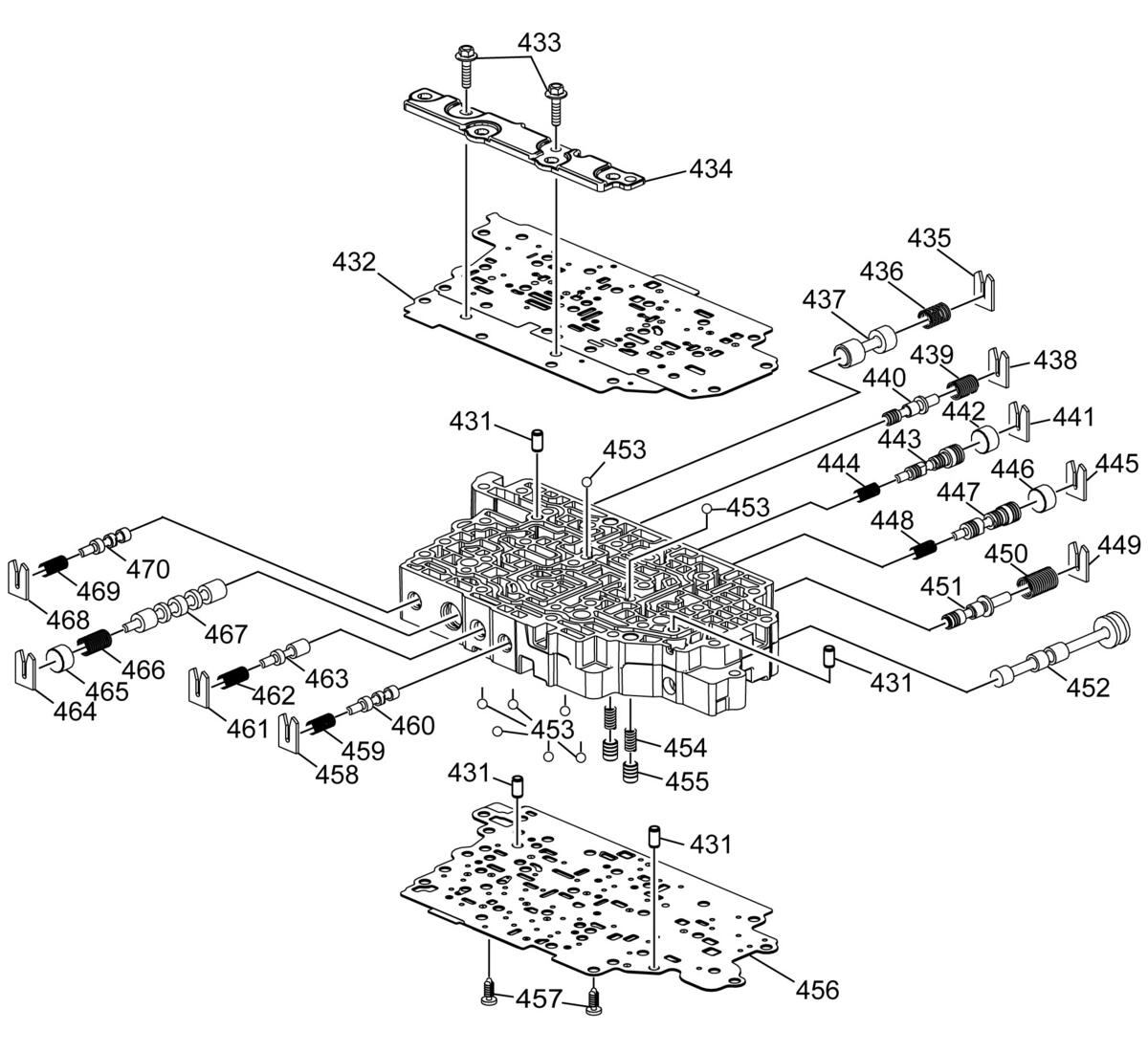

Control Valve Body Assembly (without ETRS)
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 431 | Control Valve Body Locating Pin |
| 432 | Control Valve Body Spacer Plate |
| 433 | Control Valve Solenoid Body Bolt |
| 434 | Oil Transfer Plate |
| 435 | Oil Level Control Valve Spring Retainer |
| 436 | Automatic Transmission Fluid Level Control Valve Spring |
| 437 | Automatic Transmission Fluid Level Control Valve |
| 438 | Feed Limit Valve Spring Retainer |
| 439 | Feed Limit Valve Spring |
| 440 | Feed Limit Valve |
| 441 | 4th Clutch Regulator Valve Bore Plug Retainer |
| 442 | 4th Clutch Regulator Valve Bore Plug |
| 443 | 4th Clutch Regulator Valve |
| 444 | 4th Clutch Regulator Valve Spring |
| 445 | 3-8 Clutch Regulator Valve Bore Plug Retainer |
| 446 | 3-8 Clutch Regulator Valve Bore Plug |
| 447 | 3-8 Clutch Regulator Valve |
| 448 | 3-8 Clutch Regulator Valve Spring |
| 449 | Actuator Feed Limit Valve Spring Retainer |
| 450 | Actuator Feed Limit Valve Spring |
| 451 | Actuator Feed Limit Valve |
| 452 | Manual Valve |
| 453 | Control Valve Body Ball Check Valve |
| 454 | Variable Feed Solenoid Clutch Accumulator Piston Spring |
| 455 | Variable Feed Solenoid Clutch Accumulator Piston |
| 456 | Control Valve Body Spacer Plate |
| 457 | Control Valve Body Spacer Plate Retainer |
| 458 | 1-2-3-4-5-6 Clutch Boost Valve Spring Retainer |
| 459 | 1-2-3-4-5-6 Clutch Boost Valve Spring |
| 460 | 1-2-3-4-5-6 Clutch Boost Valve |
| 461 | Latch Valve Spring Retainer |
| 462 | Latch Valve Spring |
| 463 | Latch Valve |
| 464 | Clutch Selector Valve Bore Plug Retainer |
| 465 | Clutch Selector Valve Bore Plug |
| 466 | Clutch Selector Valve Spring |
| 467 | Clutch Selector Valve |
| 468 | 5-7-Reverse Clutch Boost Valve Spring Retainer |
| 469 | 5-7-Reverse Clutch Boost Valve Spring |
| 470 | 5-7-Reverse Clutch Boost Valve |
