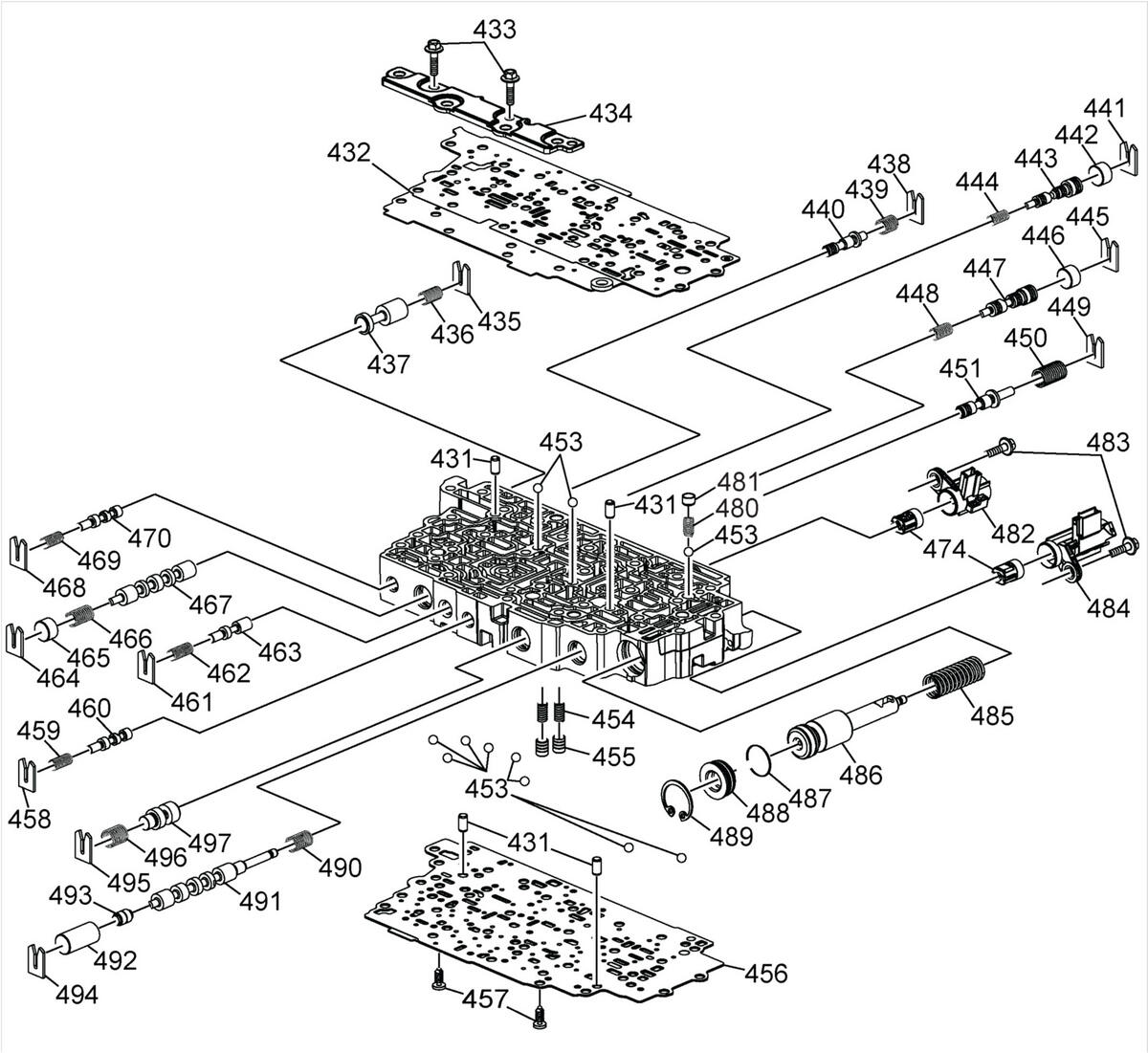

Control Valve Body Assembly (with ETRS)
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 431 | Control Valve Body Locating Pin |
| 432 | Control Valve Body Spacer Plate |
| 433 | Control Valve Solenoid Body Bolt |
| 434 | Oil Transfer Plate |
| 435 | Oil Level Control Valve Spring Retainer |
| 436 | Automatic Transmission Fluid Level Control Valve Spring |
| 437 | Automatic Transmission Fluid Level Control Valve |
| 438 | Feed Limit Valve Spring Retainer |
| 439 | Feed Limit Valve Spring |
| 440 | Feed Limit Valve |
| 441 | 4th Clutch Regulator Valve Bore Plug Retainer |
| 442 | 4th Clutch Regulator Valve Bore Plug |
| 443 | 4th Clutch Regulator Valve |
| 444 | 3-8 Clutch Regulator Valve Spring |
| 445 | 3-8 Clutch Regulator Valve Bore Plug Retainer |
| 446 | 3-8 Clutch Regulator Valve Bore Plug |
| 447 | 3-8 Clutch Regulator Valve |
| 448 | 3-8 Clutch Regulator Valve Spring |
| 449 | Actuator Feed Limit Valve Spring Retainer |
| 450 | Actuator Feed Limit Valve Spring |
| 451 | Actuator Feed Limit Valve |
| 452 | Manual Valve |
| 453 | Control Valve Body Ball Check Valve |
| 454 | Variable Feed Solenoid Clutch Accumulator Piston Spring |
| 455 | Variable Feed Solenoid Clutch Accumulator Piston |
| 456 | Control Valve Body Spacer Plate |
| 457 | Control Valve Body Spacer Plate Retainer |
| 458 | 5-7-Reverse Clutch Boost Valve Spring Retainer |
| 459 | 1-2-3-4-5-6 Clutch Boost Valve Spring |
| 460 | 1-2-3-4-5-6 Clutch Boost Valve |
| 461 | Latch Valve Spring Retainer |
| 462 | Latch Valve Spring |
| 463 | Latch Valve |
| 464 | Clutch Selector Valve Bore Plug Retainer |
| 465 | Clutch Selector Valve Bore Plug |
| 466 | Clutch Selector Valve Spring |
| 467 | Clutch Selector Valve |
| 468 | 1-2-3-4-5-6 Clutch Boost Valve Spring Retainer |
| 469 | 5-7-Reverse Clutch Boost Valve Spring |
| 470 | 5-7-Reverse Clutch Boost Valve |
| 474 | Mode Valve Position Switch Magnet |
| 480 | Park Selector Valve Spring |
| 481 | Park Selector Valve Bore Plug |
| 482 | Mode Valve Position Switch |
| 483 | Control Valve Solenoid Body Bolt |
| 484 | Parking Servo Piston Switch |
| 485 | Park Release Servo Piston Spring |
| 486 | Park Release Servo Piston |
| 487 | Park Release Servo Piston Seal |
| 488 | Park Release Servo Valve Bore Plug |
| 489 | Park Release Servo Valve Bore Plug Retainer |
| 490 | Mode 2 Valve Spring |
| 491 | Mode 2 Electronic Transmission Range Selector Valve |
| 492 | Modulator Valve Bushing |
| 493 | Mode 2 Valve |
| 494 | Electronic Transmission Range Selector Mode Enable Valve Spring Retainer |
| 495 | Mode 2 Valve Bore Plug Retainer |
| 496 | Electronic Transmission Range Selector Mode Enable Valve Spring |
| 497 | Electronic Transmission Range Selector Mode Enable Valve |
