Front Seat Cushion Frame Replacement (Manual)

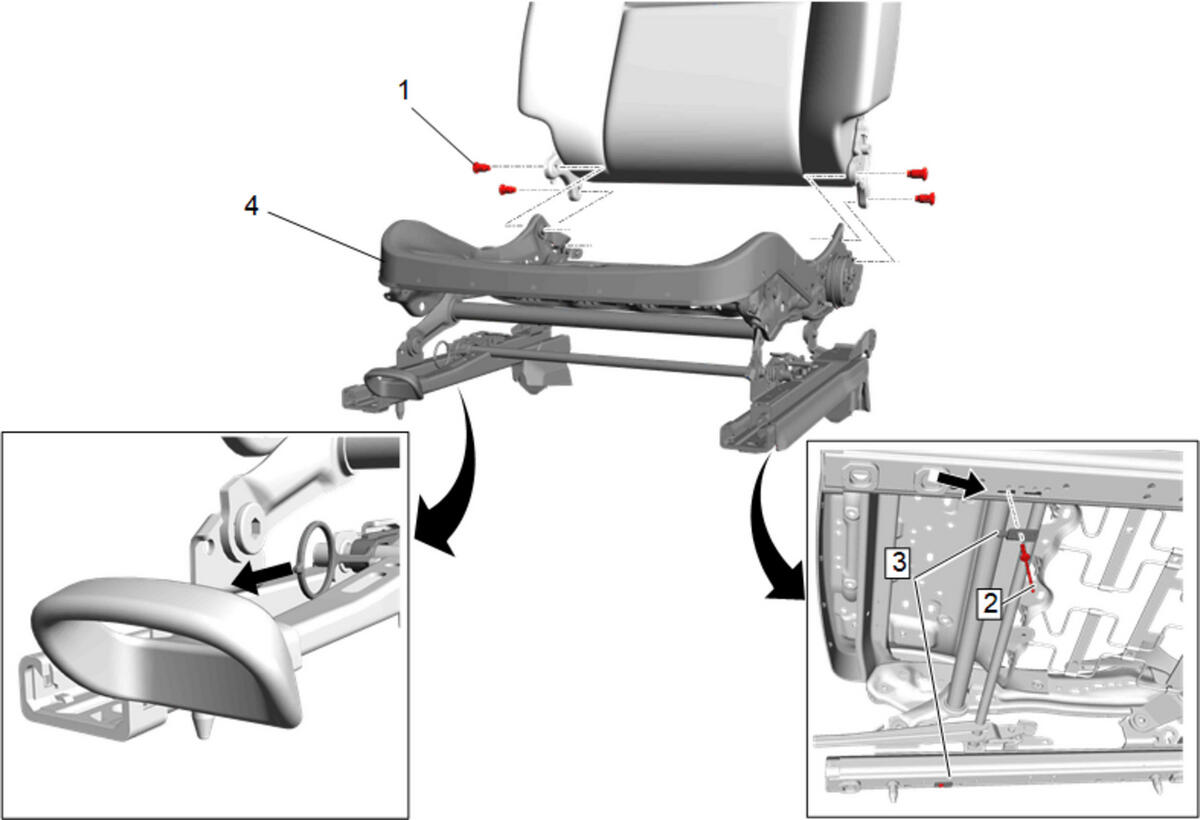

GM4877814Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

Preliminary Procedure Front Seat Cushion Cover and Pad Replacement
1 Driver or Passenger Seat Back Frame Bolt [ 4x ]
CAUTION:

Refer to Fastener Caution .

  1. Remove the seat back frame bolts.
  2. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

Tighten
45 N.m (33 lb-ft)
2 Front Seat Adjuster Stop Rivet [ 2x ]
Procedure
Install NEW rivets.
3 Front Seat Adjuster Stop [ 2x ]
NOTE:

When replacing the seat cushion frame, ensure NEW front seat adjuster stops and rivets are installed. Front seat adjuster stops are one time use.


Procedure
Install the front seat adjuster stops in the forward most position.
4 Driver or Passenger Seat Cushion Frame
NOTE:

When replacing the seat cushion frame, ensure the locking retainer is pulled forward to unlock the seat track.

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
