Engine Oil Cooler Replacement

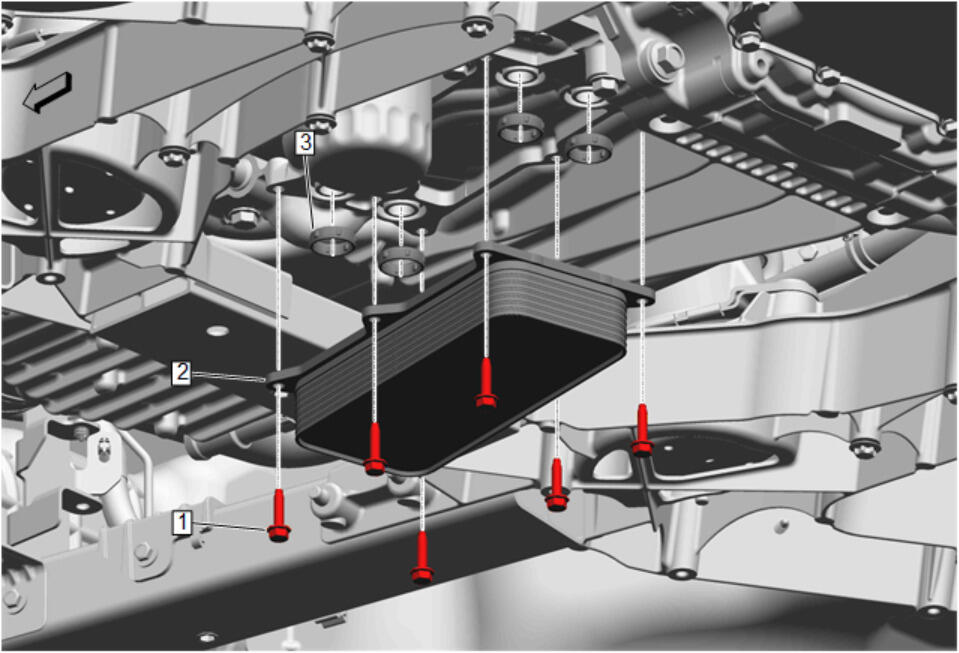

GM5374174Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Cooling System Draining and Filling (Static)
  2. Drain the engine oil. Engine Oil and Oil Filter Replacement
  3. Rear Cradle Shear Plate Replacement
1 Engine Oil Cooler Bolt [6x]
CAUTION:

Refer to Fastener Caution .


10 N.m (89 lb in)
2 Engine Oil Cooler
3 Engine Oil Cooler Seal [4x]
Procedure
Install NEW
