Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Remove the left body hinge pillar garnish molding (1). Body Hinge Pillar Garnish Molding Replacement

Courtesy of GENERAL MOTORS COMPANY

Remove the left windshield garnish molding (2). Windshield Garnish Molding Replacement

Courtesy of GENERAL MOTORS COMPANY

Remove the left instrument panel trim pad radio speaker opening cover (1). Instrument Panel Trim Pad Radio Speaker Opening Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

Remove the left radio front speaker grille molding (2). Radio Front Speaker Grille Molding Replacement

Courtesy of GENERAL MOTORS COMPANY

Remove the left instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (2) - Remove - Instrument Panel Knee Bolster Replacement

Courtesy of GENERAL MOTORS COMPANY

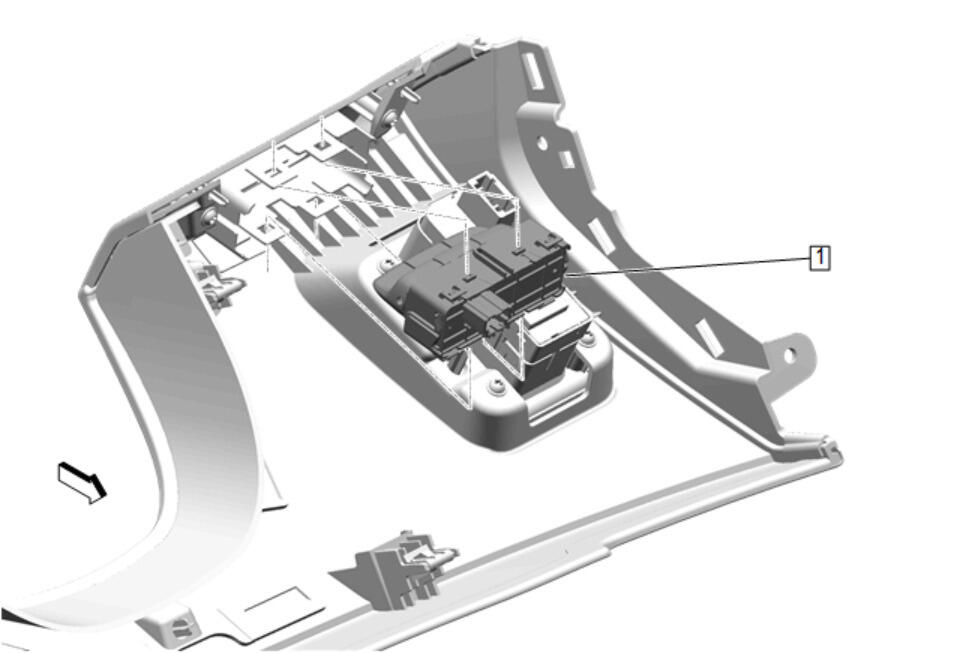

Release the tabs of the head-up display switch (1) from the instrument panel switch trim plate.
