Head-Up Display Replacement

Courtesy of GENERAL MOTORS COMPANY

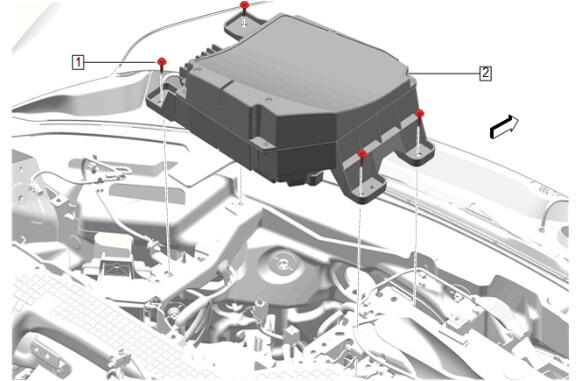

Callout	Component Name
Preliminary Procedure Instrument Panel Carrier Replacement Side Window Defogger Outlet Duct Replacement - Left Side
1	Head-Up Display Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Head-Up Display Procedure Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure

Head-Up Display Bolt [4x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Head-Up Display
Procedure
Disconnect the electrical connectors.
