Engine Oil Pressure Sensor Replacement (LT4)

Courtesy of GENERAL MOTORS COMPANY

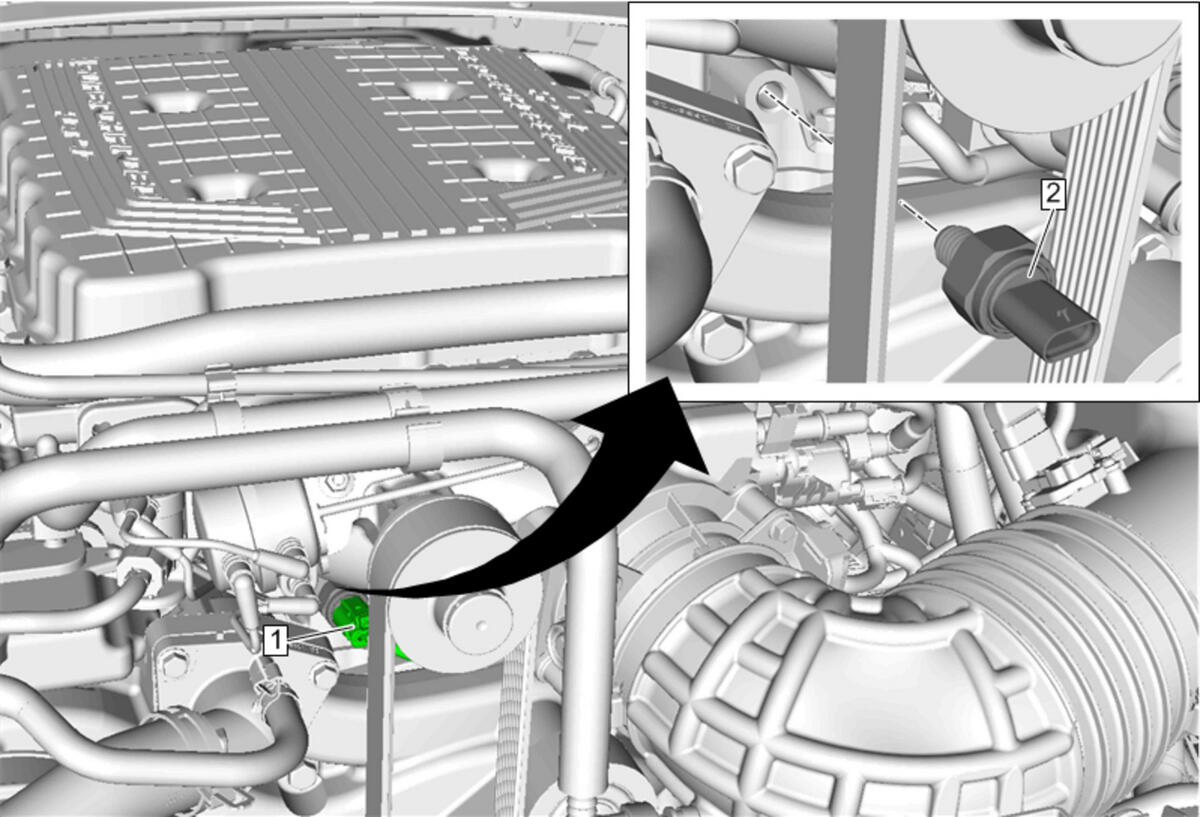

Callout	Component Name
1	Electrical Connector
2	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure  Inspect the O-ring and replace if necessary. Tighten  35 N.m (26 lb ft)
