Home >> Chevrolet >> 2021 >> Camaro SS, 2D Convertible, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Driver Information

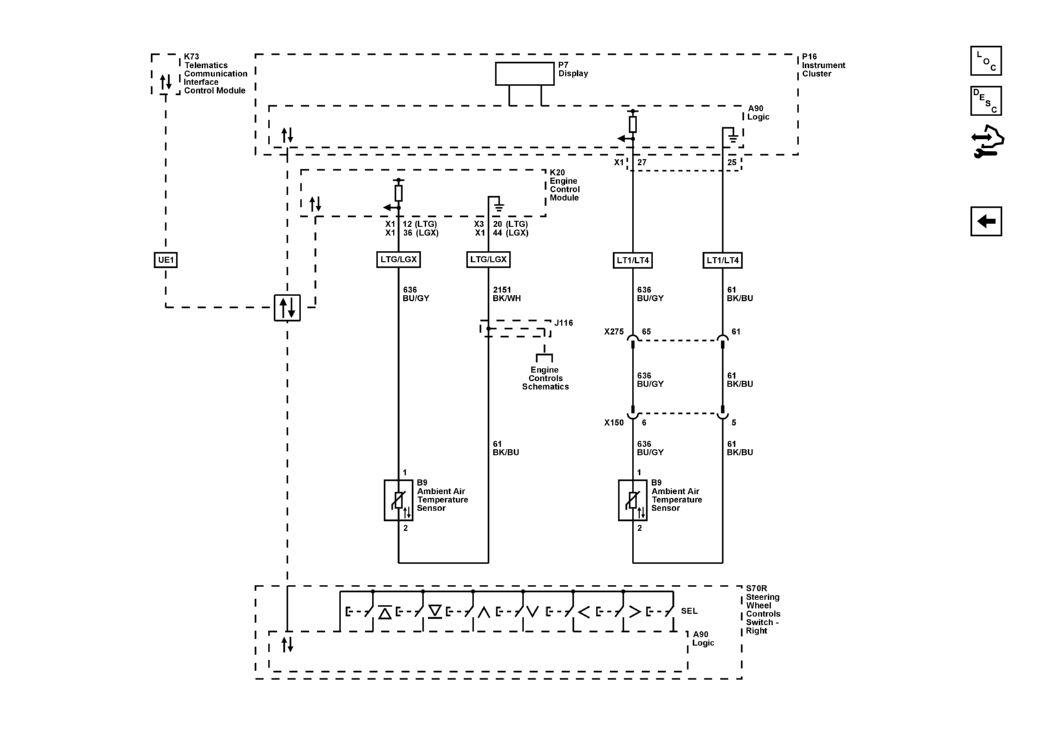

Driver Information

GM5457249Courtesy of GENERAL MOTORS COMPANY
