Installation Procedure

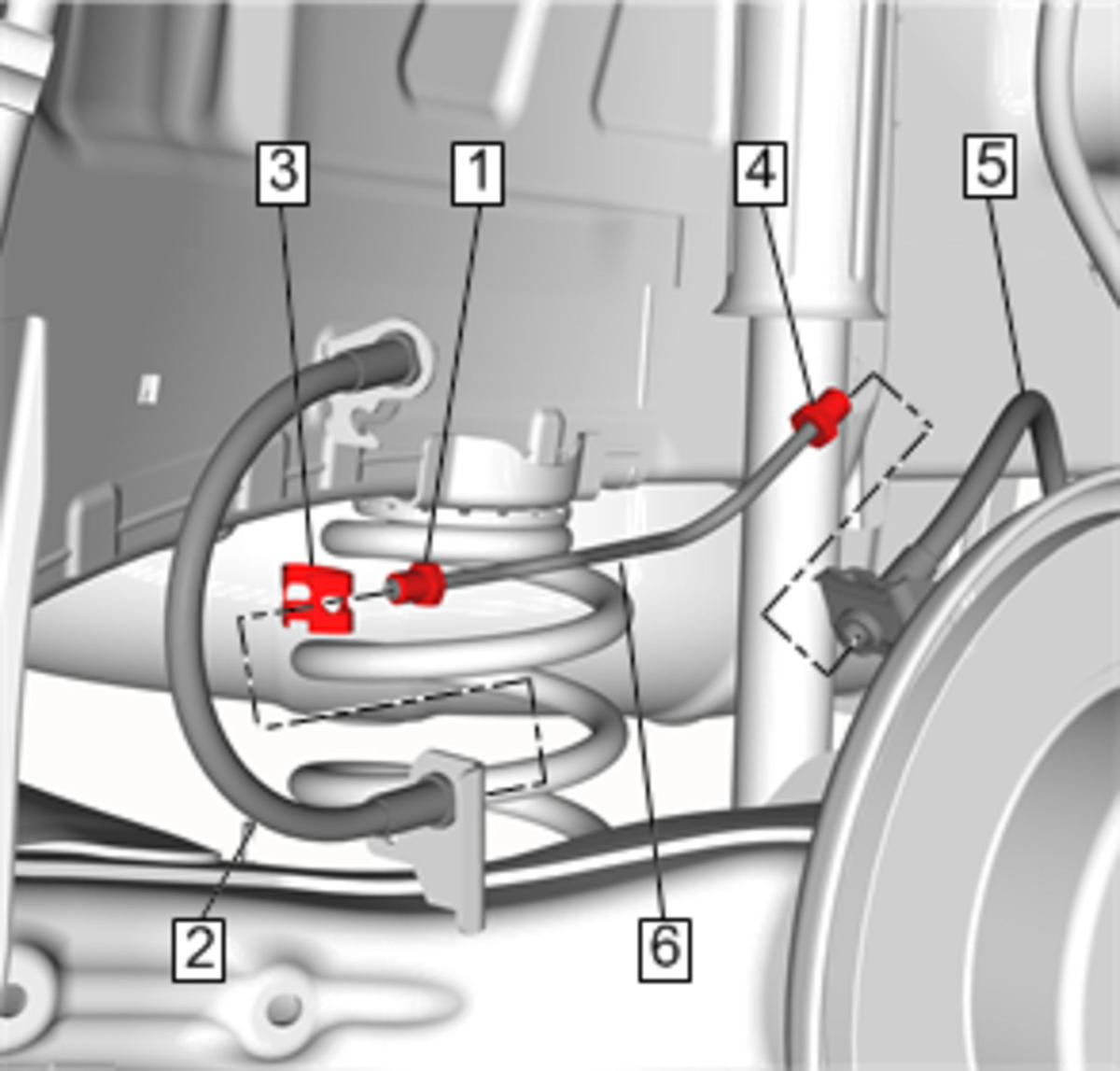

Rear Brake Hose Retainer (3) - Install
- Rear Brake Pipe (6) @ Vehicle - Install
- Rear Brake Pipe Fitting (4) @ Rear Brake Front Hose (5) - Install and tighten 18 N.m (13 lb-ft)
- Rear Brake Pipe Fitting (1) @ Rear Brake Hose (2) - Install and tighten 18 N.m (13 lb-ft)
- Bleed the brake system. Hydraulic Brake System Bleeding
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Lower the vehicle.
CAUTION:
Refer to Fastener Caution .
