Installation Procedure

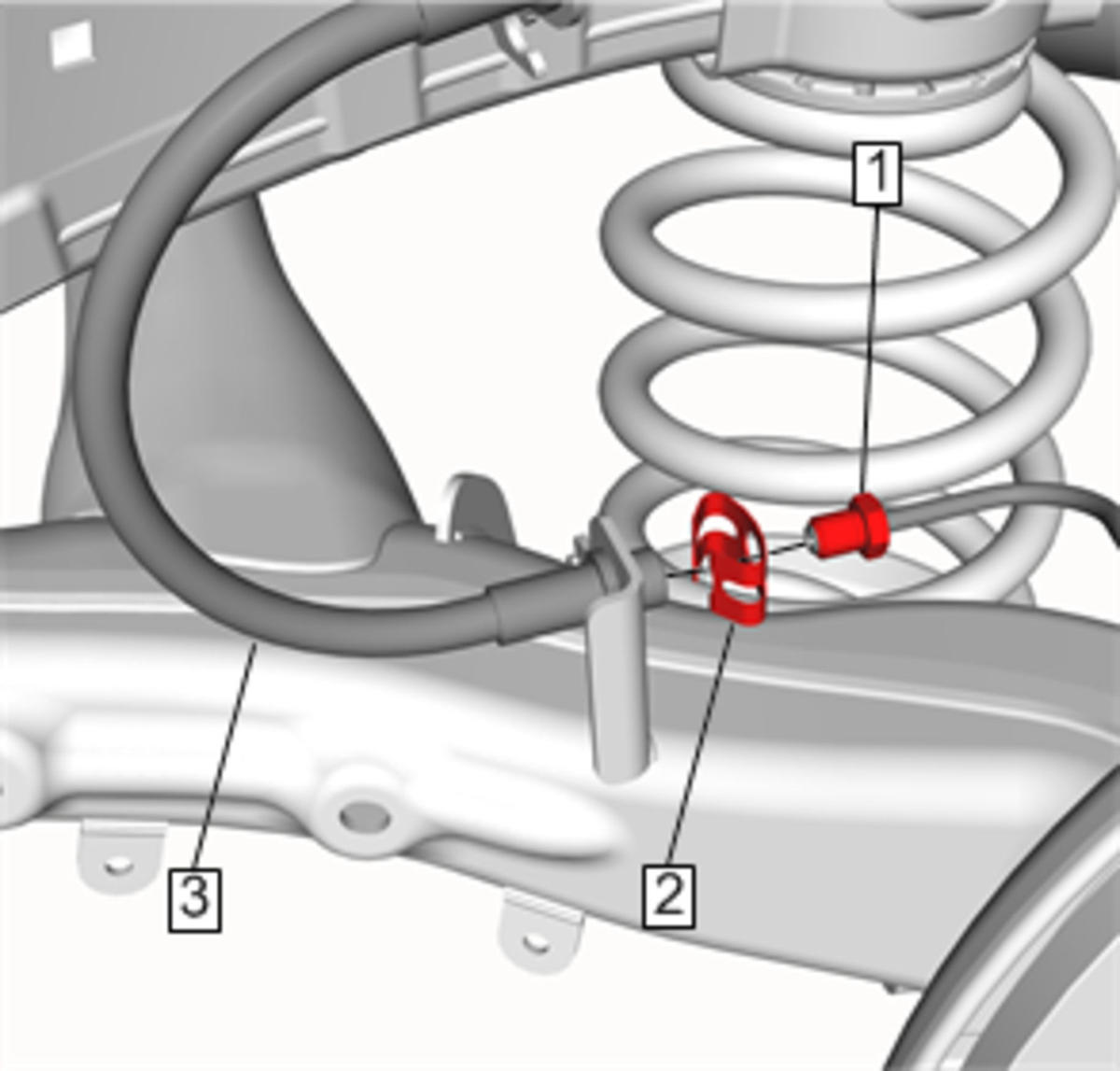

  1. GM4530359Courtesy of GENERAL MOTORS COMPANY

    Rear Brake Hose (3) @ Vehicle - Install

  2. Rear Brake Hose Retainer (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Rear Brake Pipe Fitting (1) @ Rear Brake Hose (3) - Install and tighten 18 N.m (13 lb-ft)

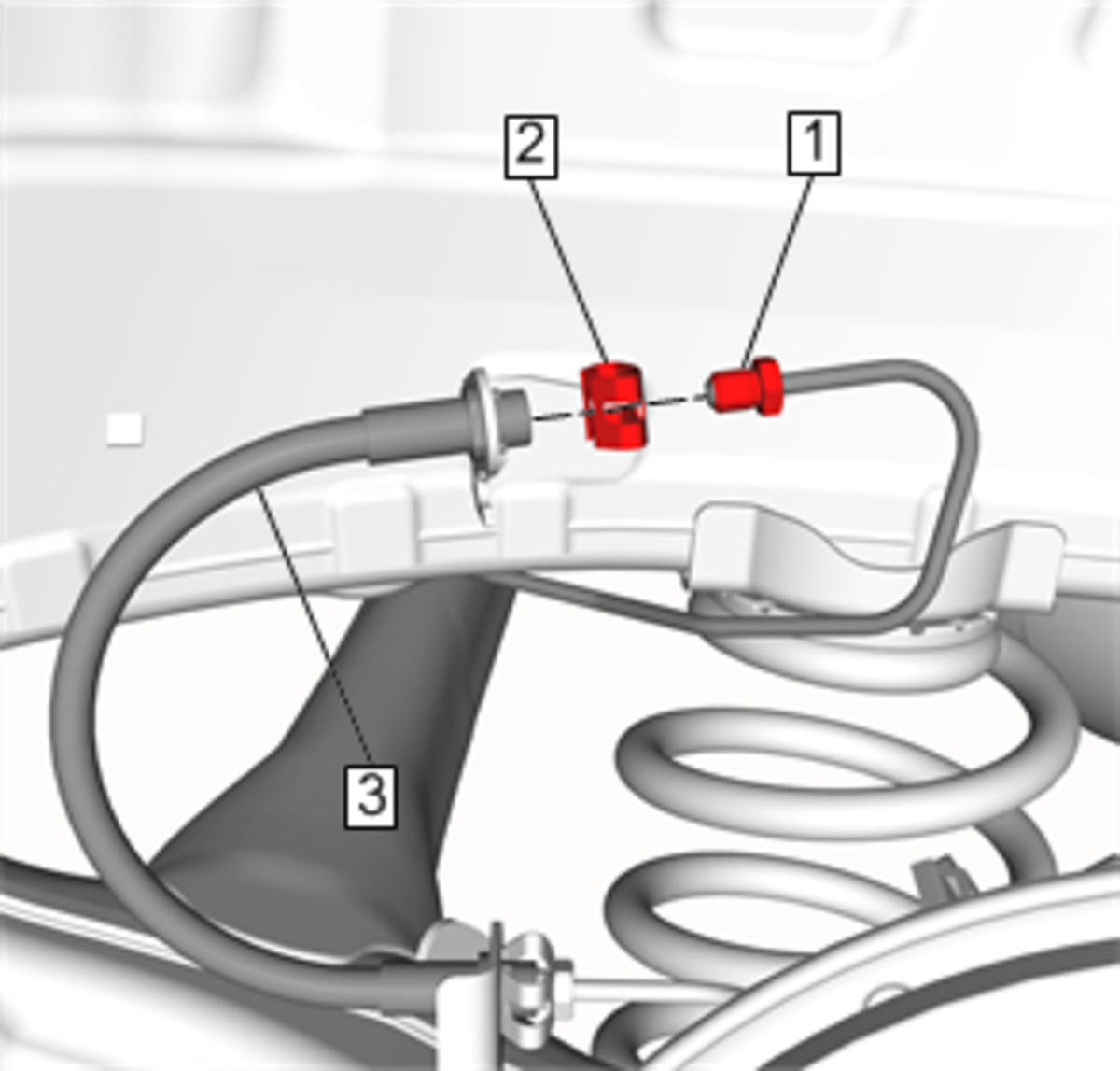

  4. GM4530358Courtesy of GENERAL MOTORS COMPANY

    Rear Brake Hose Retainer (2) - Install

  5. Rear Brake Pipe Fitting (1) @ Rear Brake Hose (3) - Install and tighten 18 N.m (13 lb-ft)
  6. Rear Wheel Speed Sensor Harness @ Rear Brake Hose - Clip
  7. Bleed the brake system. Hydraulic Brake System Bleeding
  8. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
  9. Lower the vehicle.
