Installation Procedure

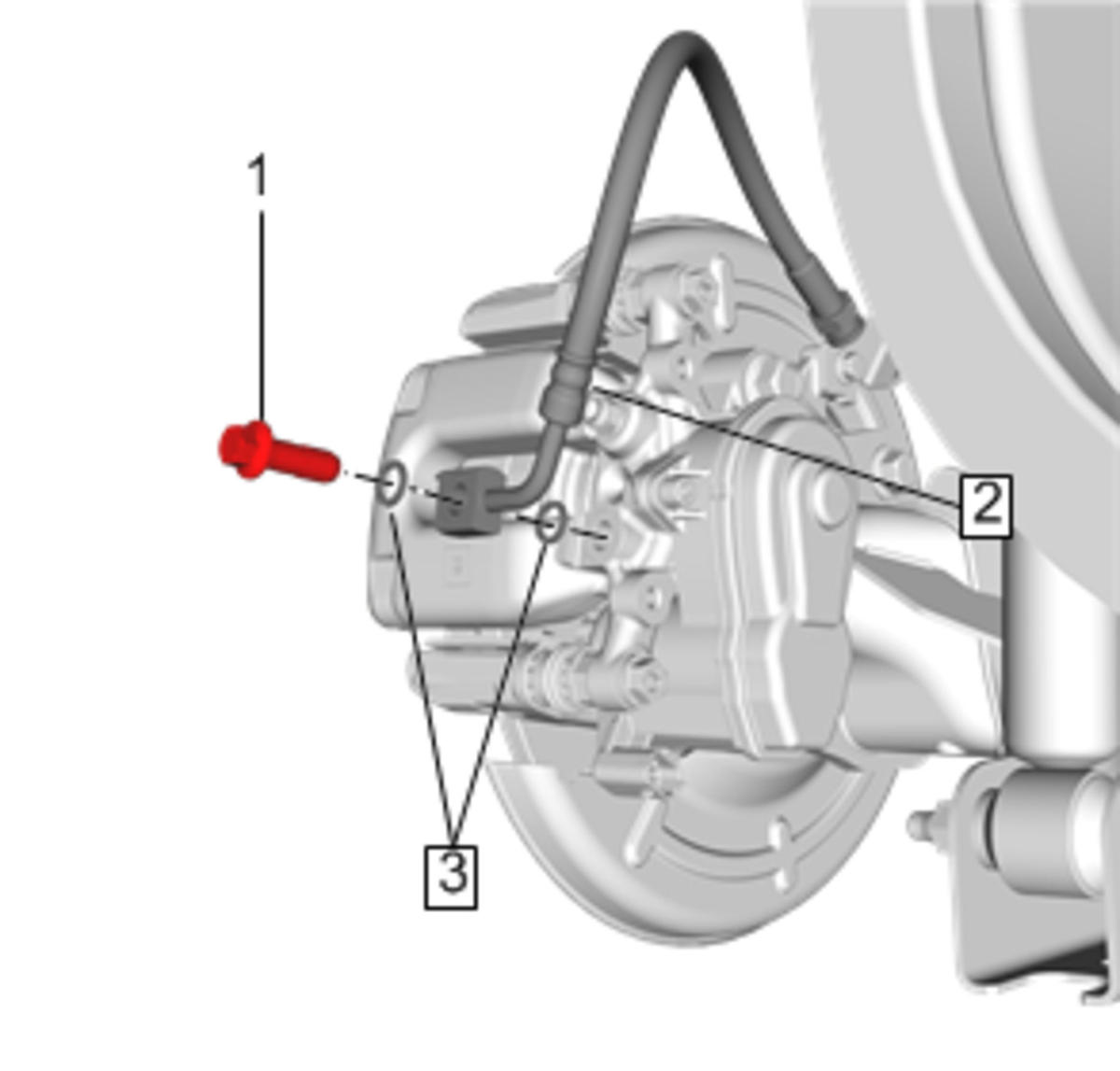

GM4530385Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do NOT reuse the brake hose washers.

  1. Rear Brake Hose Washer (3) - Install NEW [ 2x ]
  2. Rear Brake Front Hose (2) @ Rear Brake Caliper - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Rear Brake Hose Fitting Bolt (1) @ Rear Brake Caliper - Install and tighten 40 N.m (30 lb-ft)

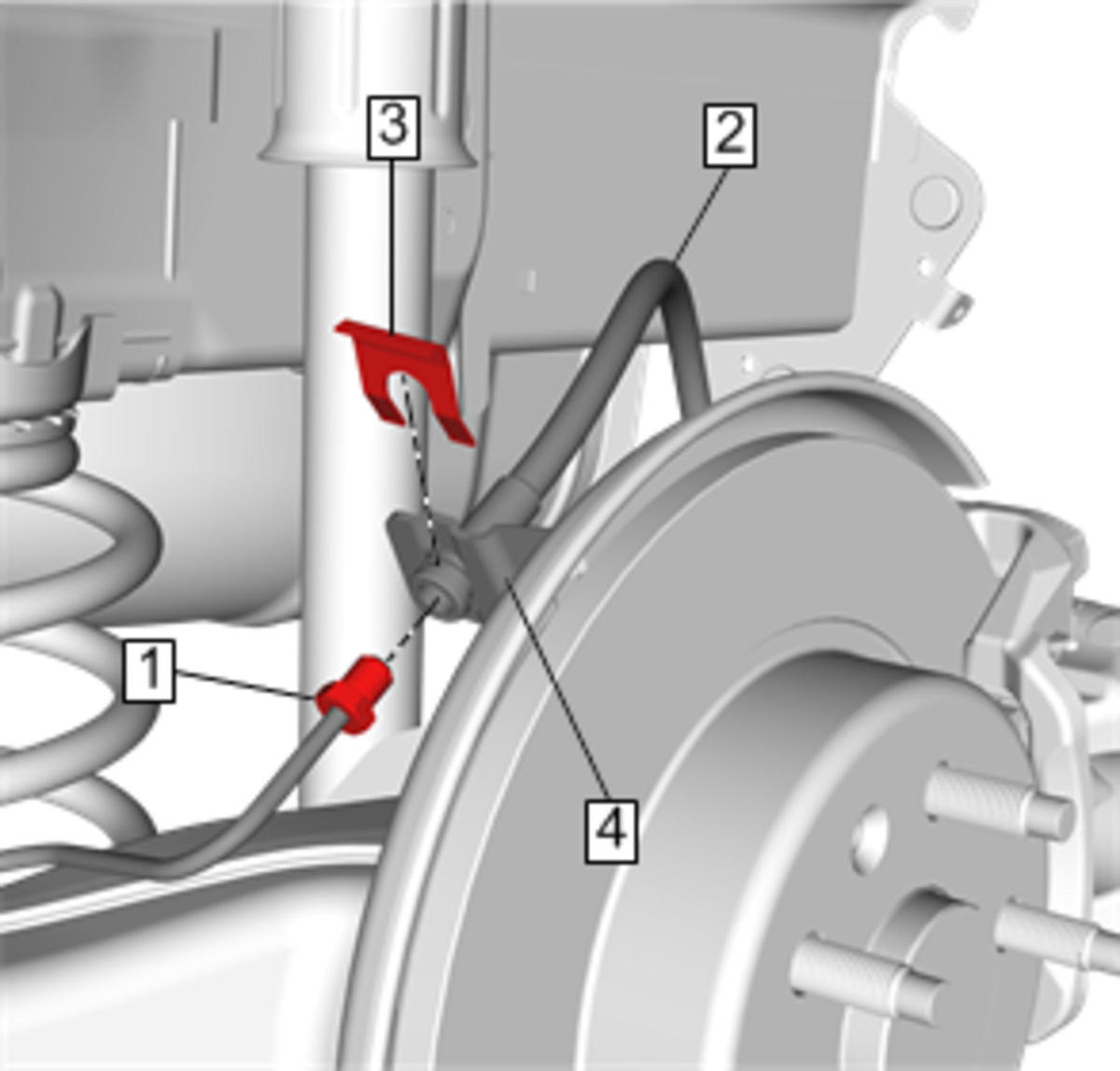

  4. GM4530384Courtesy of GENERAL MOTORS COMPANY

    Rear Brake Hose Clip (3) @ Rear Brake Hose Bracket (4) - Install

  5. Rear Brake Pipe Fitting (1) @ Rear Brake Front Hose (2) - Install and tighten 18 N.m (13 lb-ft)
  6. Bleed the brake system. Hydraulic Brake System Bleeding
  7. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
  8. Lower the vehicle.
