Installation Procedure

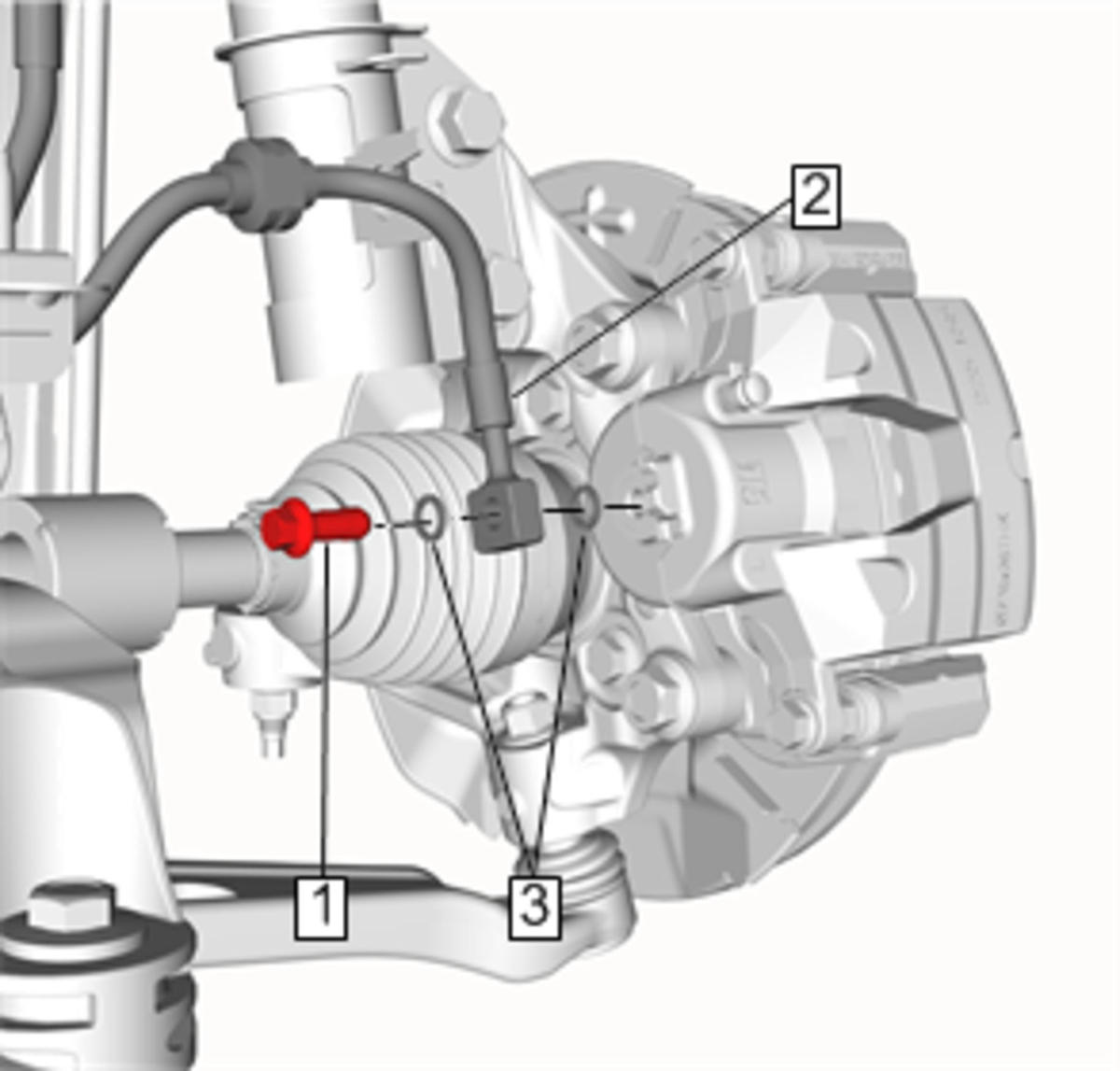

- Front Brake Hose Washer (3) - Install NEW [ 2x ]
- Front Brake Hose (2) @ Front Brake Caliper - Install
- Front Brake Hose Fitting Bolt (1) @ Front Brake Caliper - Install and tighten 40 N.m (30 lb-ft)

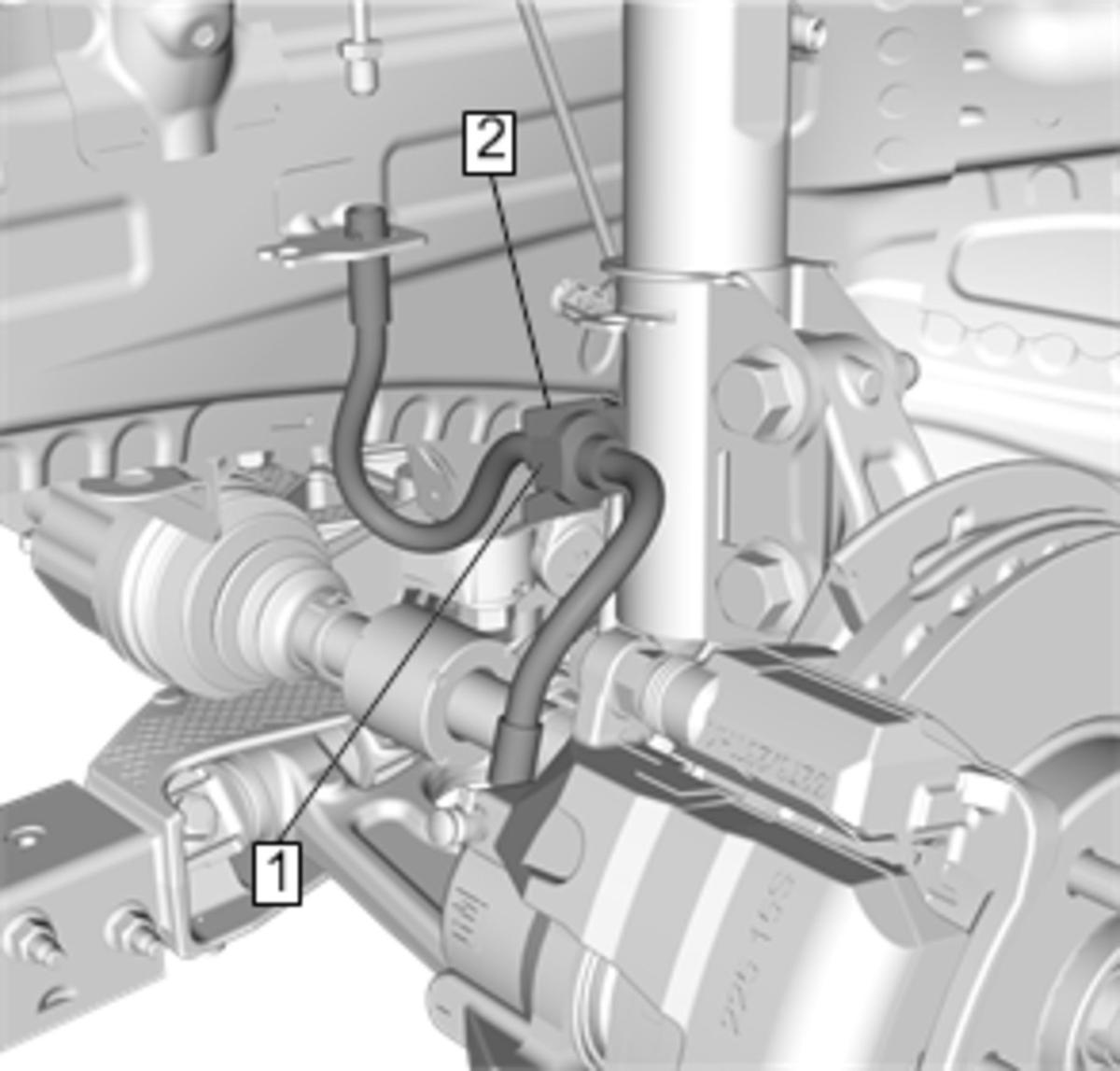

Front Brake Hose (1) @ Front Suspension Strut Mounted Bracket (2) - Install
Front Brake Hose Retainer (2) - Install

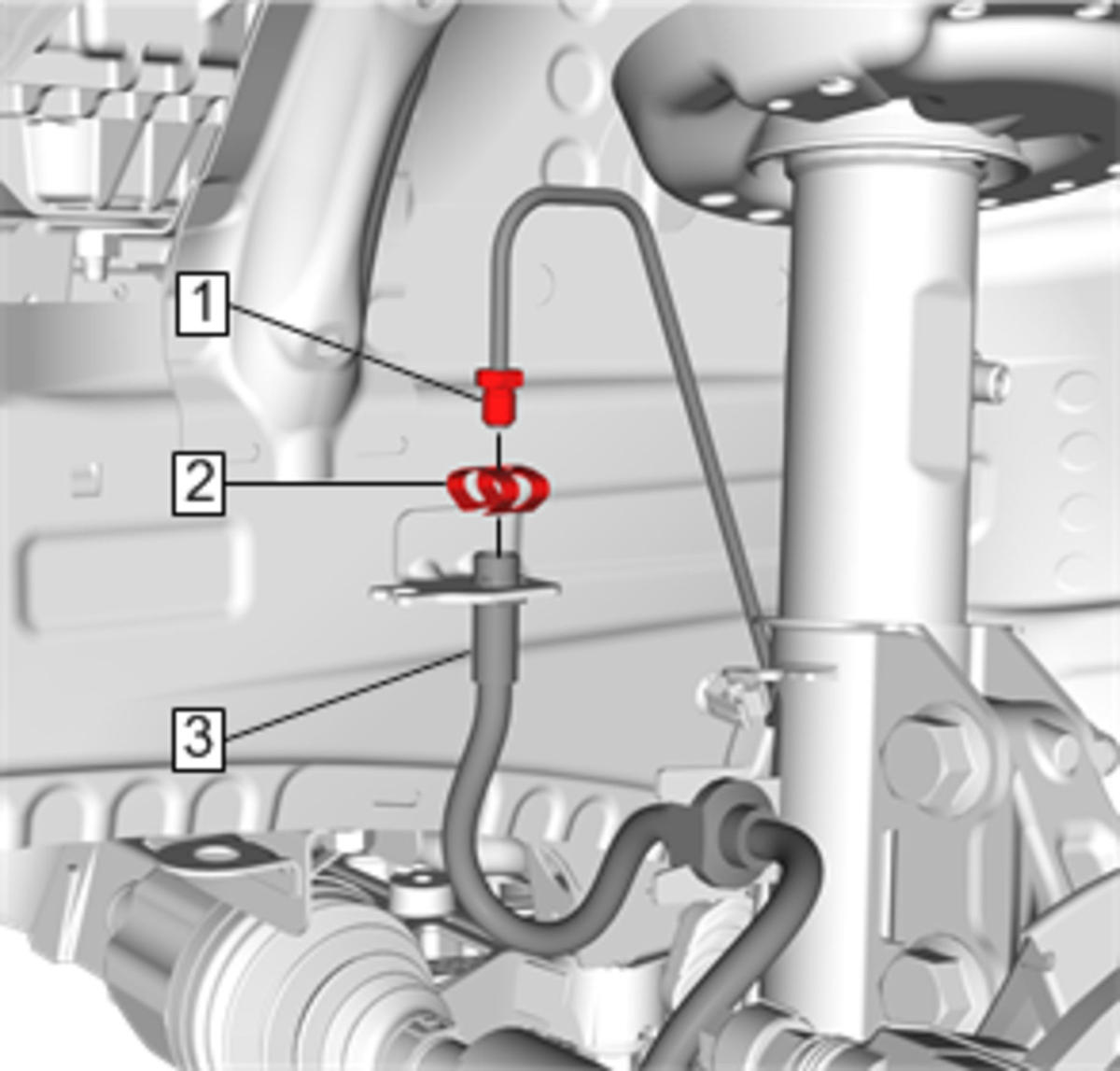

- Front Brake Pipe Fitting (1) @ Front Brake Hose (3) - Install and tighten 18 N.m (13 lb-ft)
- Bleed the brake system. Hydraulic Brake System Bleeding
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
- Lower the vehicle.
NOTE:
Do NOT reuse the brake hose washers.
CAUTION:
Refer to Fastener Caution .
