Installation Procedure
Brake Pressure Modulator Valve Rear Pipe (1) @ Vehicle - Install

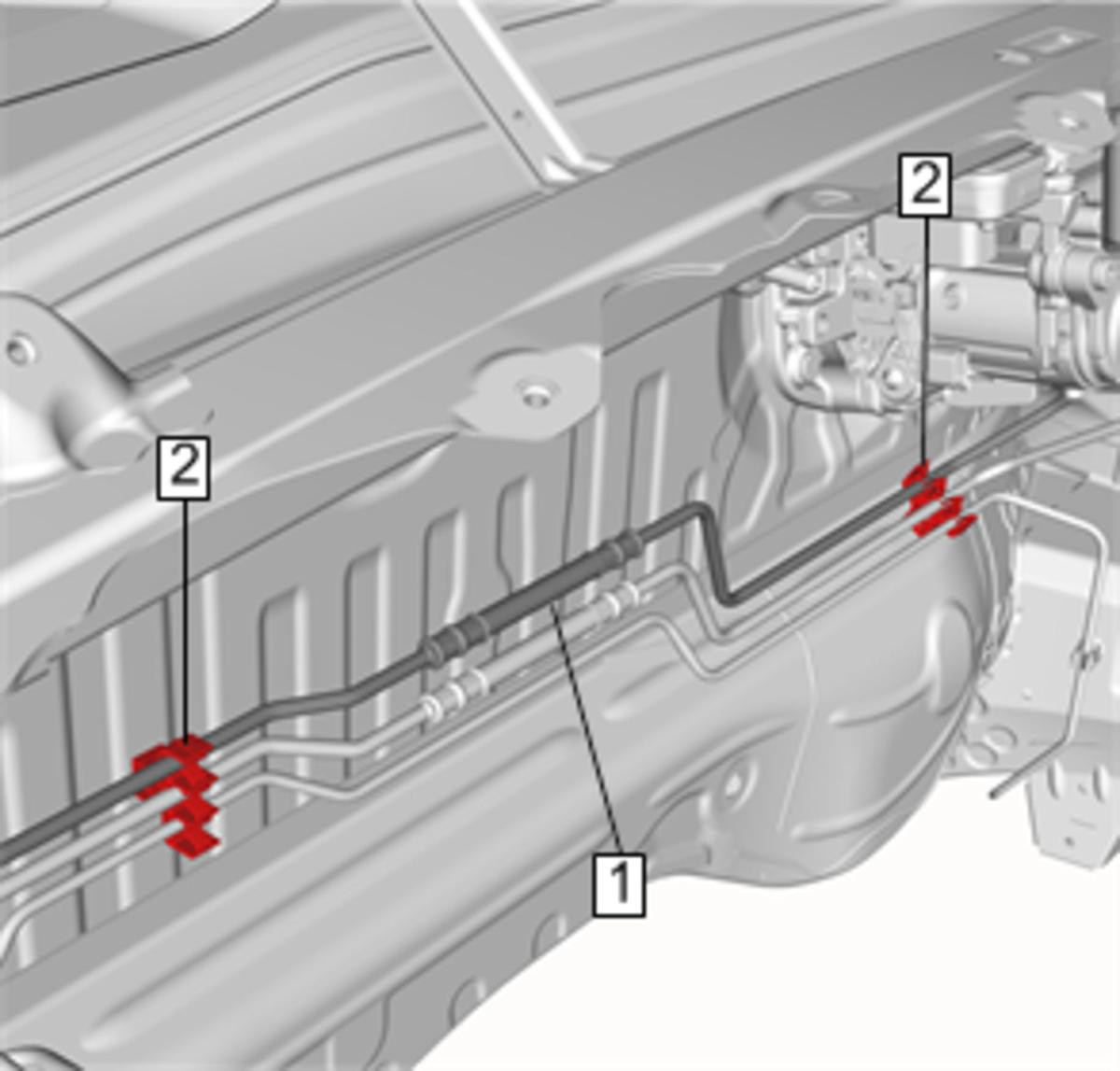

- Brake Pressure Modulator Valve Rear Pipe (1) @ Brake Pipe Clip (2) - Install [ 2x ]
- CAUTION:
Refer to Fastener Caution .

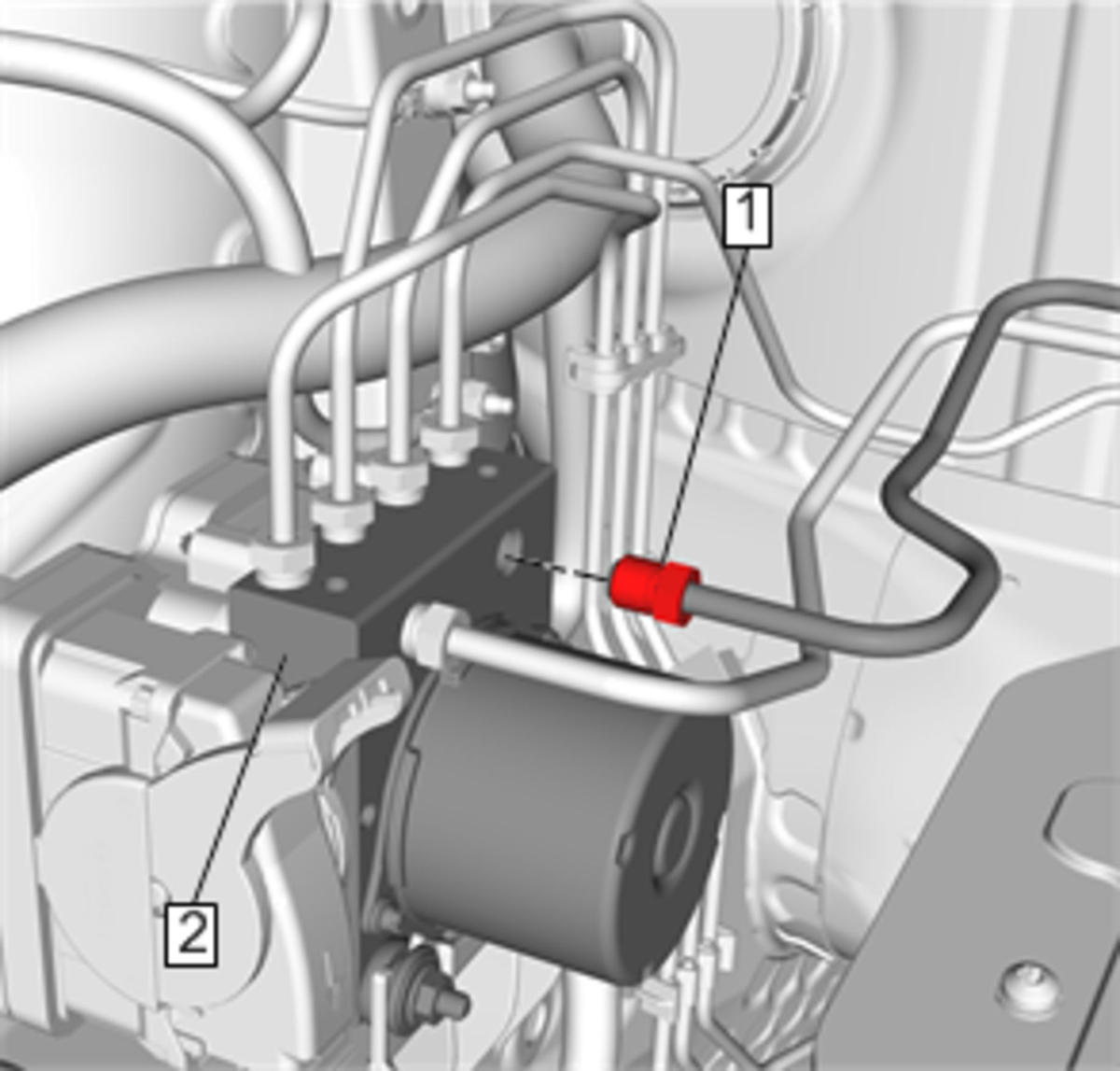

Brake Pressure Modulator Valve Rear Pipe Fitting (1) @ Brake Pressure Modulator Valve (2) - Install and tighten 25 N.m (18 lb-ft)
Drive Motor Battery Positive and Negative Cable (1) - Install - Drive Motor Battery Positive and Negative Cable Replacement
- Install the heater surge tank to the heater surge tank bracket. Heater Coolant Surge Tank Replacement

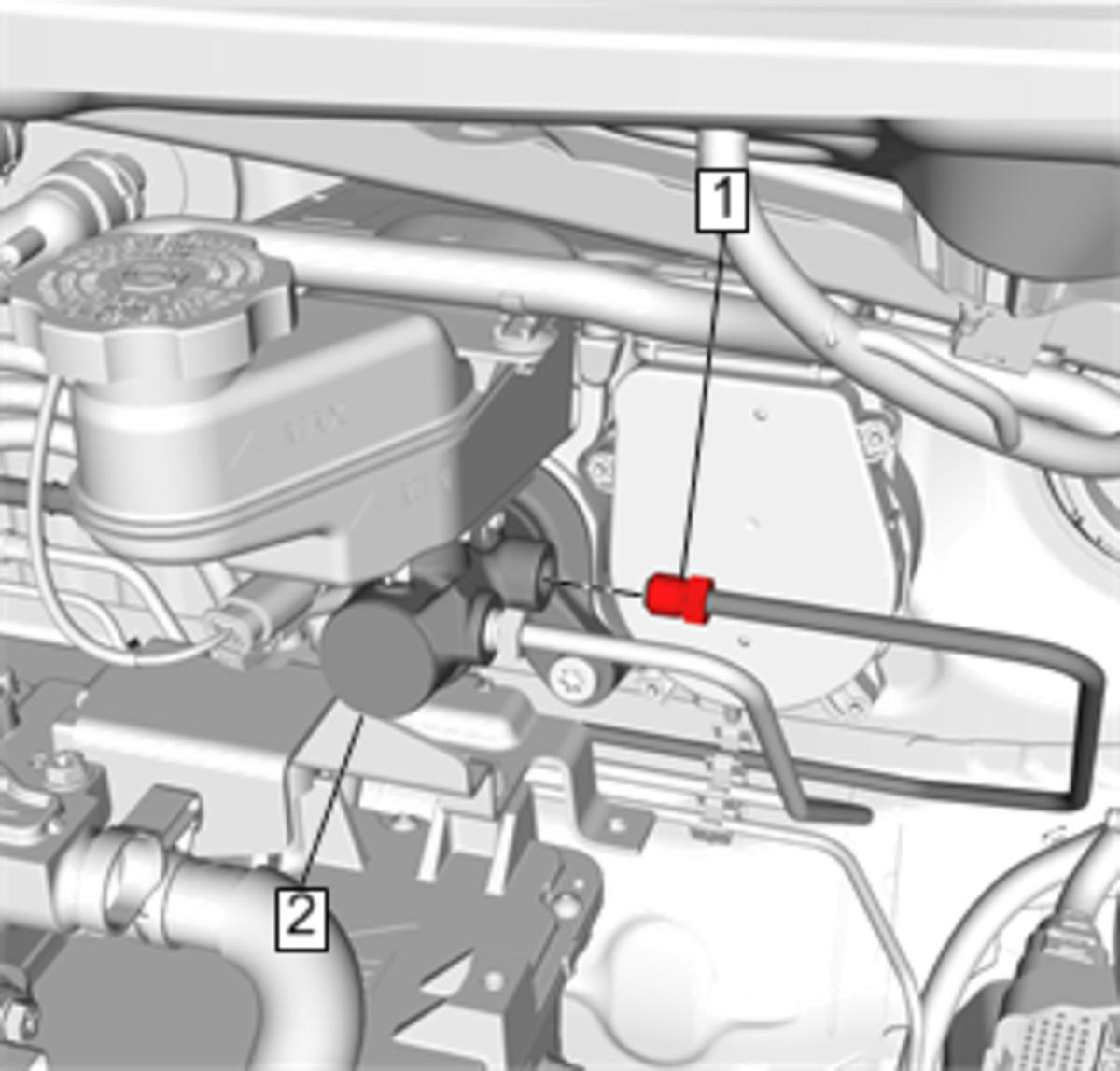

Brake Pressure Modulator Valve Rear Pipe Fitting (1) @ Brake Master Cylinder (2) - Install and tighten 25 N.m (18 lb-ft)
- Engine Control Module @ Vehicle - Install - Engine Control Module Replacement
- Enable the high voltage system. High Voltage Enabling
- Bleed the brake system. Hydraulic Brake System Bleeding
