Installation Procedure
- Brake Fluid Level Indicator Switch @ Brake Master Cylinder Reservoir - Install - Brake Fluid Level Indicator Switch Replacement
Lubricate the brake master cylinder reservoir seals with GM approved brake fluid from a clean, sealed, brake fluid container.

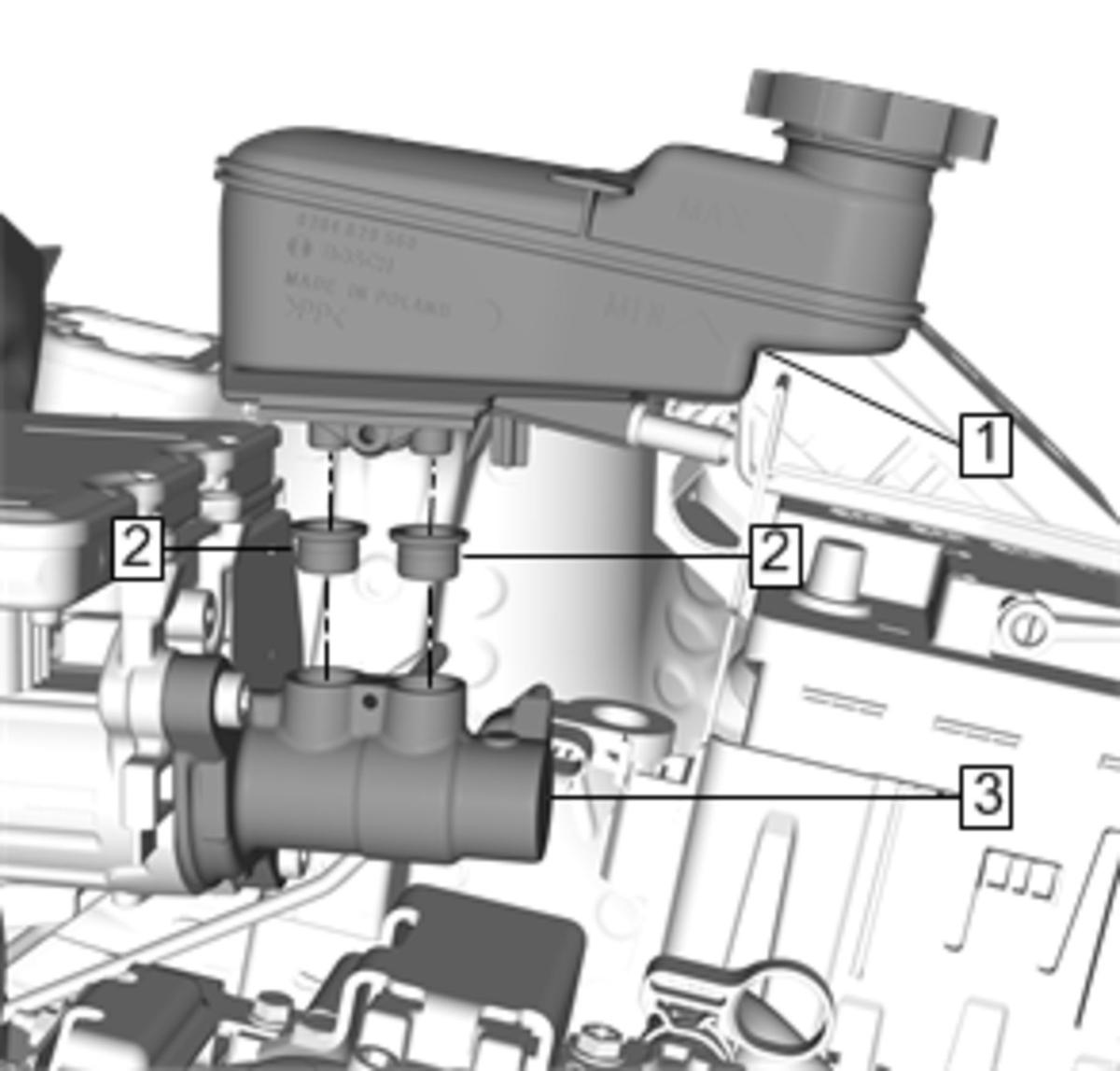

- Brake Master Cylinder Reservoir Seal (2) @ Brake Master Cylinder (3) - Install NEW [ 2x ]
- Brake Master Cylinder Reservoir (1) @ Brake Master Cylinder (3) - Install
- CAUTION:
Refer to Fastener Caution .

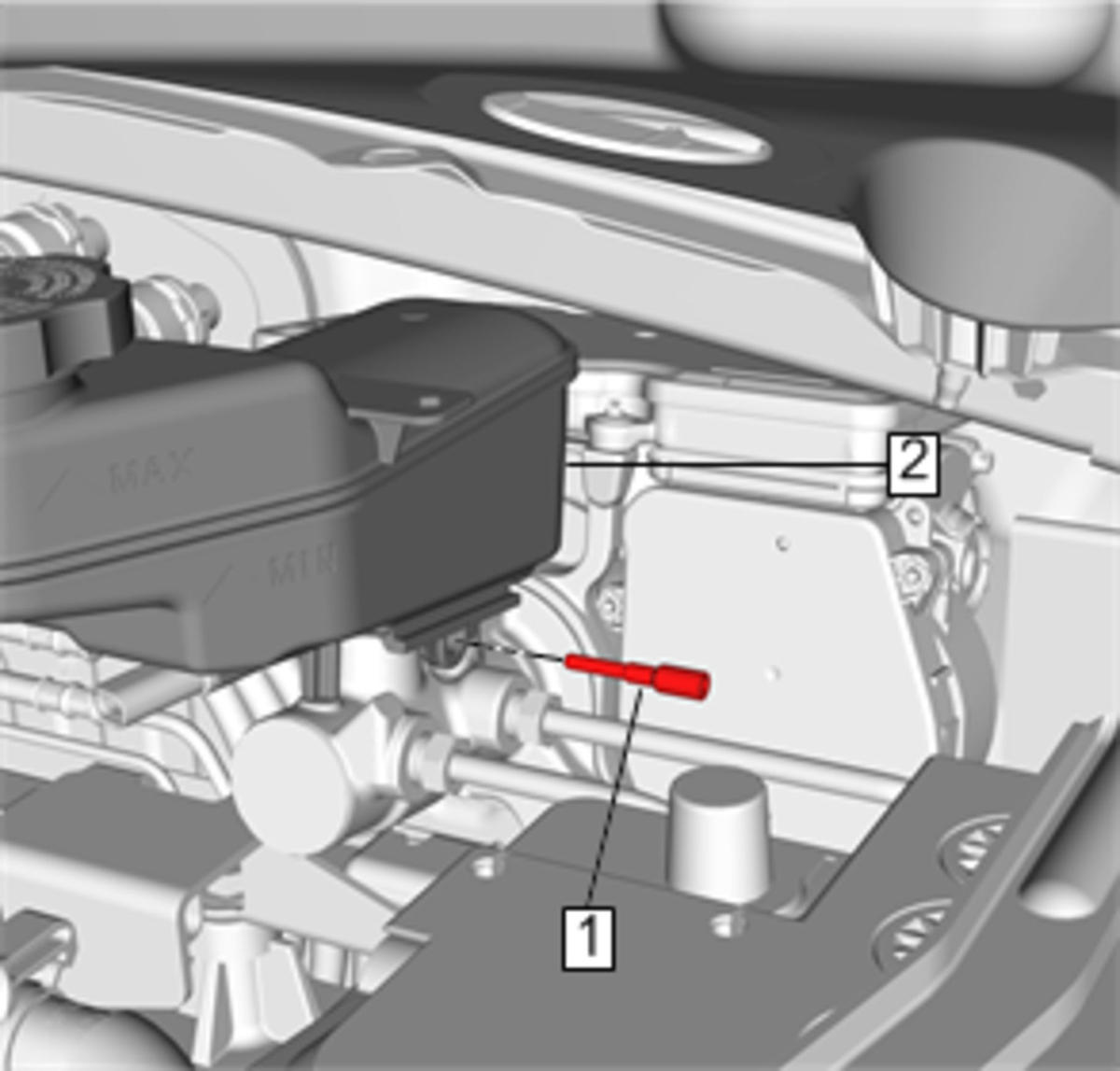

Brake Master Cylinder Reservoir Pin (1) @ Brake Master Cylinder Reservoir (3) - Install and tighten 7 N.m (62 lb/in)
Body Wiring Harness (2) @ Brake Master Cylinder Reservoir (3) - Install
- Clip (1) @ Brake Master Cylinder Reservoir (3) - Install [ 2x ]
Electrical Connector (1) @ Brake Fluid Level Indicator Switch (2) - Connect
- Engine Control Module @ Vehicle - Install - Engine Control Module Replacement
- Bleed the brake system. Hydraulic Brake System Bleeding
