Installation Procedure

  1. GM4530354Courtesy of GENERAL MOTORS COMPANY

    Brake Fluid Level Indicator Switch (1) @ Brake Master Cylinder Reservoir (2) - Install

  2. Ensure the brake fluid level indicator switch locking tab is fully engaged.

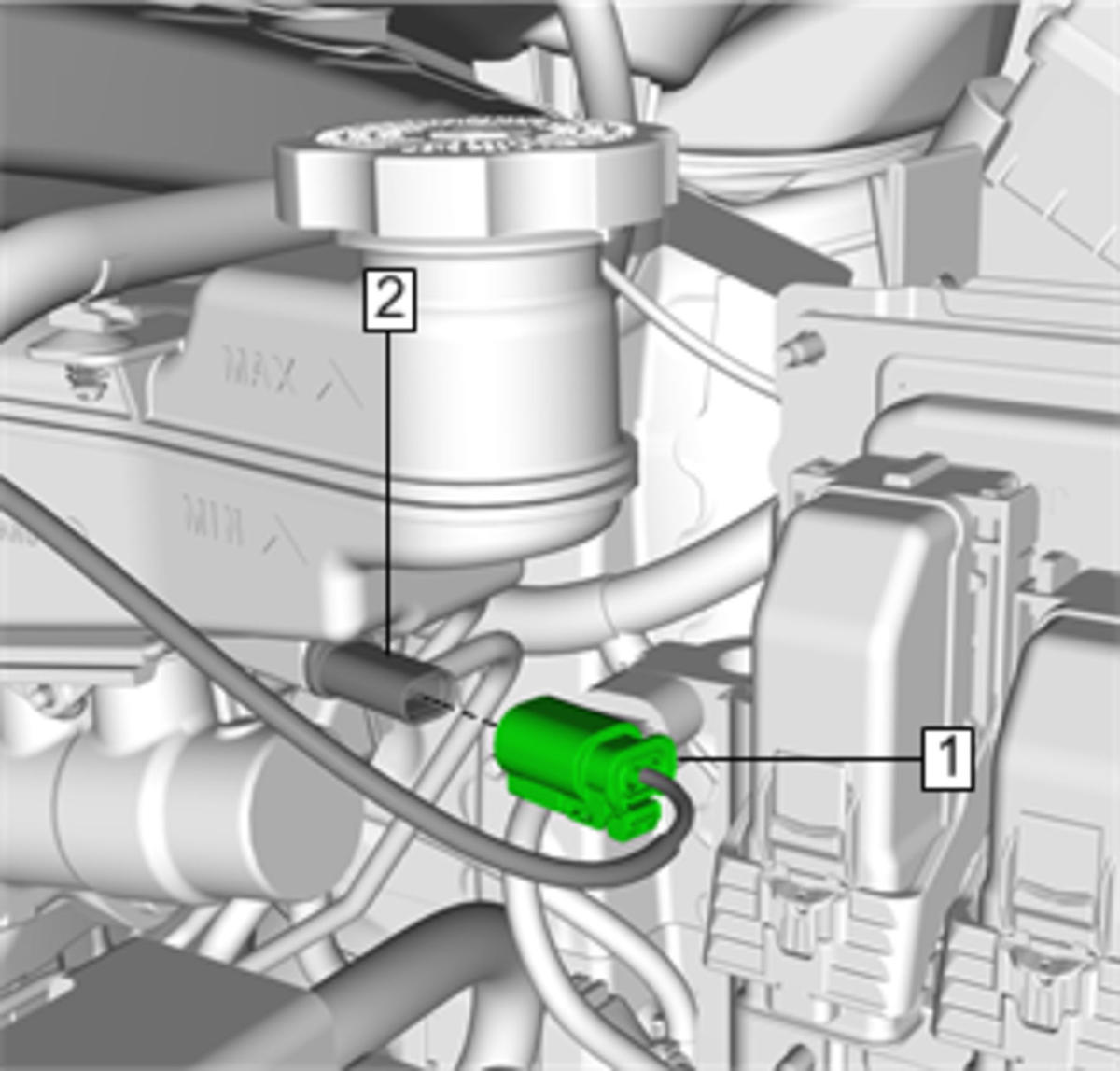

  3. GM4530353Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Brake Fluid Level Indicator Switch (2) - Connect
