Rear Brake Shield Replacement

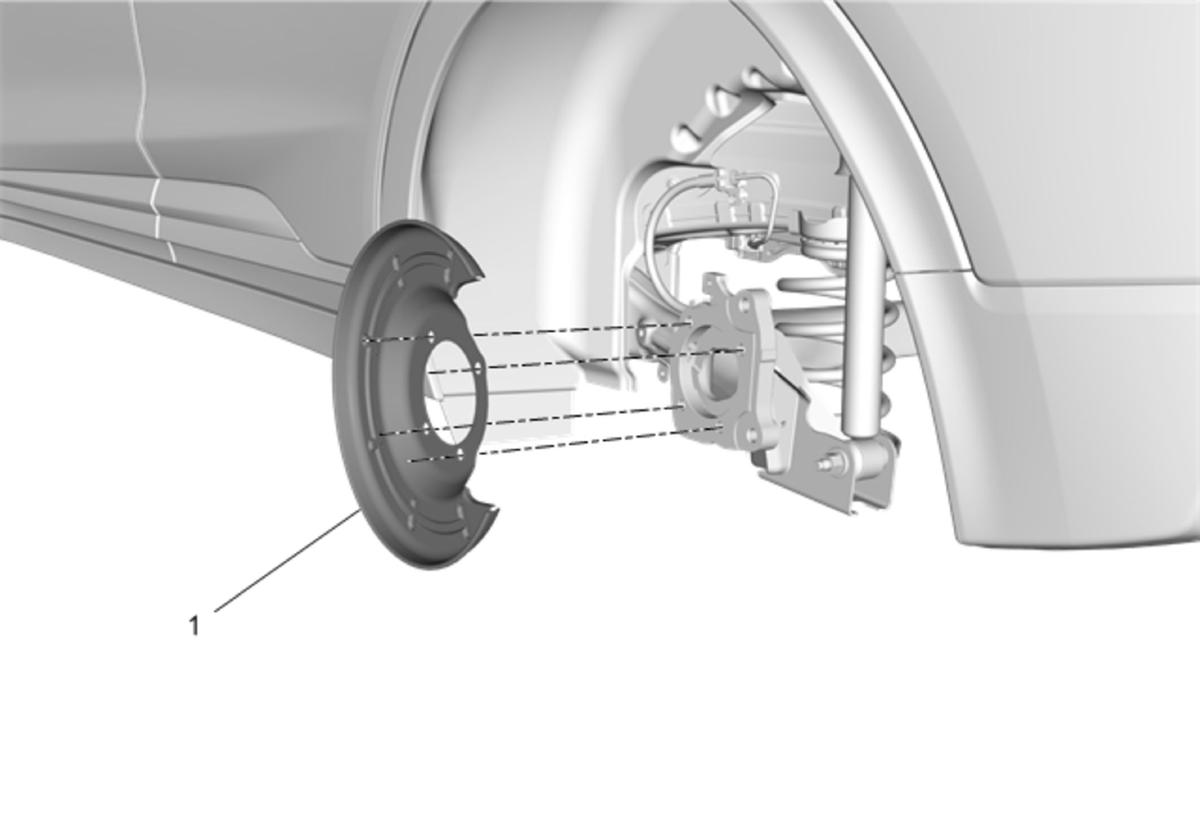

GM4525451Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Brake Dust Warning .

Preliminary Procedures

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation
  3. Rear Wheel Bearing and Hub Replacement
1 Rear Brake Shield

Procedure

  1. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
  2. Lower the vehicle.
