Front Brake Shield Replacement

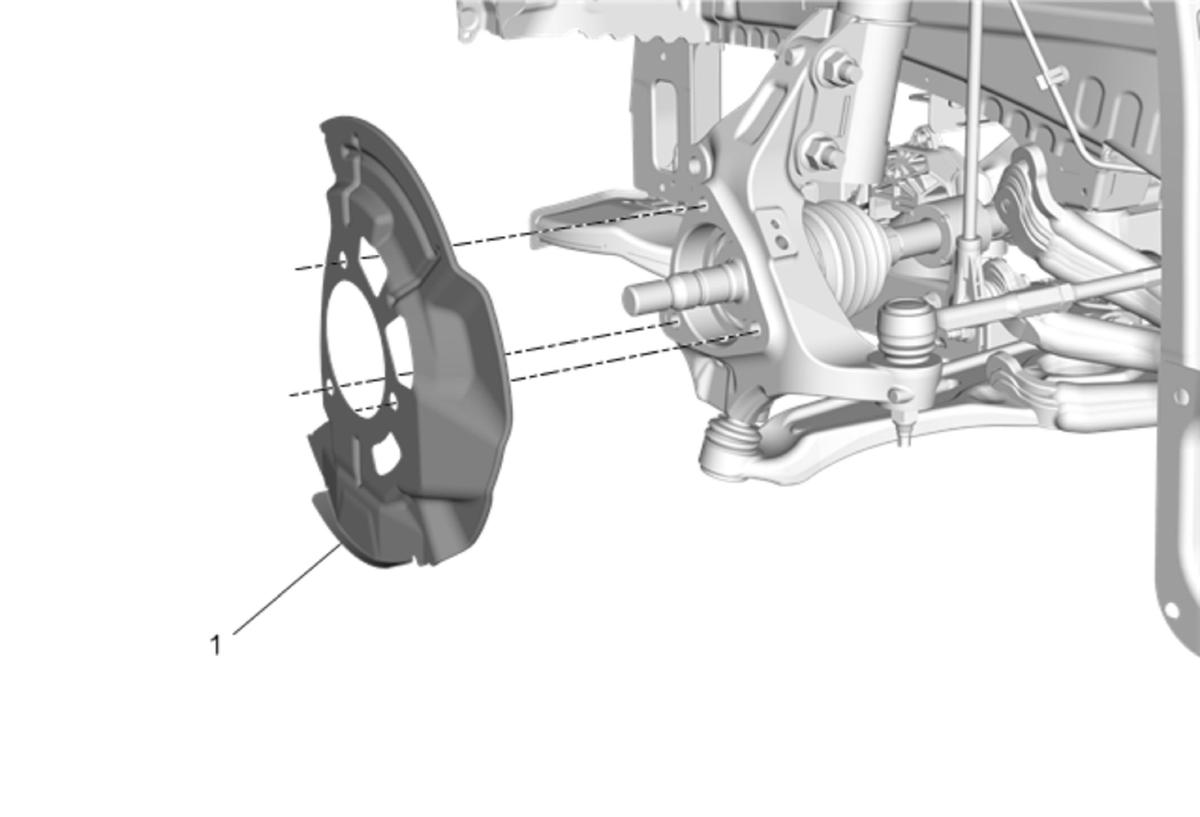

GM4525420Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Brake Dust Warning .

Preliminary Procedures

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
  3. Front Wheel Bearing and Hub Replacement
1 Front Brake Shield

Procedure

  1. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
  2. Lower the vehicle.
