Rear Side Door Upper Hinge and Lower Hinge Replacement

Courtesy of GENERAL MOTORS COMPANY

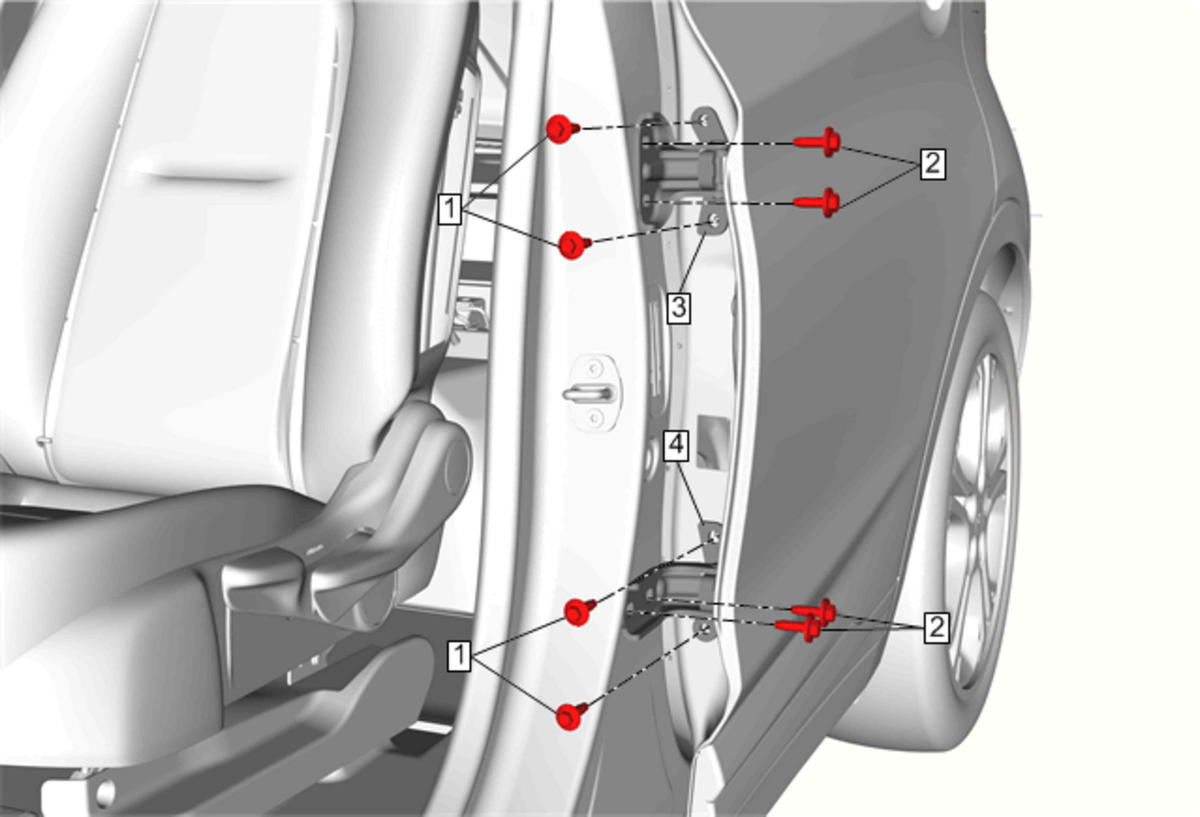

Callout	Component Name
Preliminary Procedure Mark the location of the old hinges.
1	Rear Side Door Hinge Bolt-Door Side [ 4x ] CAUTION: Fastener Caution Tighten 25 N.m (18 lb-ft)
2	Rear Side Door Hinge Bolt-Body Side [ 4x ] Tighten 32 N.m (24 lb-ft)
3	Rear Side Door Upper Hinge
4	Rear Side Door Lower Hinge Procedure Leave the rear door closed. And open the front door. Replace one hinge at a time. Adjust the rear side door as needed. Rear Side Door Adjustment
