Rear Side Door Replacement

Courtesy of GENERAL MOTORS COMPANY

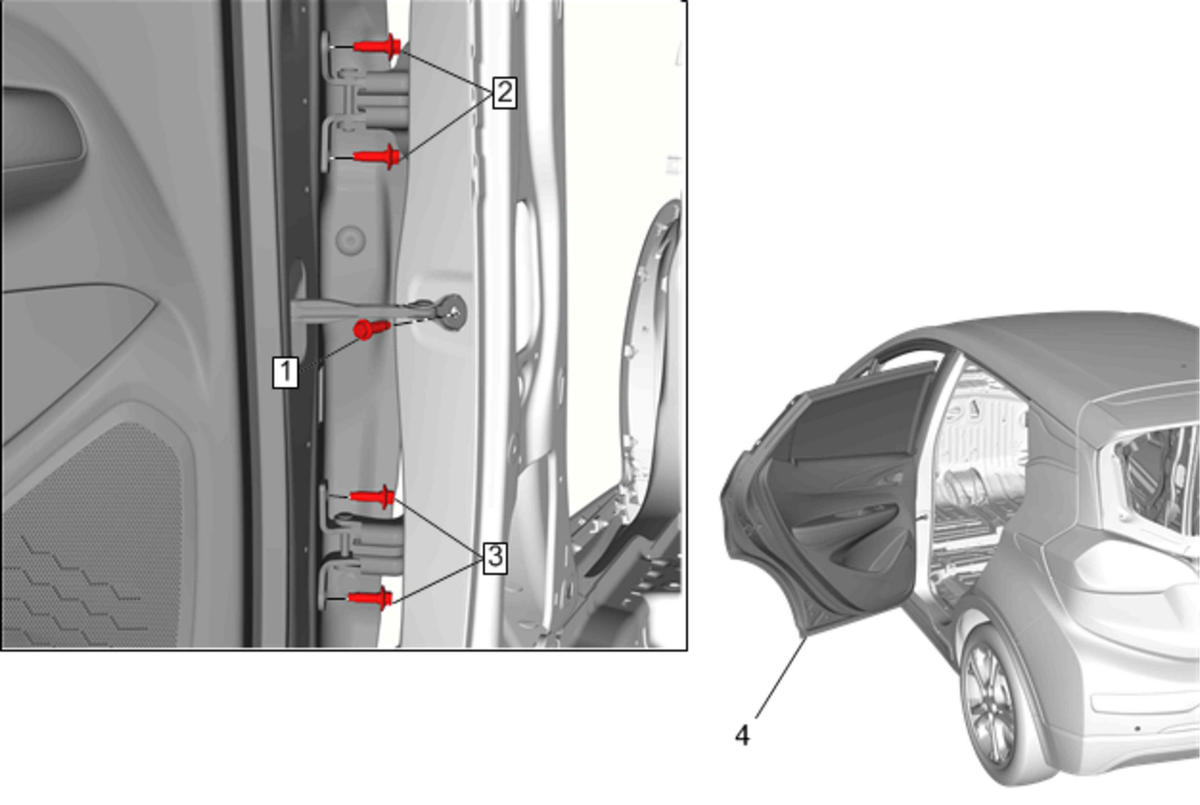

Callout	Component Name
1	Rear Side Door Check Link Bolt CAUTION: Fastener Caution Tighten 22 N.m (16 lb-ft)
2	Rear Side Door Upper Hinge Bolt [ 2x ] Tighten 25 N.m (18 lb-ft)
3	Rear Side Door Lower Hinge Bolt [ 2x ] Procedure Disconnect the electrical connector. Support the door before removing the hinge bolts. Tighten 25 N.m (18 lb-ft)
4	Rear Side Door Procedure Transfer all of the internal components. Adjust the rear side door as needed. Rear Side Door Adjustment
