Liftgate Jumper Wiring Harness Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Liftgate Upper Center Trim Finish Panel Replacement Lower the rear portion of headlining trim to gain access. Do not need to completely remove the headlining trim. Headlining Trim Panel Replacement

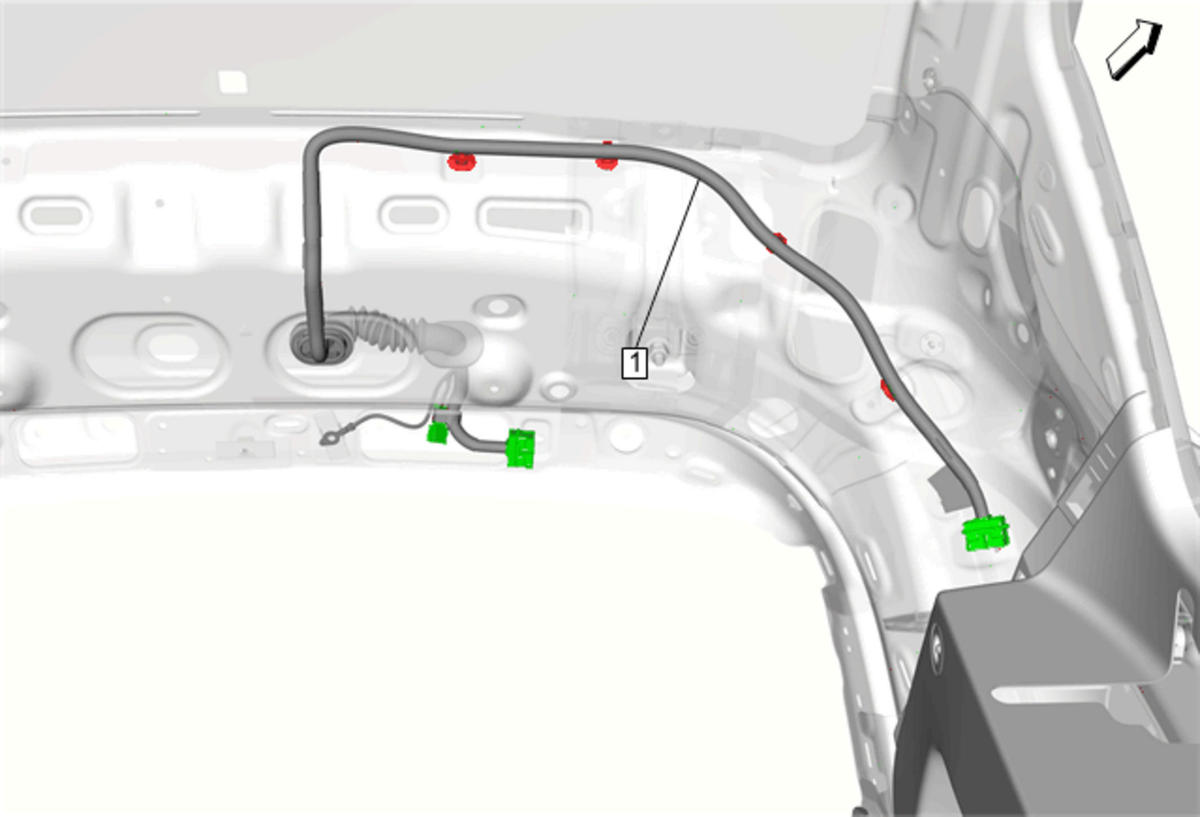

1	Liftgate Jumper Wiring Harness Procedure Disconnect all electrical connectors.

Callout

Component Name

Preliminary Procedures

Liftgate Upper Center Trim Finish Panel Replacement
Lower the rear portion of headlining trim to gain access. Do not need to completely remove the headlining trim. Headlining Trim Panel Replacement

Liftgate Jumper Wiring Harness
Procedure
Disconnect all electrical connectors.
