Hood Hinge Replacement

Courtesy of GENERAL MOTORS COMPANY

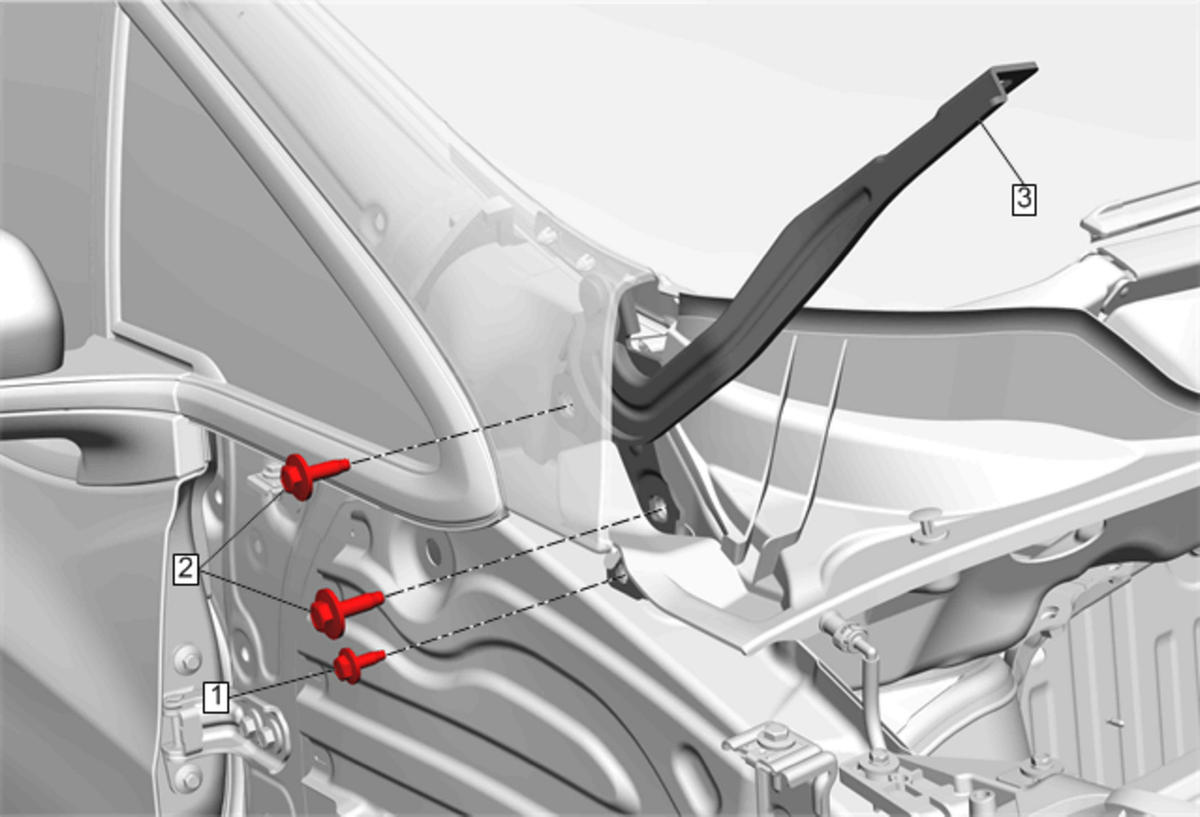

Callout	Component Name
Preliminary Procedures Hood Replacement Front Fender Replacement - Left Side Front Fender Replacement - Right Side
1	Hood Hinge Bracket Bolt CAUTION: Fastener Caution Tighten 9 N.m (80 lb/in)
2	Hood Hinge Bolt [ 2x ] Tighten 22 N.m (16 lb-ft)
3	Hood Hinge Procedure Adjust the hood and hinge if needed. Hood Adjustment
