Front Side Door Wiring Harness Replacement
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Front Side Door Replacement
Front Side Door Trim Replacement
Front Side Door Water Deflector Replacement
Radio Front Side Door Speaker Replacement

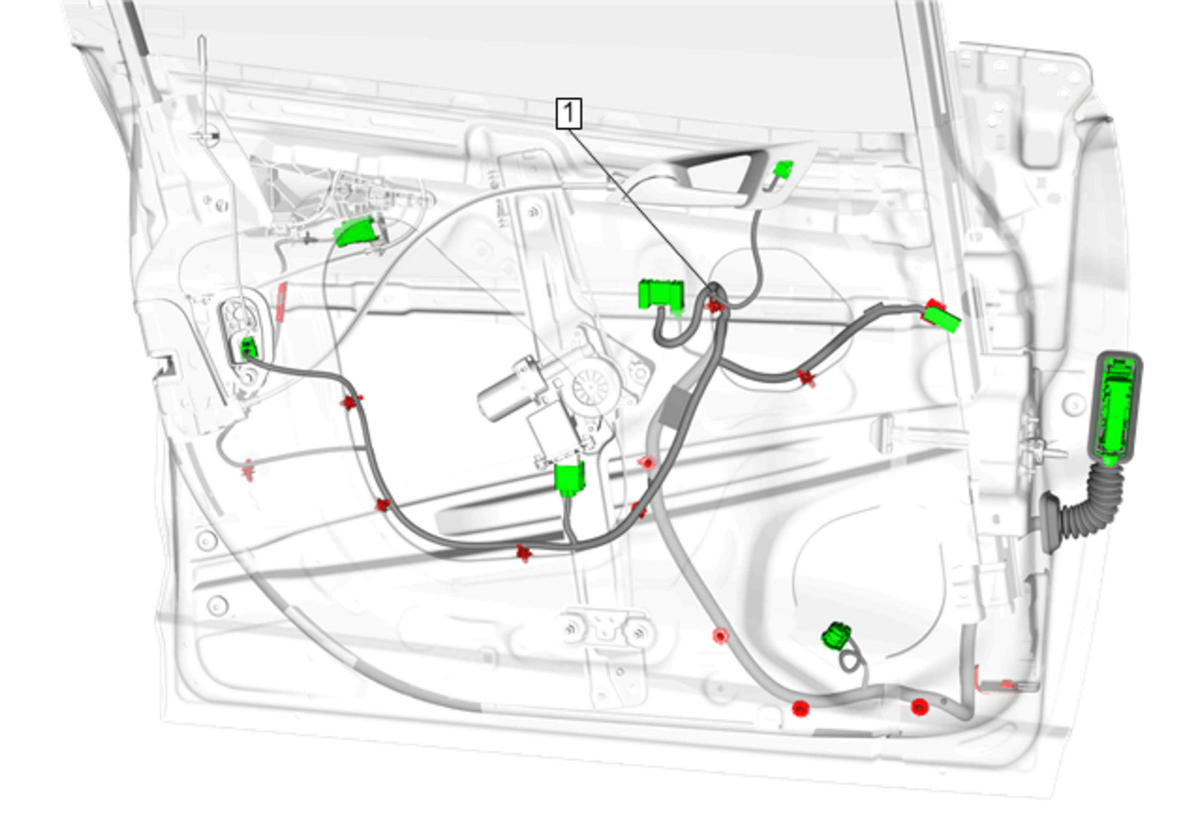

1
Front Side Door Wiring Harness
Procedure
Disconnect all electrical connectors and unclip harness.
