Front Side Door Weatherstrip Replacement - Body Side

Courtesy of GENERAL MOTORS COMPANY

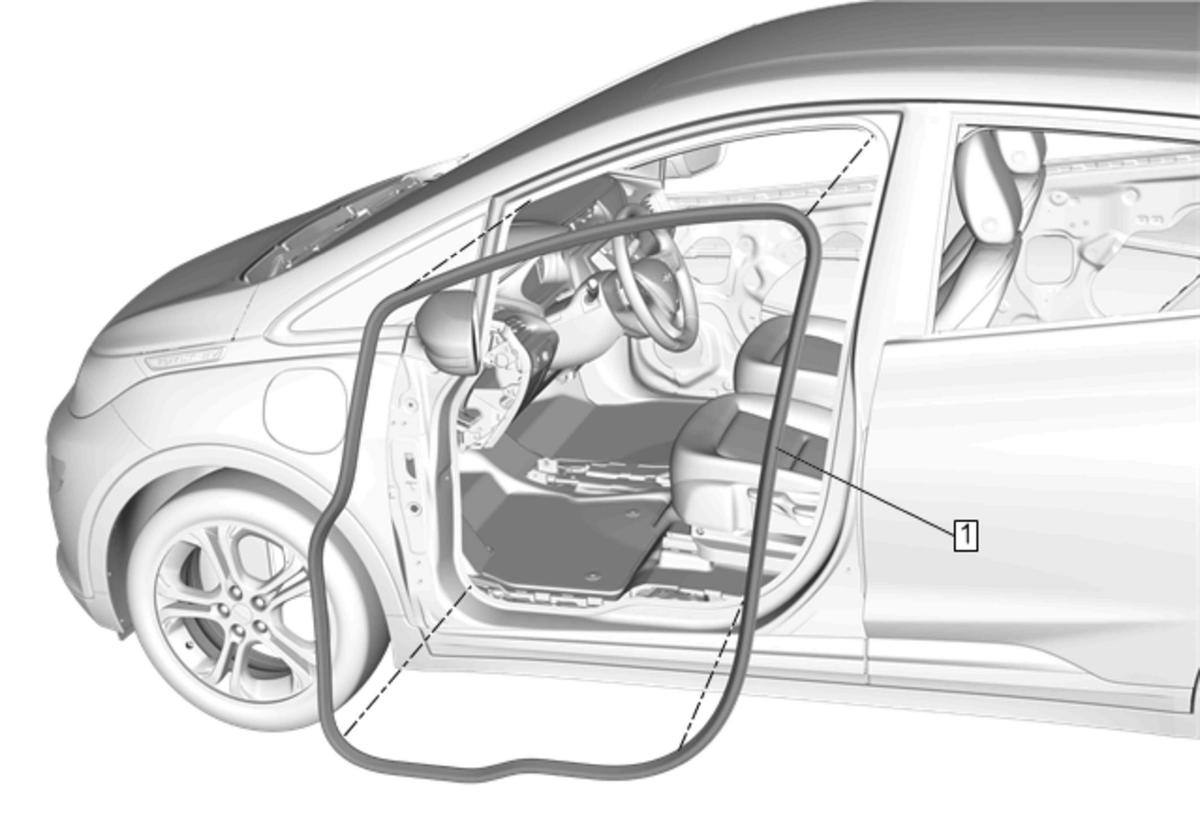

Callout	Component Name
1	Front Side Door Weatherstrip - Body Side Procedure Ensure that the weatherstrip is fully seated on the flange. Ensure that the weatherstrip is properly installed around the trim panel. Verify proper door operation. NOTE: Water test the door area after replacing the door weatherstrip to ensure no leaks.

Callout

Component Name

Front Side Door Weatherstrip - Body Side

Procedure

NOTE:

Water test the door area after replacing the door weatherstrip to ensure no leaks.
