Front Side Door Upper Hinge and Lower Hinge Replacement

Courtesy of GENERAL MOTORS COMPANY

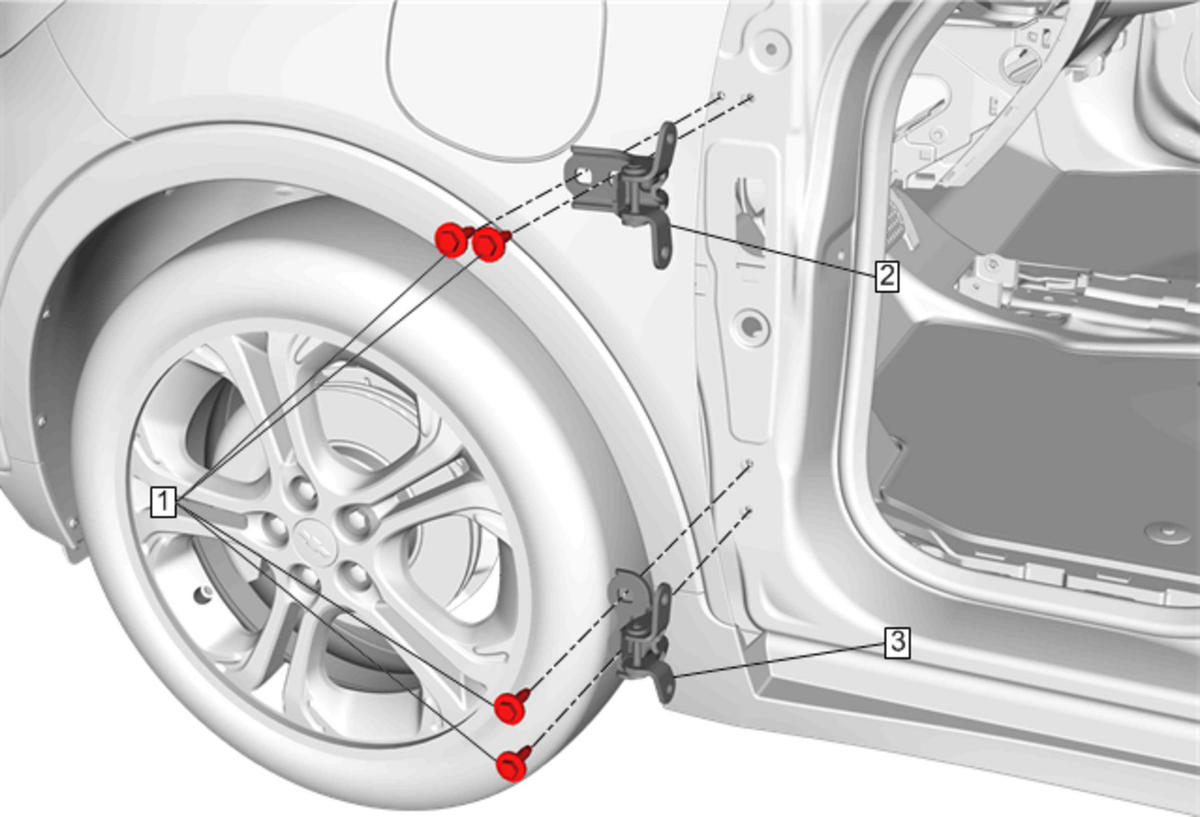

Callout	Component Name
Preliminary Procedures Front Side Door Replacement Mark the location of the old hinges.
1	Front Side Door Hinge Bolt [ 4x ] CAUTION: Fastener Caution Tighten 32 N.m (24 lb-ft)
2	Front Side Door Upper Hinge
3	Front Side Door Lower Hinge Procedure Adjust the front side door as needed. Front Side Door Adjustment
