Front Side Door Replacement

Courtesy of GENERAL MOTORS COMPANY

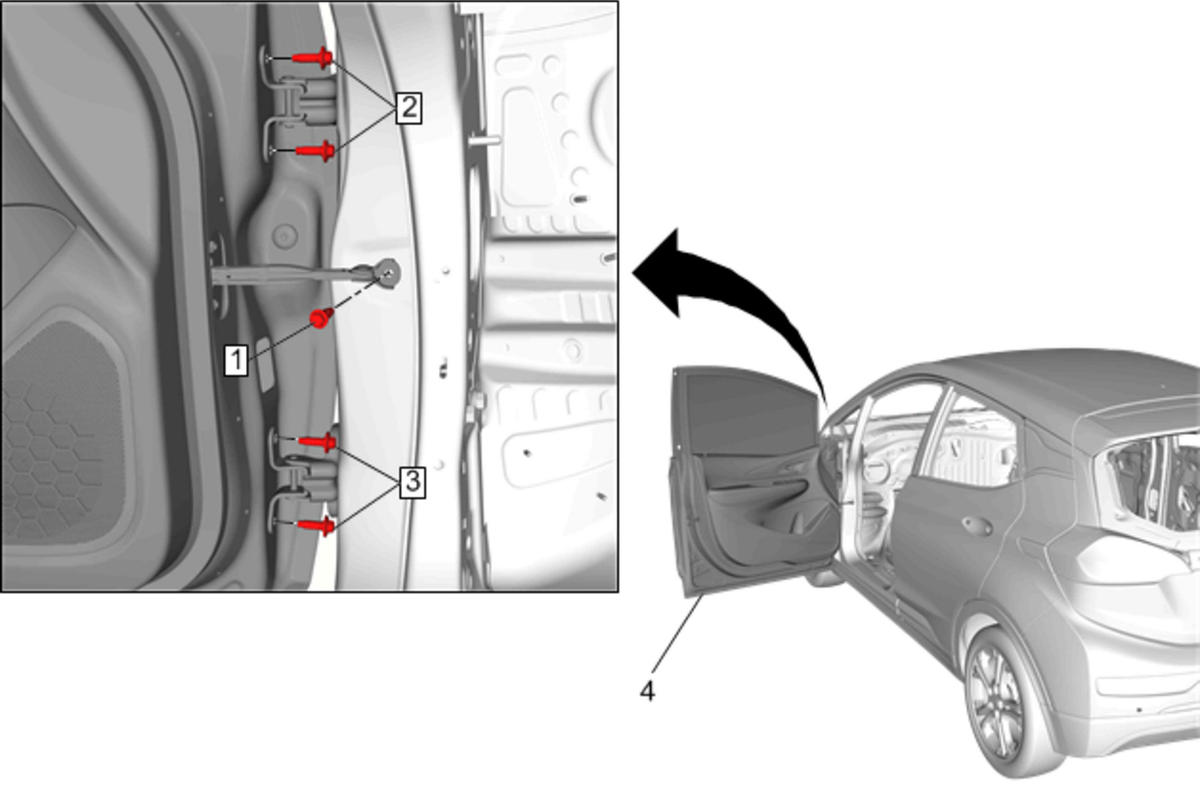

Callout	Component Name
1	Front Side Door Check Link Bolt CAUTION: Fastener Caution Tighten 22 N.m (16 lb-ft)
2	Front Side Door Upper Hinge Bolt [ 2x ] Tighten 25 N.m (18 lb-ft)
3	Front Side Door Lower Hinge Bolt [ 2x ] Procedure Apply tape to the fender and door edges to protect the surfaces. Support the door before removing the hinge bolts. Disconnect the electrical connector. Reposition the door away from the vehicle to gain access to the connector. Tighten 25 N.m (18 lb-ft)
4	Front Side Door Procedure Transfer all of the internal components. Adjust the front side door as needed. Front Side Door Adjustment .
