Special Tools

Illustration Tool Number/Description
GM14013Courtesy of GENERAL MOTORS COMPANY
 BO-38185
J 38185
Hose Clamp Pliers
GM2177375Courtesy of GENERAL MOTORS COMPANY
 EL-48264 Battery Pack Lifting Adapter

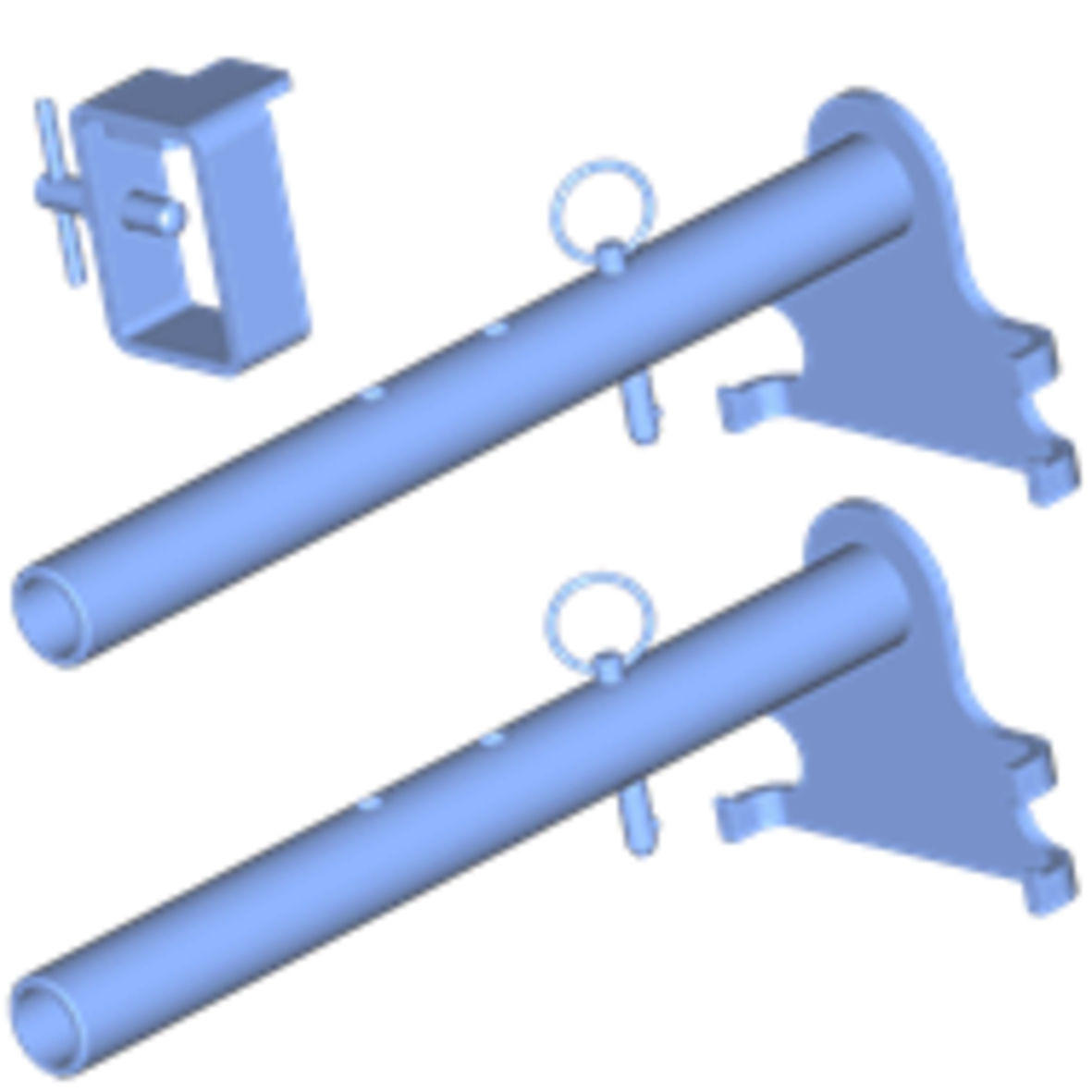

GM4592510Courtesy of GENERAL MOTORS COMPANY
 EL-48264-100
Battery Section Lifting Adapter
GM1985315Courtesy of GENERAL MOTORS COMPANY
 EL-48571-A
High Voltage Battery Pin Out Box
GM4592512Courtesy of GENERAL MOTORS COMPANY
 EL-48571-61
Pinout Box Adapter

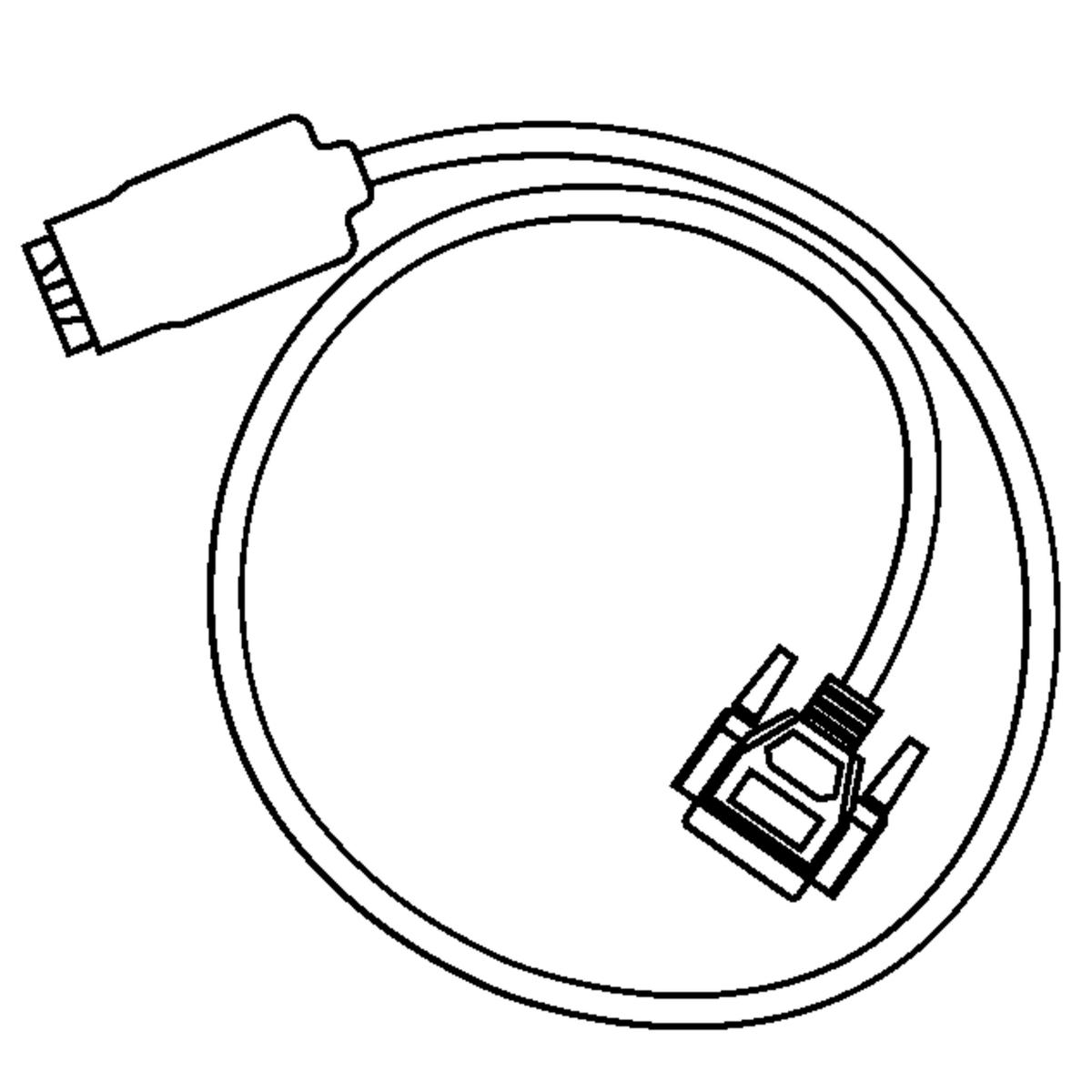

GM4592515Courtesy of GENERAL MOTORS COMPANY
 EL-48571-62
Pinout Box Adapter
GM4592516Courtesy of GENERAL MOTORS COMPANY
 EL-48571-63
Pinout Box Adapter
GM1984818Courtesy of GENERAL MOTORS COMPANY
 EL-48900
HEV Safety Kit
GM2223727Courtesy of GENERAL MOTORS COMPANY
 EL-49642
EL-50113
SPS Programming Support Tool
GM2921333Courtesy of GENERAL MOTORS COMPANY
 EL-50332
Hybrid/EV Battery Service Tool
GM2921334Courtesy of GENERAL MOTORS COMPANY
 EL-50332-105
Universal Fuse Box
GM2921341Courtesy of GENERAL MOTORS COMPANY
 EL-50332-120
High Voltage Interface Cable
GM2921342Courtesy of GENERAL MOTORS COMPANY
 EL-50332-125
Vehicle Interface Module Low Voltage 24-Pin Cable
GM2921351Courtesy of GENERAL MOTORS COMPANY
 EL-50332-145
Black Banana Jack Cable
GM2921352Courtesy of GENERAL MOTORS COMPANY
 EL-50332-150
Red Banana Jack Cable
GM2921355Courtesy of GENERAL MOTORS COMPANY
 EL-50332-155
Green Banana Jack Cable

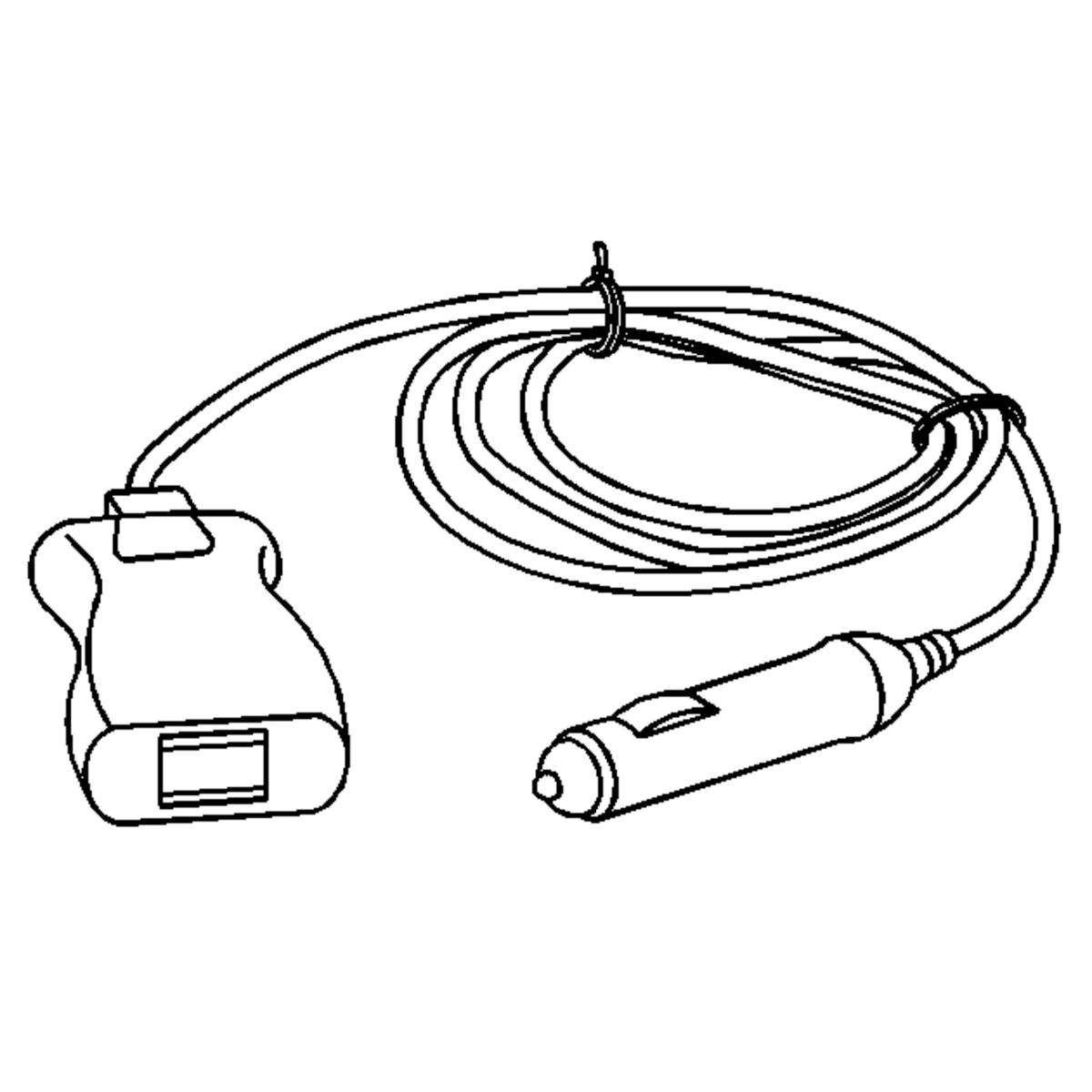

GM2921356Courtesy of GENERAL MOTORS COMPANY
 EL-50332-160
12 V Auxiliary Power Cable

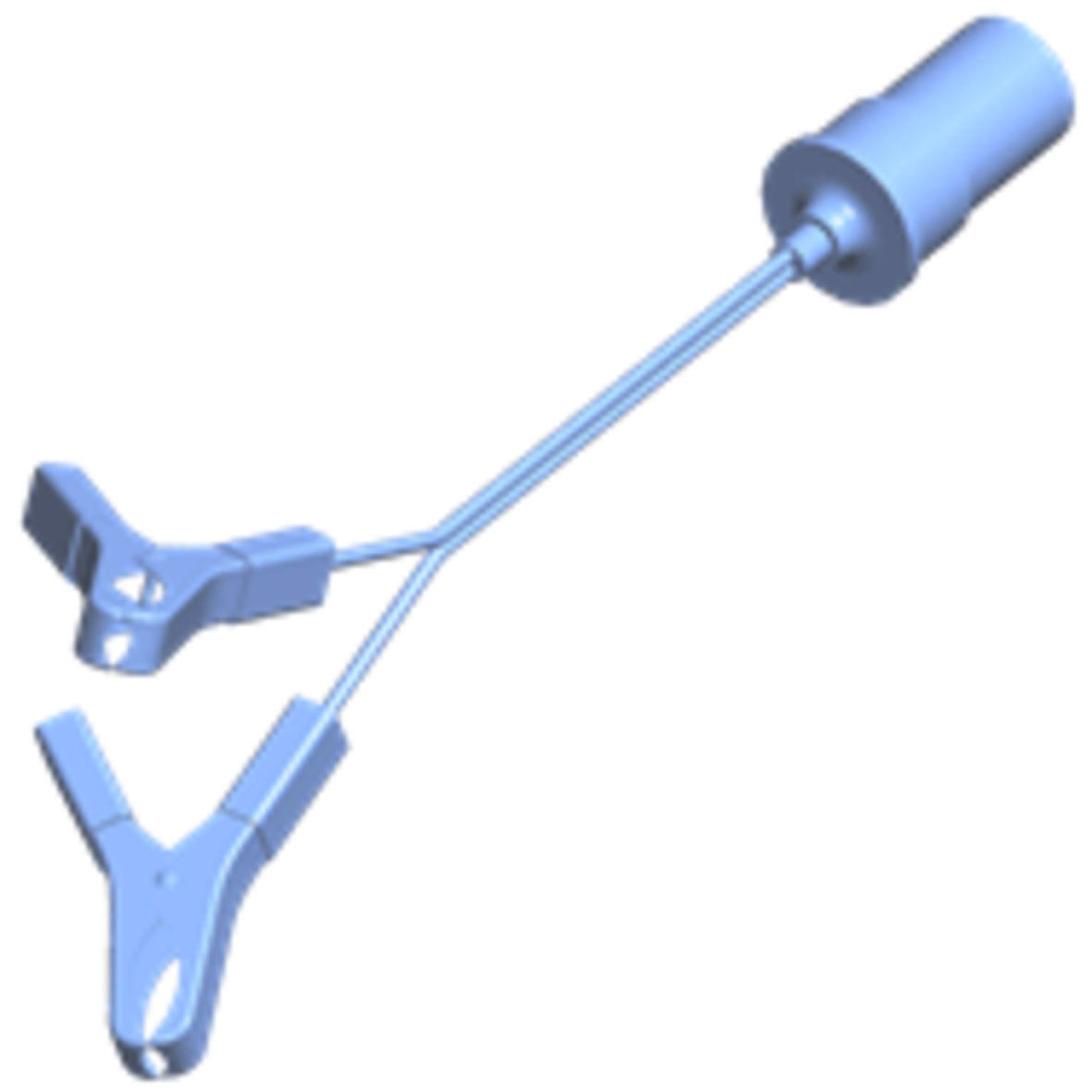

GM2921358Courtesy of GENERAL MOTORS COMPANY
 EL-50332-165
12 V Auxiliary Clamps Adapter Cable
GM2921359Courtesy of GENERAL MOTORS COMPANY
 EL-50332-170
High Voltage Alligator Clamps
GM2921361Courtesy of GENERAL MOTORS COMPANY
 EL-50332-175
120 V Power Cable

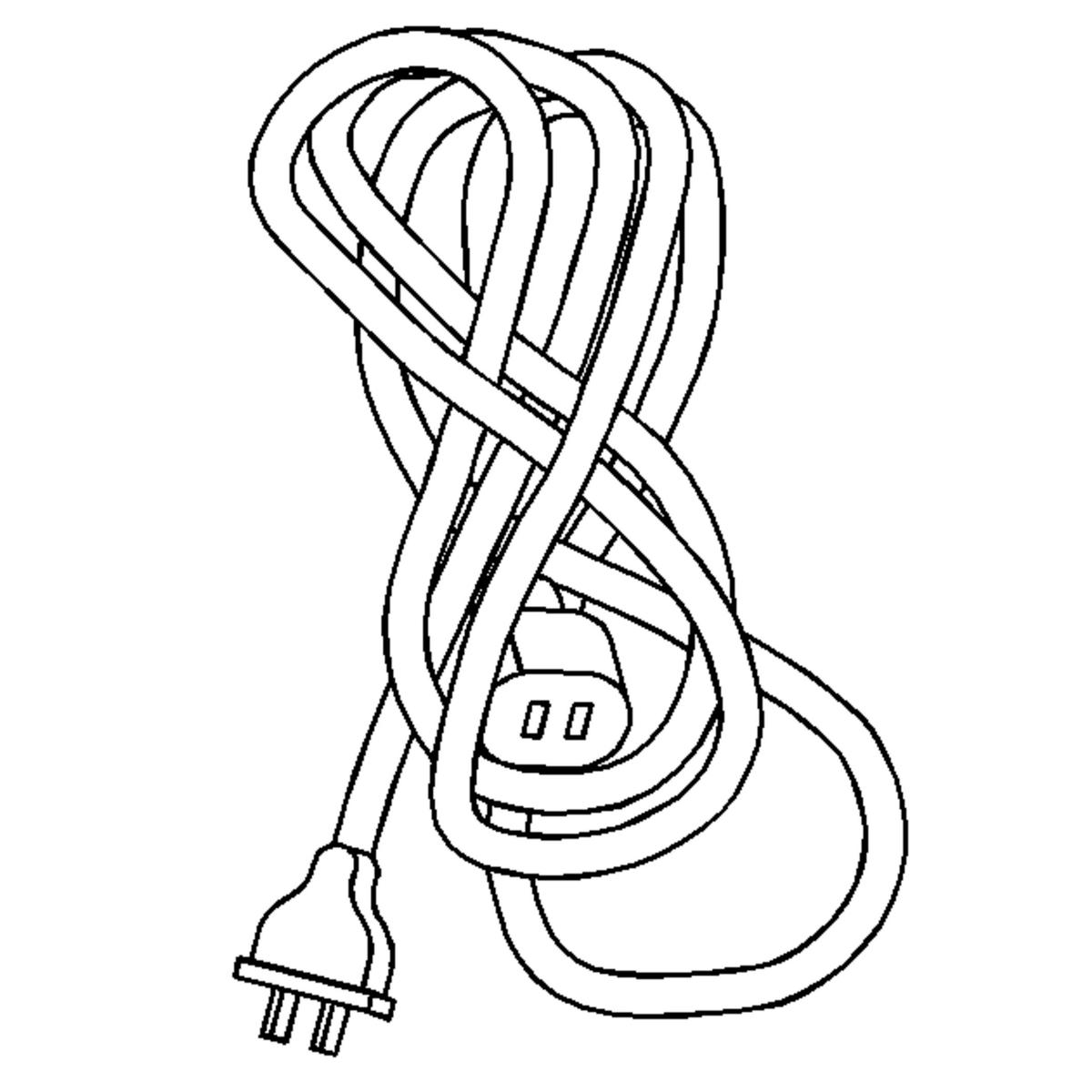

GM2921362Courtesy of GENERAL MOTORS COMPANY
 EL-50332-180
250 V Power Cable - AUS
GM2921364Courtesy of GENERAL MOTORS COMPANY
 EL-50332-185
250 V Power Cable - EU/Korea
GM2921338Courtesy of GENERAL MOTORS COMPANY
 EL-50332-270
Vehicle Interface Module 2

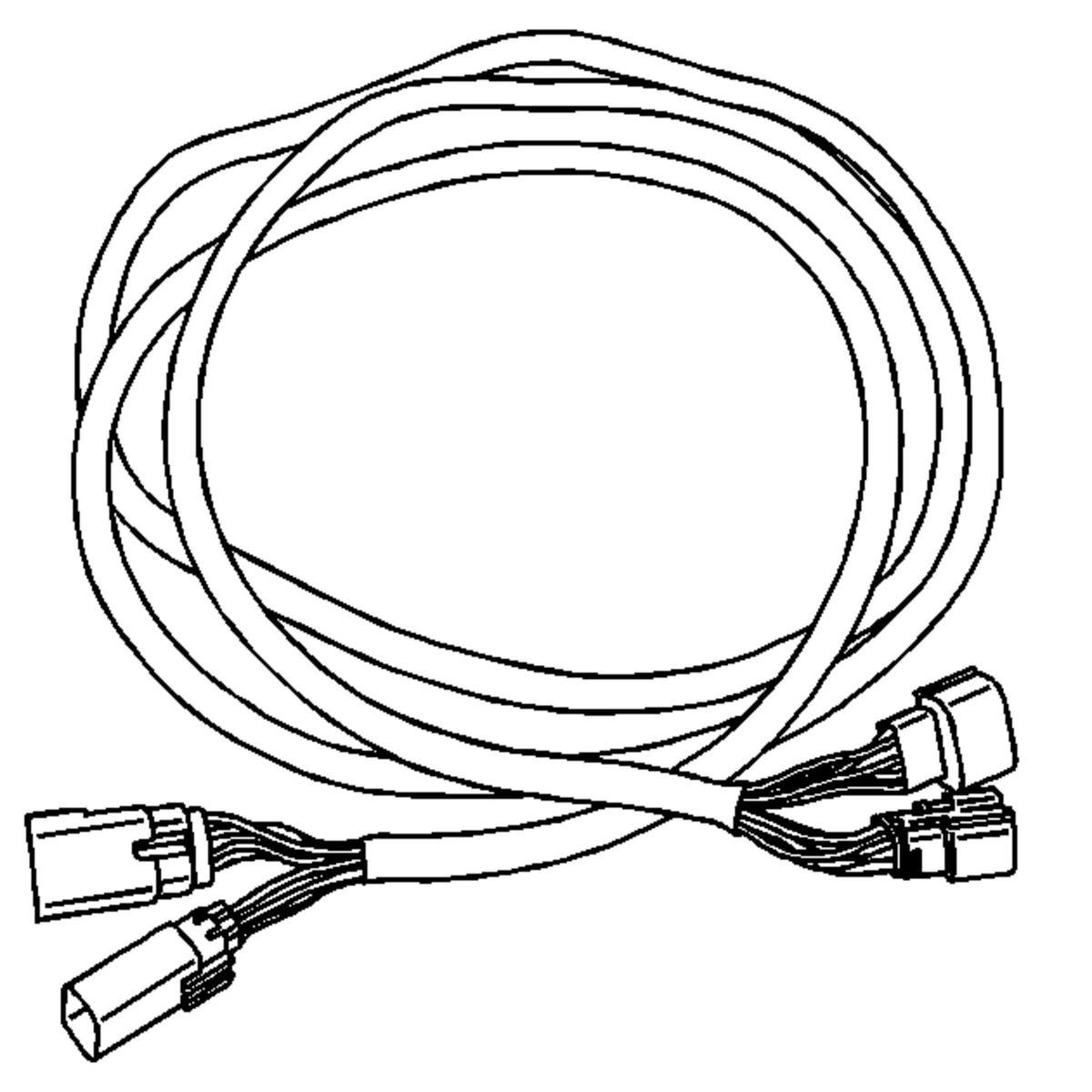

GM3953055Courtesy of GENERAL MOTORS COMPANY
 EL-50332-325
Low Voltage Adapter Harness
GM3953054Courtesy of GENERAL MOTORS COMPANY
 EL-50332-335
High Voltage Adapter Harness
GM2630648Courtesy of GENERAL MOTORS COMPANY
 EL-50772
Insulation Multimeter

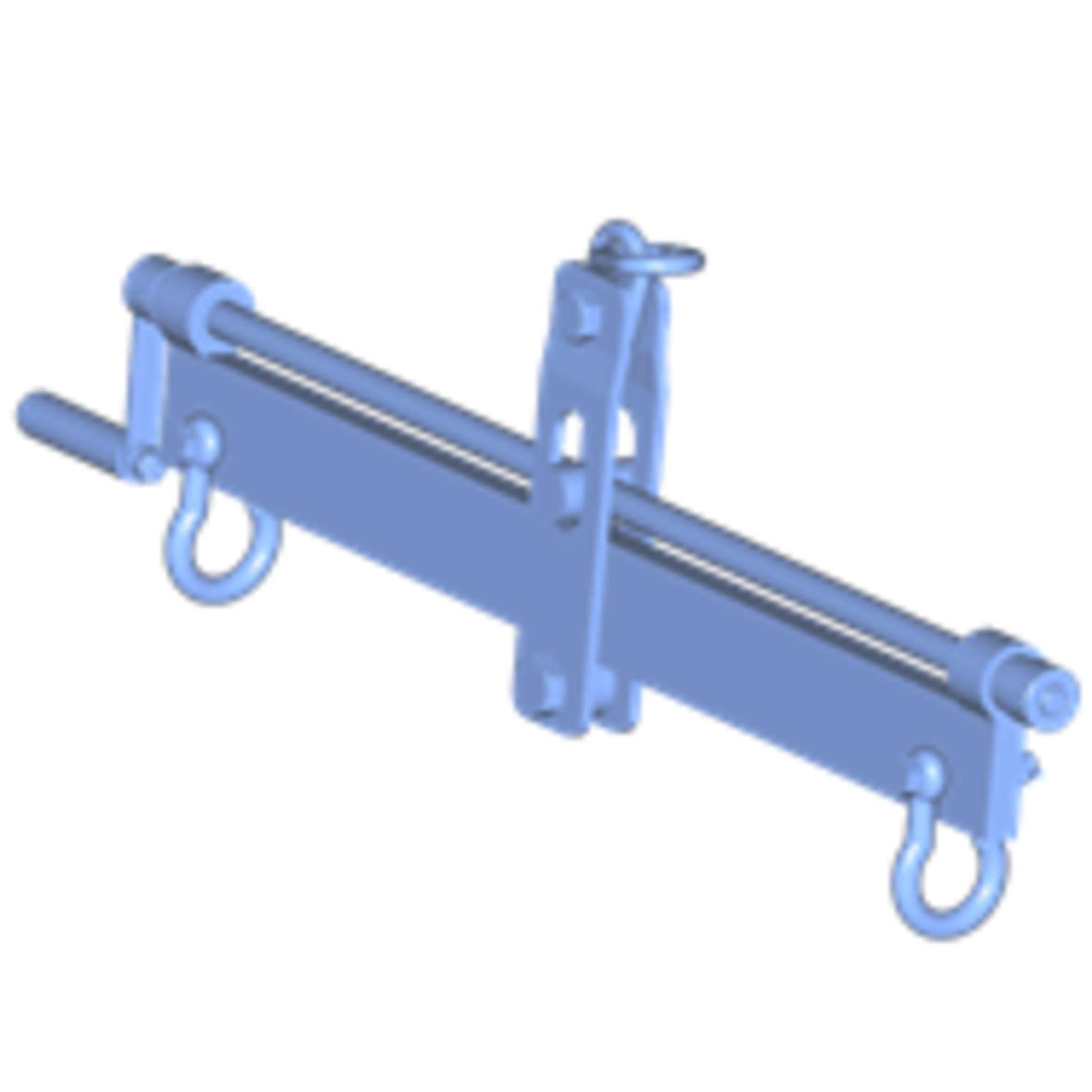

GM4518953Courtesy of GENERAL MOTORS COMPANY
 EL-51102
High Voltage Battery Lift Bar Tilter

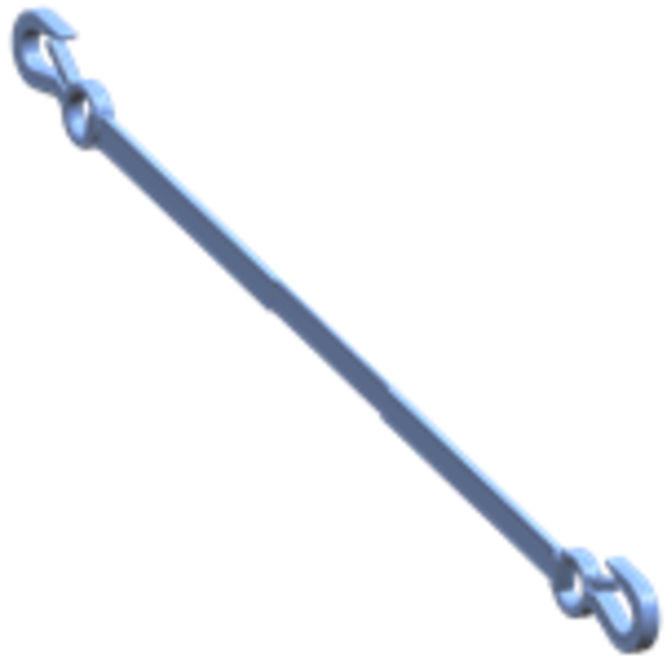

GM4518974Courtesy of GENERAL MOTORS COMPANY
 EL-51102-1
High Voltage Battery Lift Bar Strap

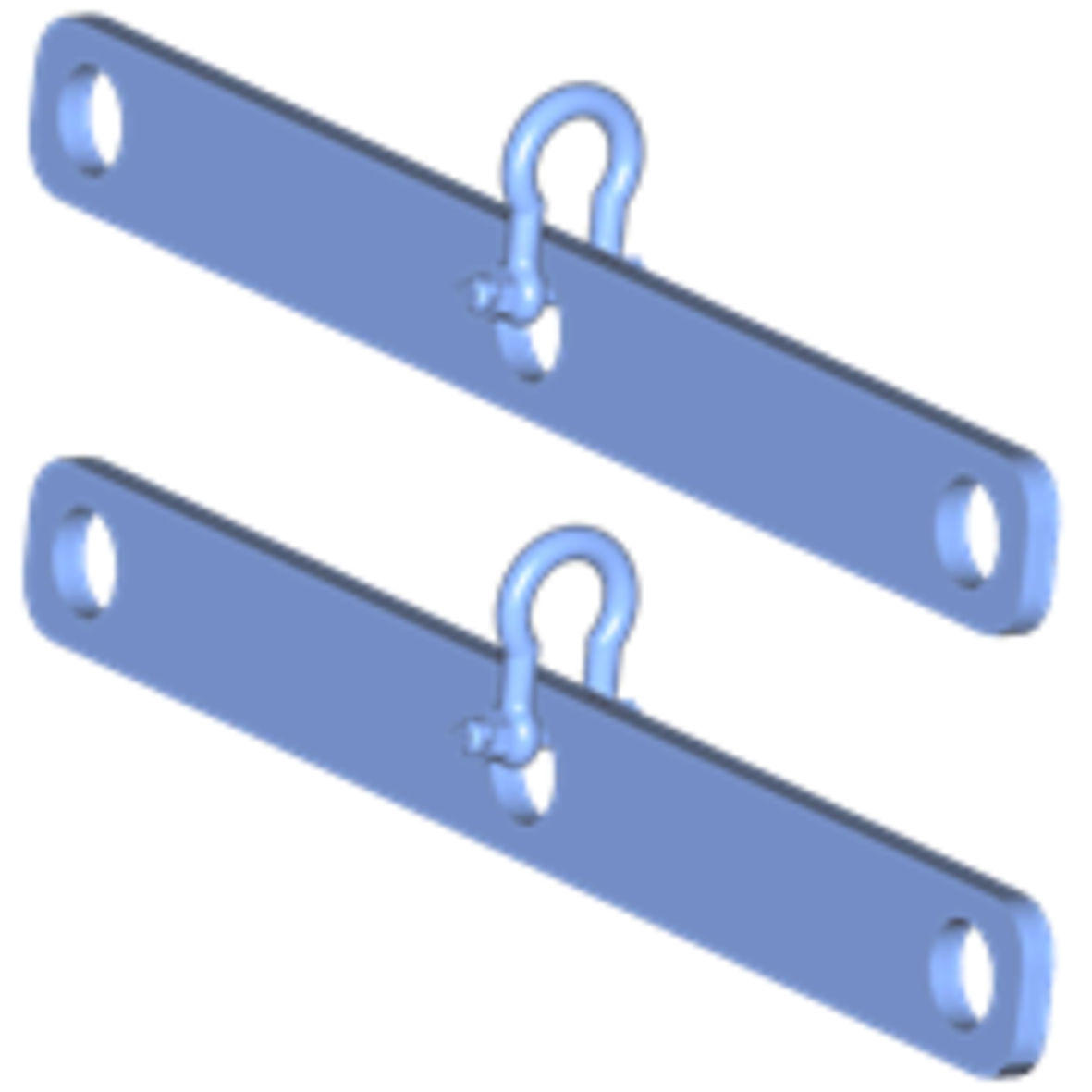

GM4518967Courtesy of GENERAL MOTORS COMPANY
 EL-51102-10
High Voltage Battery Lift Bar Hanging Bars and Shackles

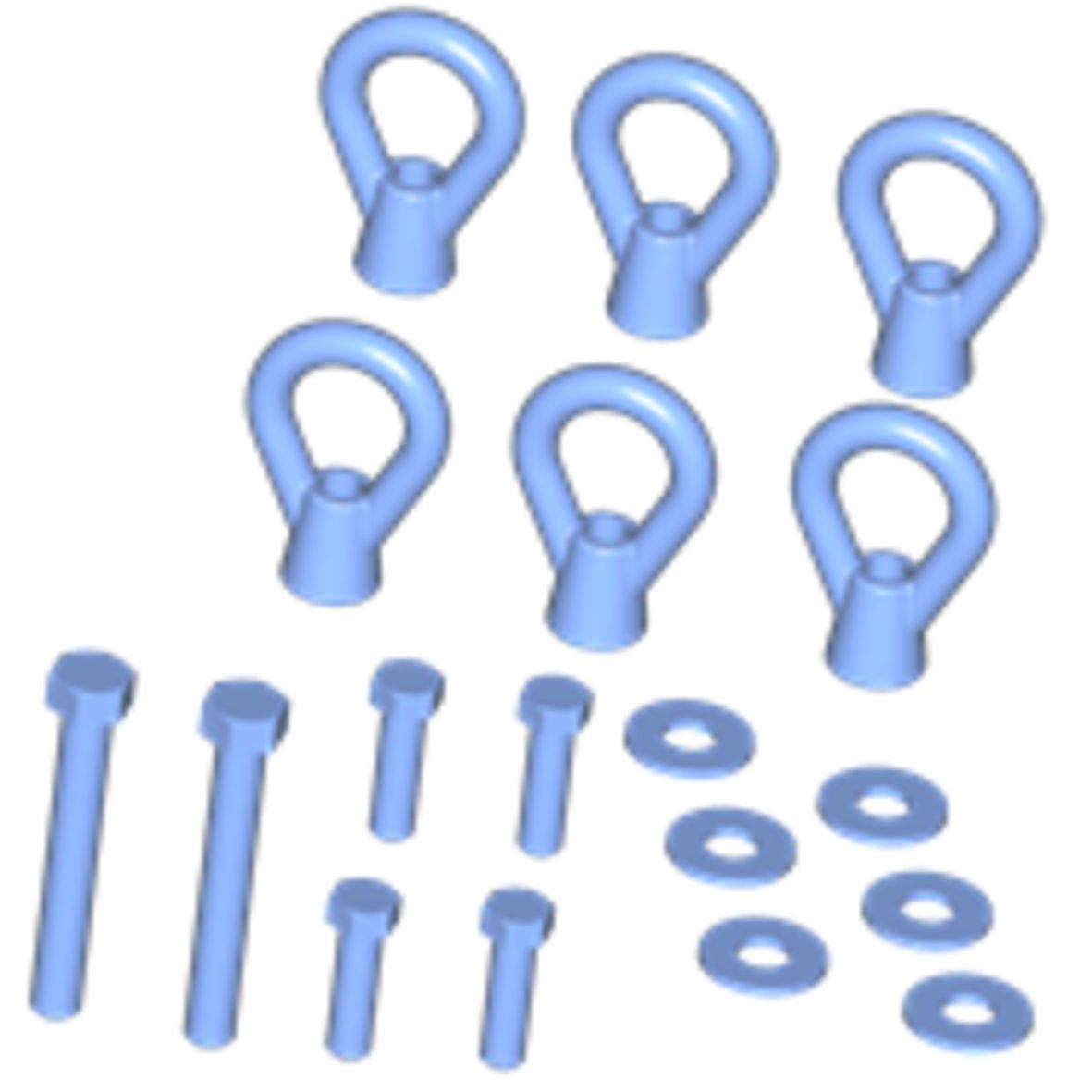

GM4518971Courtesy of GENERAL MOTORS COMPANY
 EL-51102-20
High Voltage Battery Lift Bar Eye-Bolt Kit

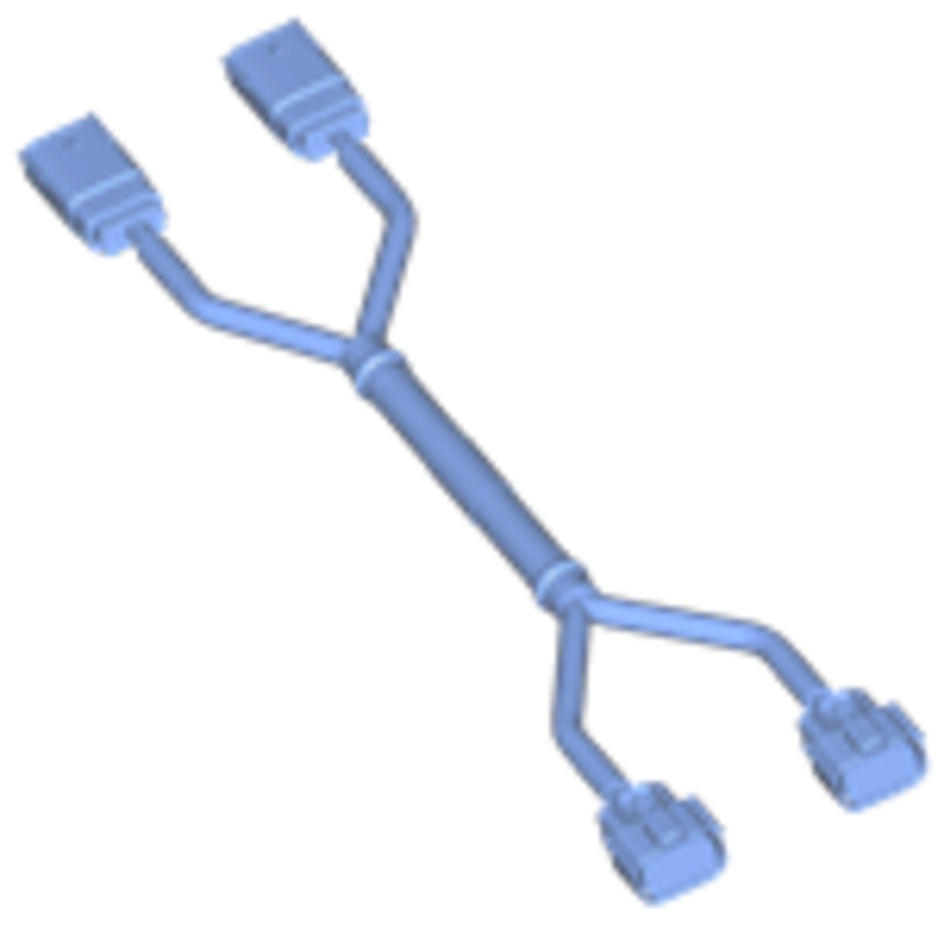

GM4592517Courtesy of GENERAL MOTORS COMPANY
 EL-52014
Low Voltage Test Harness

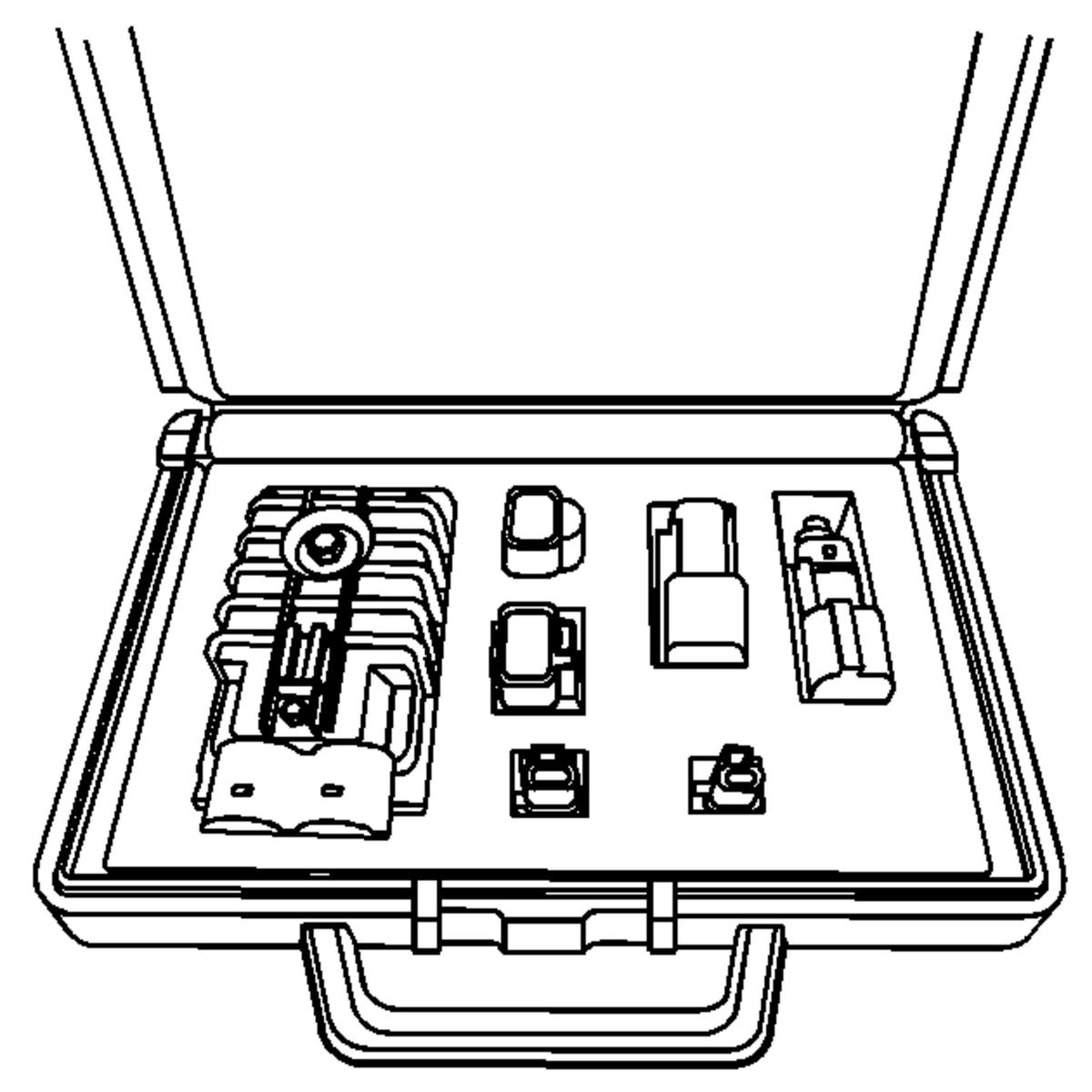

GM4592518Courtesy of GENERAL MOTORS COMPANY
 EL-52015
Battery Smoke Test Leak Adapters
GM2657852Courtesy of GENERAL MOTORS COMPANY
 GE-41413-A
J 41413-A
Evaporative Emissions System Tester
GM4660617Courtesy of GENERAL MOTORS COMPANY
 GE-52200
Lifting Table

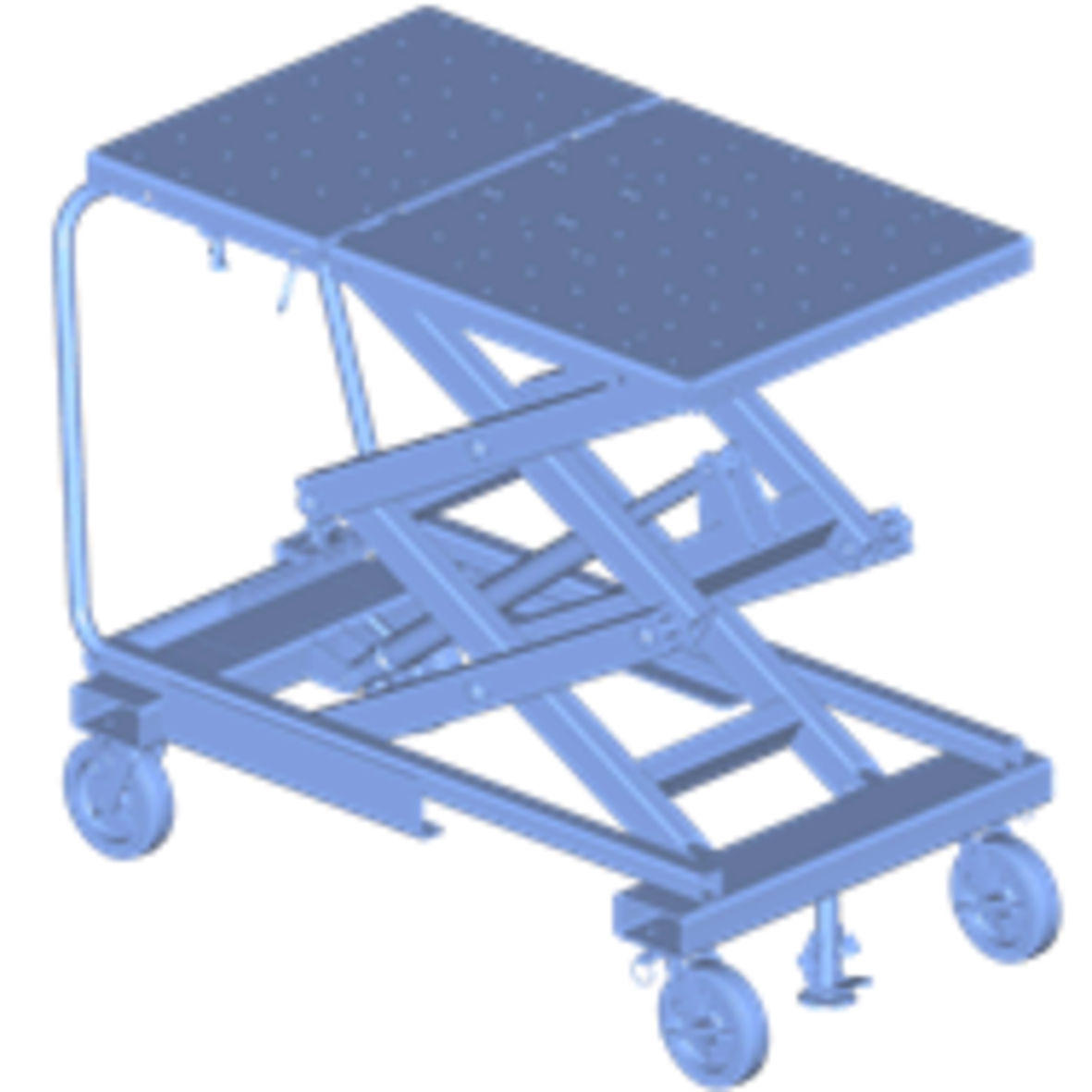

GM4691464Courtesy of GENERAL MOTORS COMPANY
 GE-52418
Lifting Table - Korea
