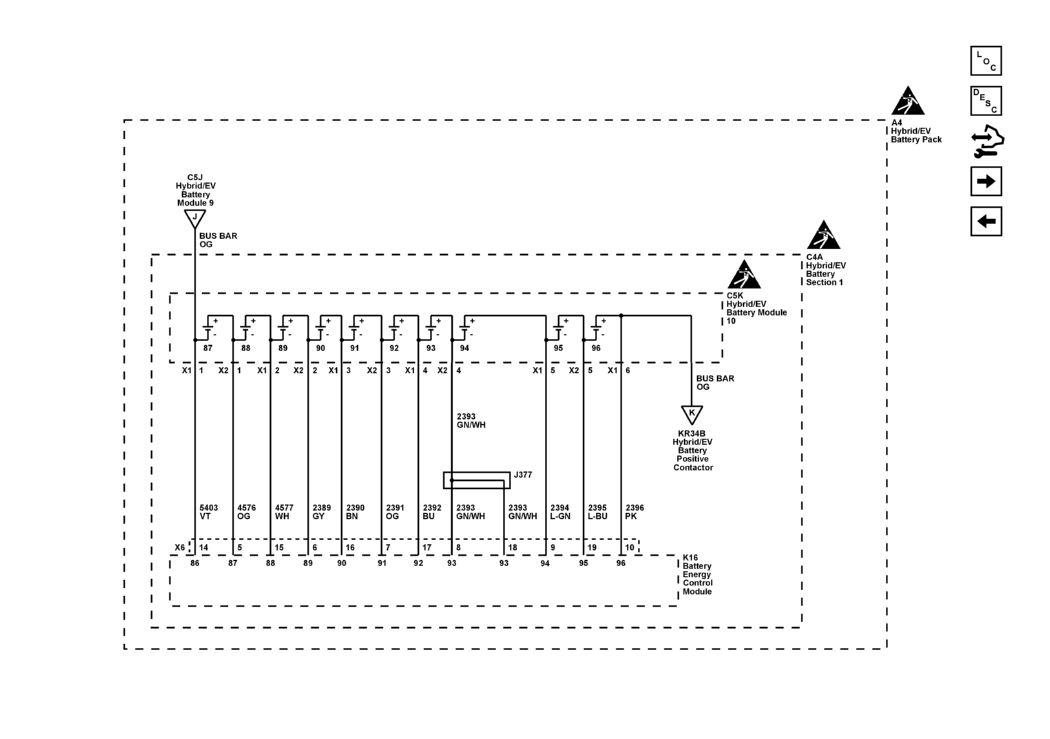

Home >> Chevrolet >> 2021 >> Bolt EV LT >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Hybrid/EV Energy Storage - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Hybrid/EV Energy Storage Wiring Schematics >> Hybrid/EV Battery Module 10
