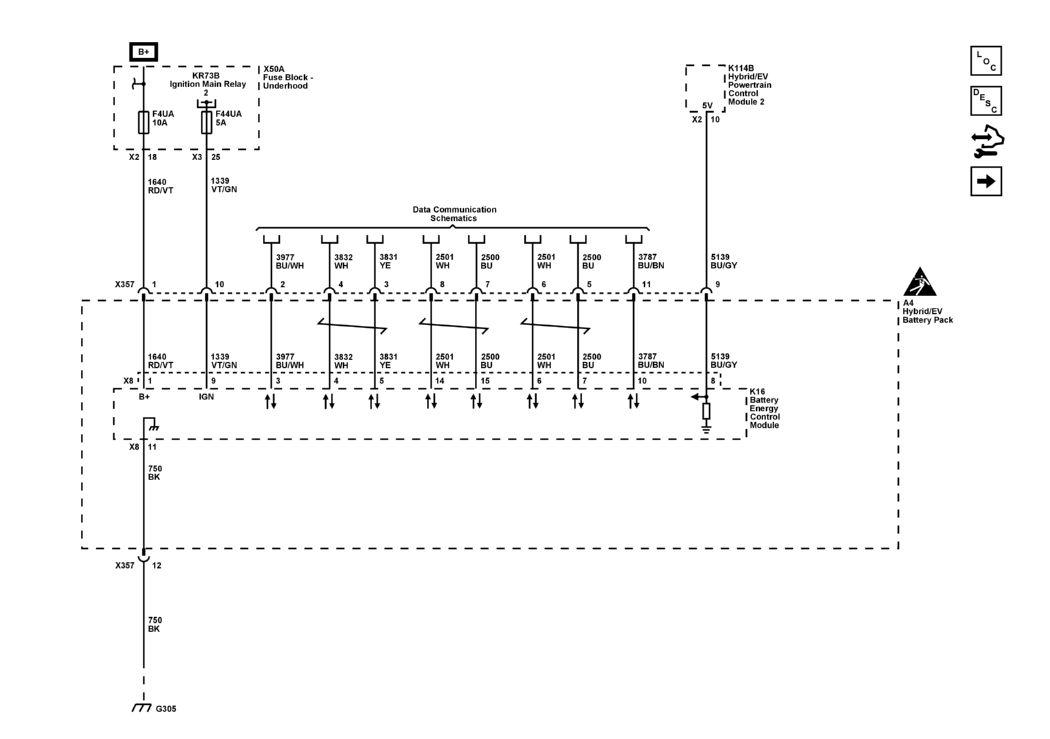

Battery Energy and Interface Control Module Power, Ground, and Data Communication

GM5651148

Courtesy of GENERAL MOTORS COMPANY
