Front Side Door Weatherstrip Replacement - Door Side

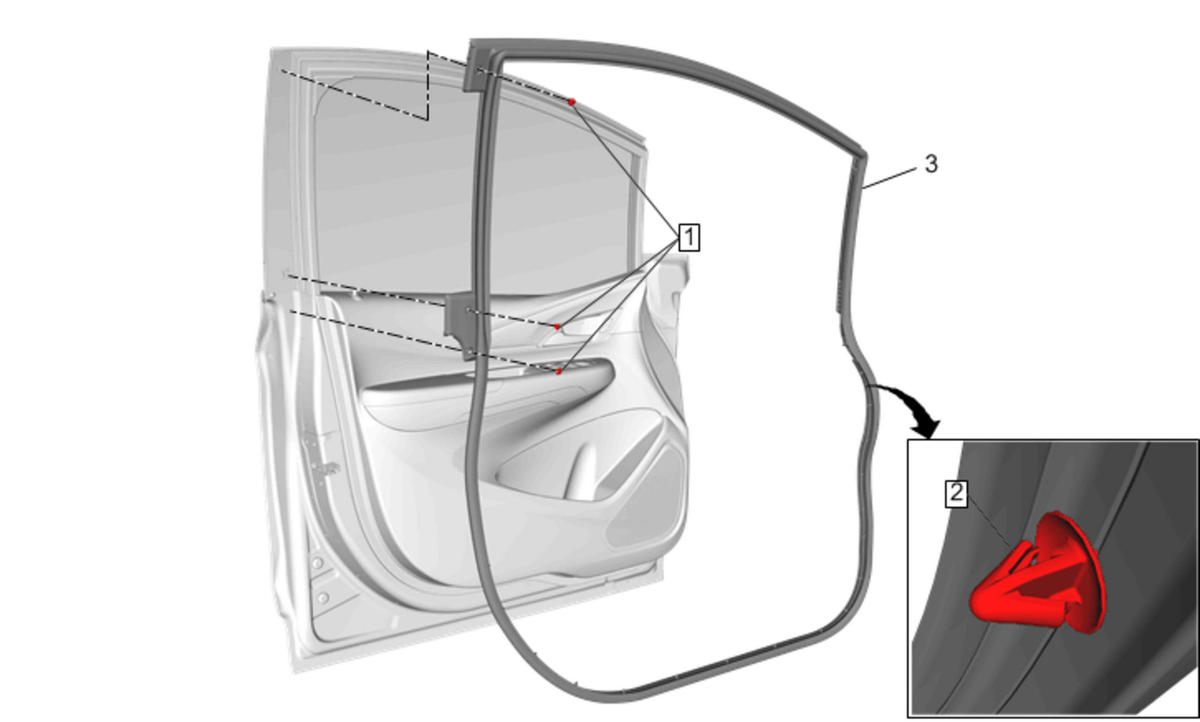

GM4532521Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Open the rear side door to the fully open position.
  2. Remove the front side door check link bolt from the body side only. Front Side Door Check Link Replacement
1 Front Side Door Weatherstrip Upper Retainer [ 3x ]
2 Front Side Door Weatherstrip Retainer [ 21x ]
3 Front Side Door Weatherstrip - Door Side

Procedure

  1. Ensure that the weatherstrip is fully seated in the door frame retainer.
  2. Verify proper door operation.
NOTE:

Water test the door area after replacing the door weatherstrip to ensure no leaks.
