Removal Procedure

  1. Reposition the seats to access the console bolts.
  2. GM4535561Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Console Bolt (1) - Remove [ 4x ]

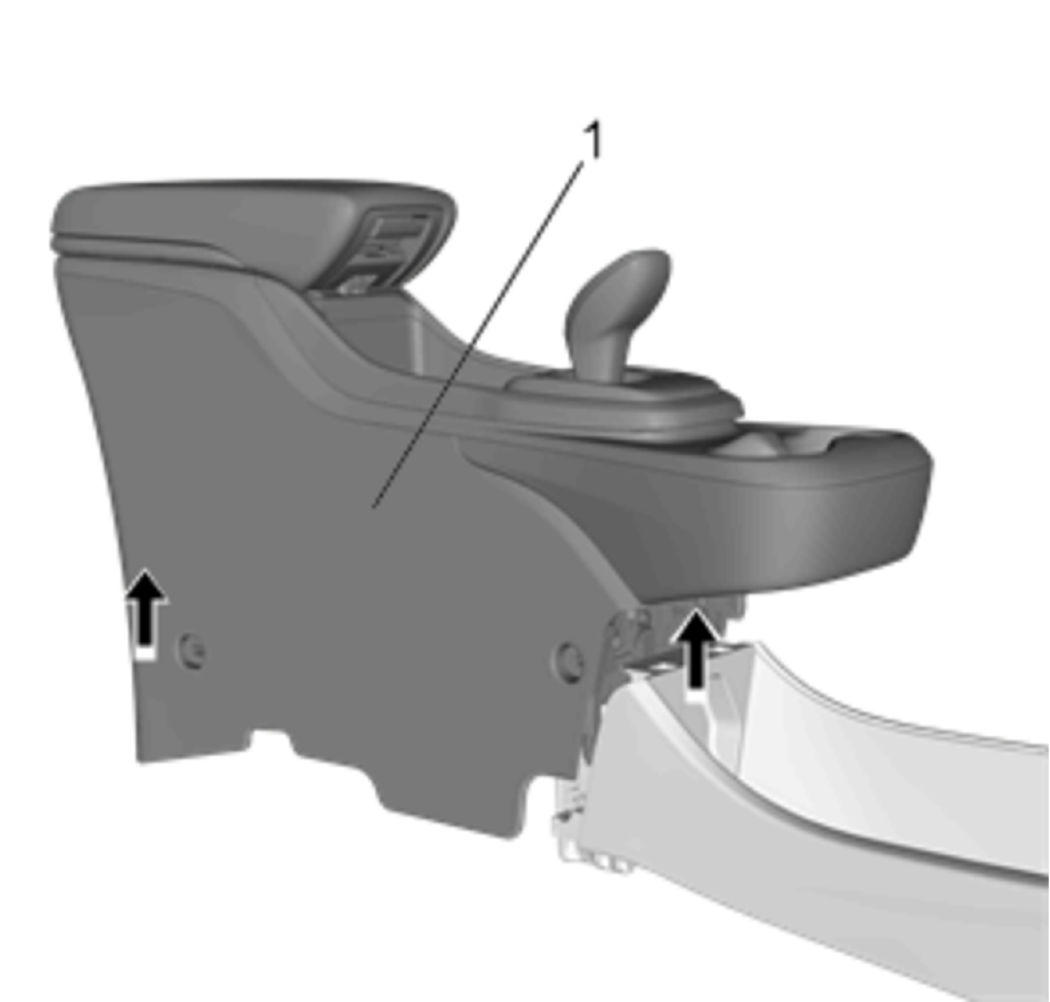

  3. GM4535563Courtesy of GENERAL MOTORS COMPANY

    Gently and slightly lift the rear floor console (1).

  4. GM4535566Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors (1).

  5. GM4535567Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Console (1) - Remove
