Instrument Panel Lower Trim Panel Insulator Replacement

Courtesy of GENERAL MOTORS COMPANY

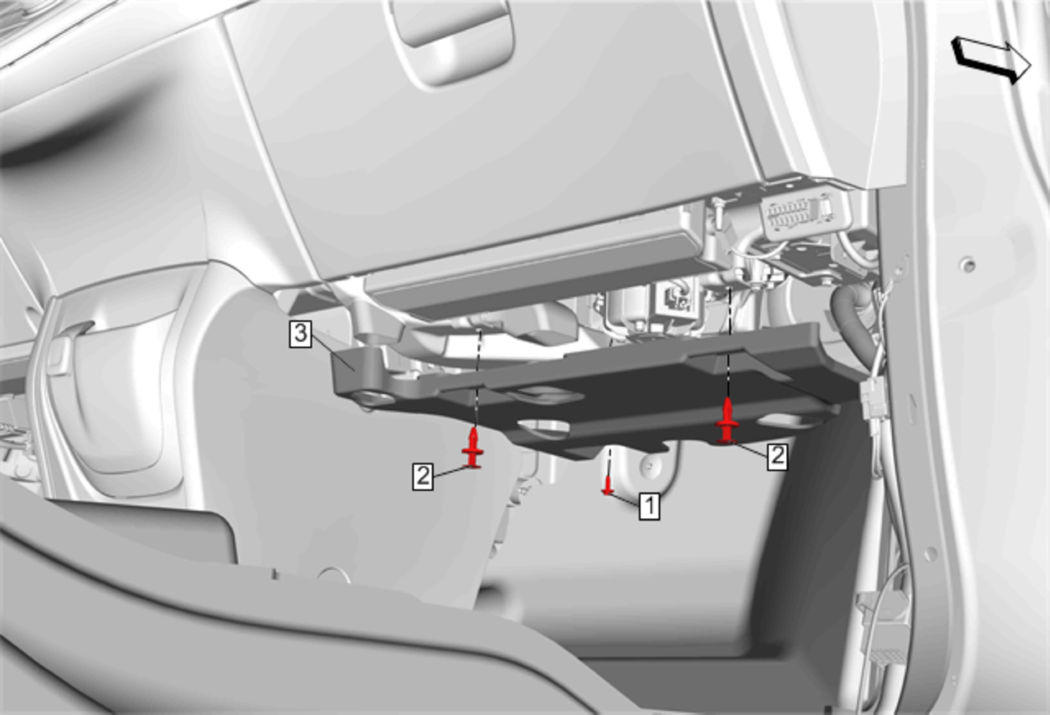

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling
1	Instrument Panel Lower Trim Panel Bolt CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m(13 lb/in)
2	Instrument Panel Lower Insulator Retainer [ 2x ] Procedure  Use a flat-bladed plastic tool to remove the push-in retainers.
3	Instrument Panel Lower Trim Panel Insulator Procedure  Enable the SIR system. SIR Disabling and Enabling
