Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Rear Floor Console (1) - Remove - Rear Floor Console Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Trim Panel (1) - Remove - Front Floor Console Rear Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Rear Floor Console Stowage Tray (2) - Remove - Rear Floor Console Stowage Tray Replacement (without K4C) , or Rear Floor Console Stowage Tray Replacement (with K4C)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Cup Holder Trim Plate (3) - Remove - Front Floor Console Cup Holder Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Armrest Hinge Reinforce Assembly-No. 1, Bolt (1) - Remove [ 2x ]
Armrest Hinge Reinforce Assembly-No. 1 (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Armrest Hinge Reinforce Assembly-No. 2, Screw (1) - Remove [ 4x ]
Armrest Hinge Reinforce Assembly-No. 2, Bolt (2) - Remove [ 2x ]
Armrest Hinge Reinforce Assembly-No. 2(3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Console Side Panel Bolt (1) - Remove [ 3x ]
Rear Console Side Panel (1) - Right - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Console Side Panel Bolt (1) - Remove [ 3x ]
Rear Console Side Panel (1) - Left - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Cup Holder Bolt (1) - Remove [ 7x ]
Courtesy of GENERAL MOTORS COMPANY

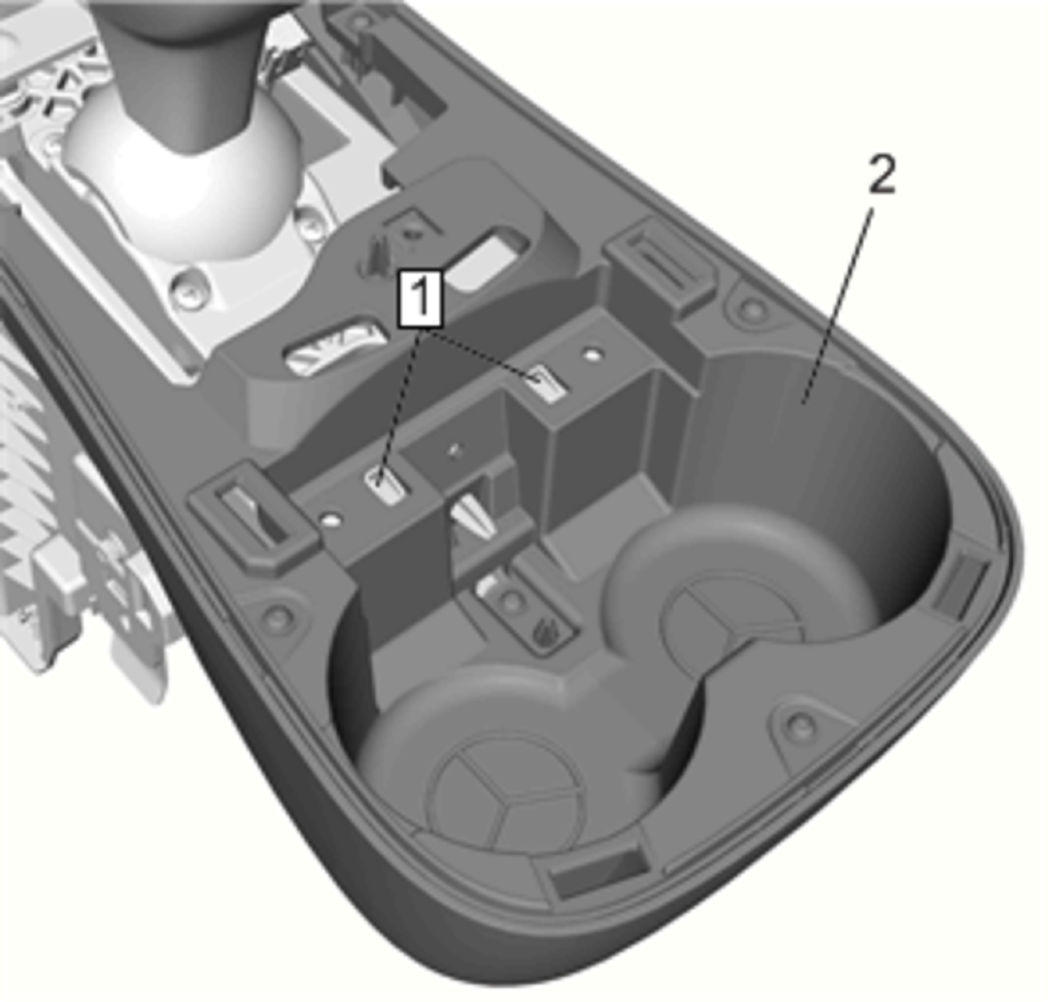

NOTE:
Integral retainers will most likely be damaged when cup holder is removed, but damage dose not matter since fasteners secure the cup holder.

Release the two integral retainers (1) and pull the cup holder (2) forward to release it.
Front Floor Console Cup Holder (2) - Remove
