Heater Outlet Hose Replacement (LGX Heater Core Outlet Tube to Heater Outlet Hose Connector)

Courtesy of GENERAL MOTORS COMPANY

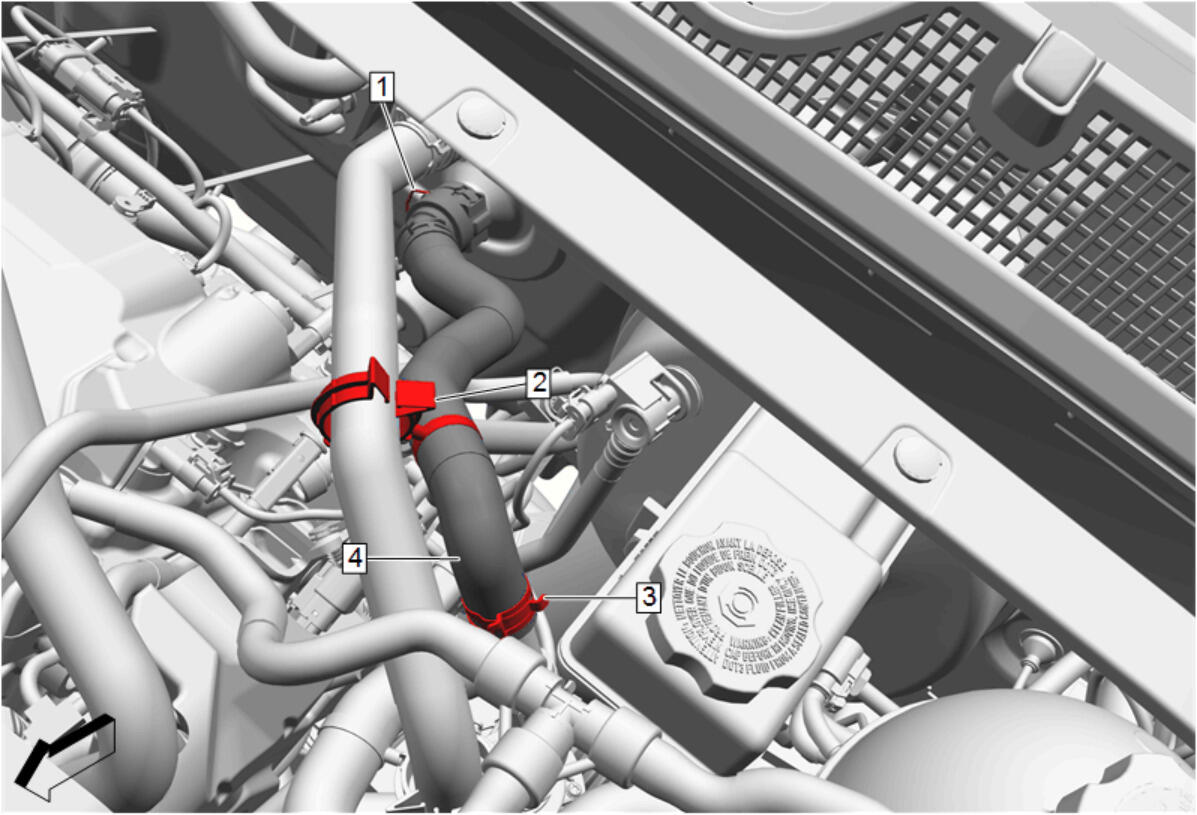

Callout	Component Name
Preliminary Procedure Drain the cooling system. Cooling System Draining and Filling (Static LCV, LGX) , or Cooling System Draining and Filling (GE 47716 LCV, LGX)
1	Heater Outlet Hose Connector Retainer
2	Heater Outlet Hose Clip
3	Heater Outlet Hose Clamp Procedure Hose Clamp Replacement Guidelines - Spring Type
4	Heater Outlet Hose Procedure Fill the cooling system to the proper level. Cooling System Draining and Filling (Static LCV, LGX) , or Cooling System Draining and Filling (GE 47716 LCV, LGX) Start the engine and check for coolant leaks.
