Section 8 (Engine Controls And Fuel - 2.5L (LCV) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>

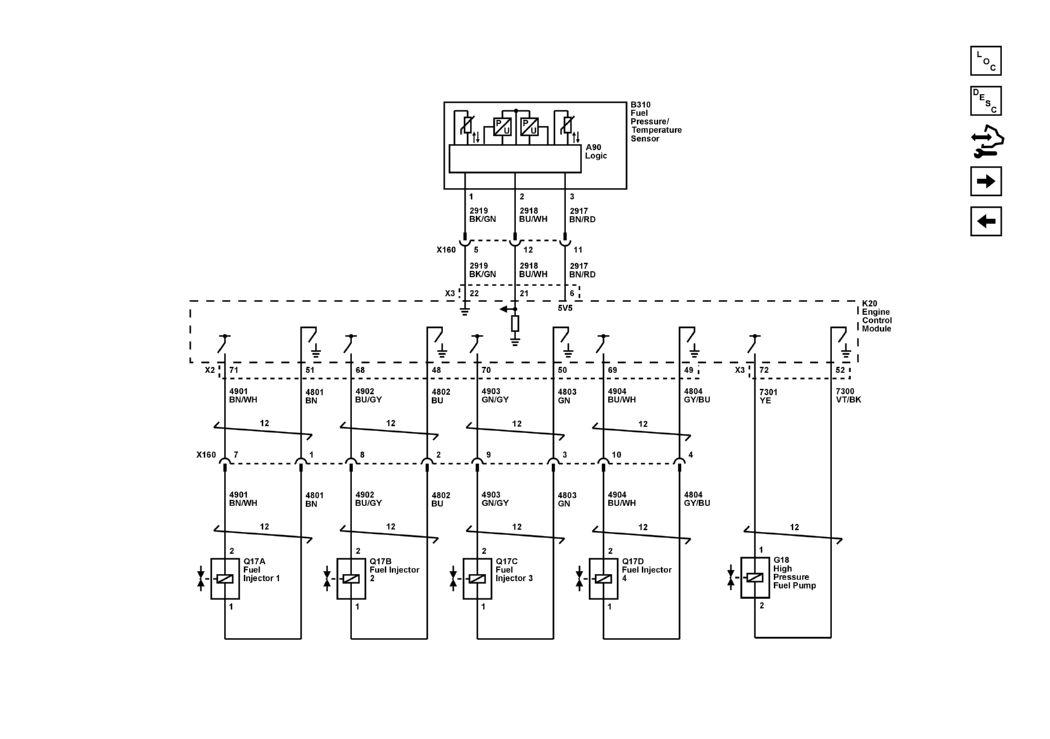

Fuel Controls - Fuel Injectors and High Pressure Control (LCV)
Fuel Controls - Fuel Injectors and High Pressure Control (LCV)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
