Section 8 (Engine Controls And Fuel - 2.5L (LCV) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>

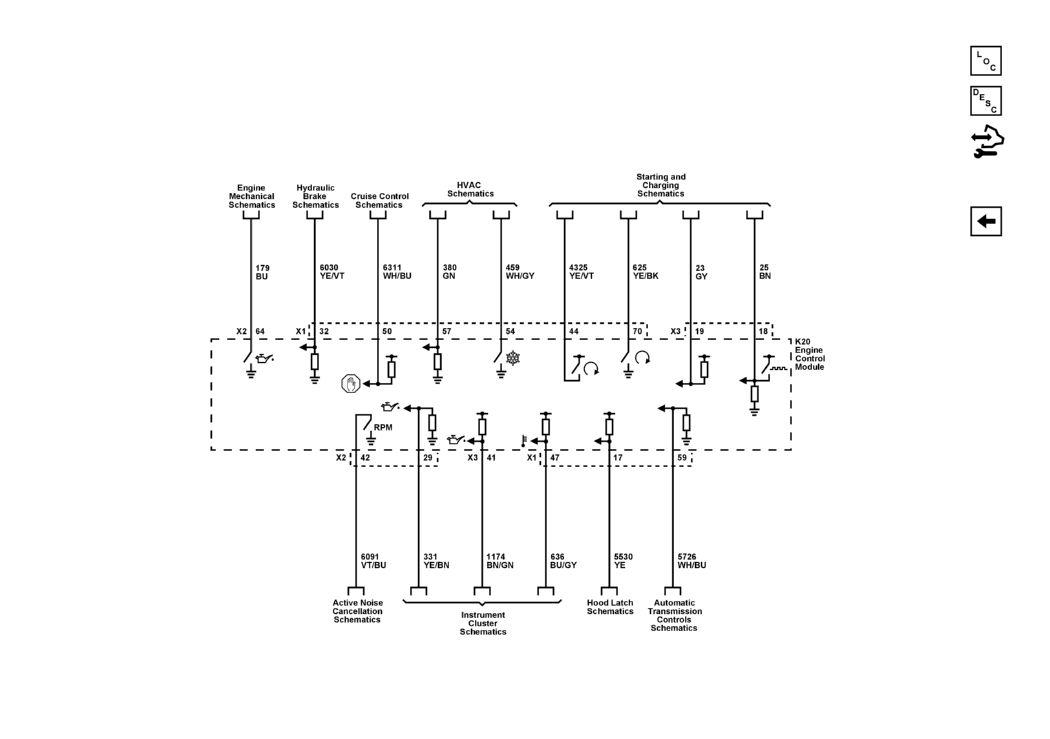

Controlled and Monitored Subsystem References (LCV)
Controlled and Monitored Subsystem References (LCV)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
