Section 8 (Engine Controls And Fuel - 2.5L (LCV) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>

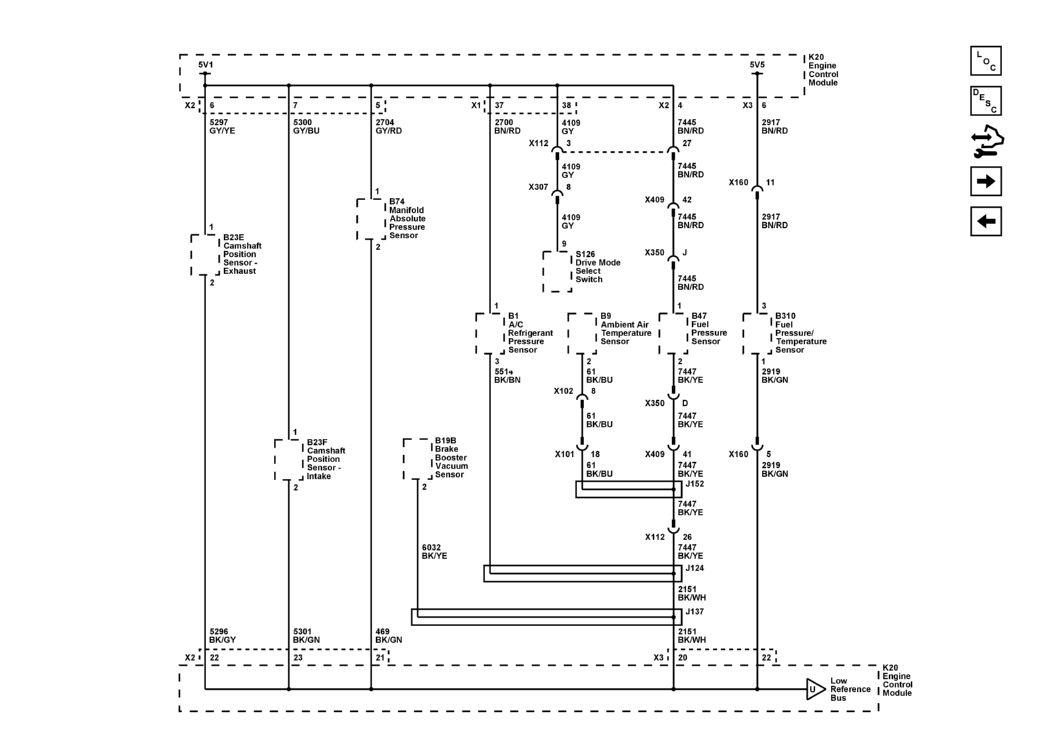

5V1, 5V5 and Low Reference Bus (1 of 2) (LCV)
5V1, 5V5 and Low Reference Bus (1 of 2) (LCV)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
