Section 7 (Engine Controls And Fuel - 2.0L (LSY) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>

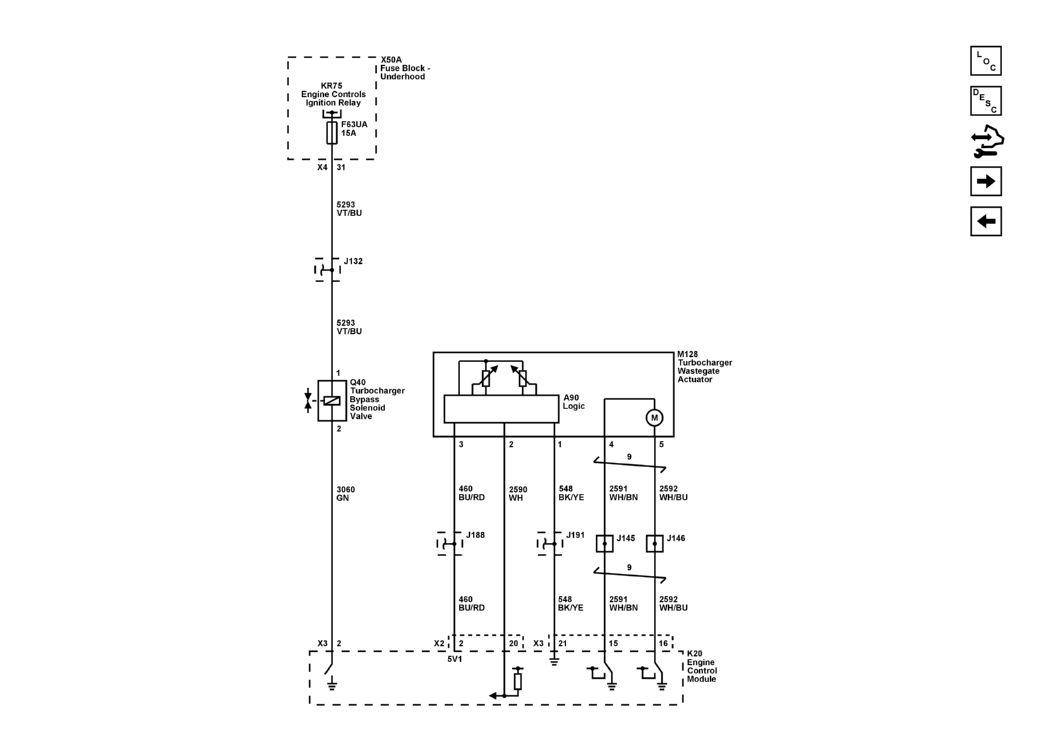

Fuel Controls - Turbocharger Controls (LSY)
Fuel Controls - Turbocharger Controls (LSY)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
