Disconnect Procedure
- Relieve the fuel system pressure. Fuel Pressure Relief
Remove the fuel line retainer (1).
- WARNING:
Wear safety glasses when using compressed air, as flying dirt particles may cause eye injury.

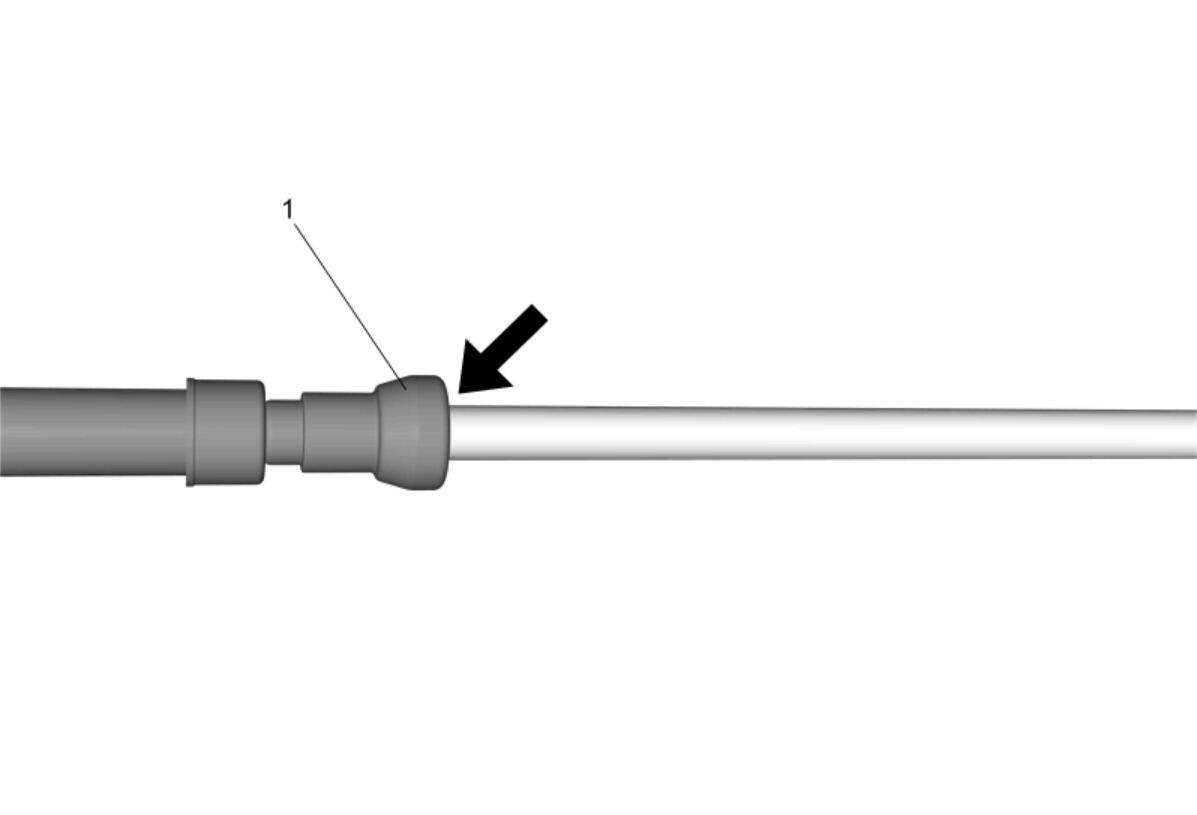

Using compressed air, blow any dirt or debris from around the connection (1).

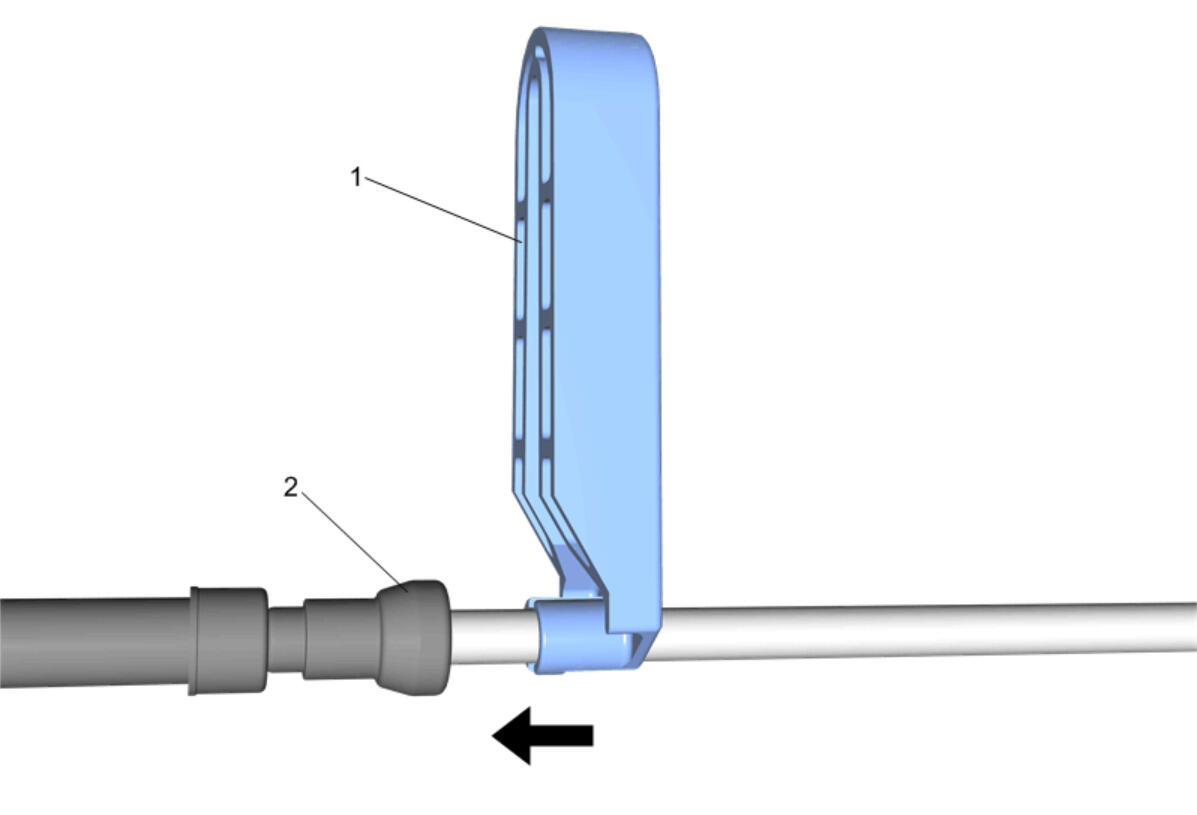

Using the correct tool from the CH-41769 Fuel Line Quick Disconnect Tool (1), insert the tool into the female connector end (2), then push inward to release the quick connect locking tabs.

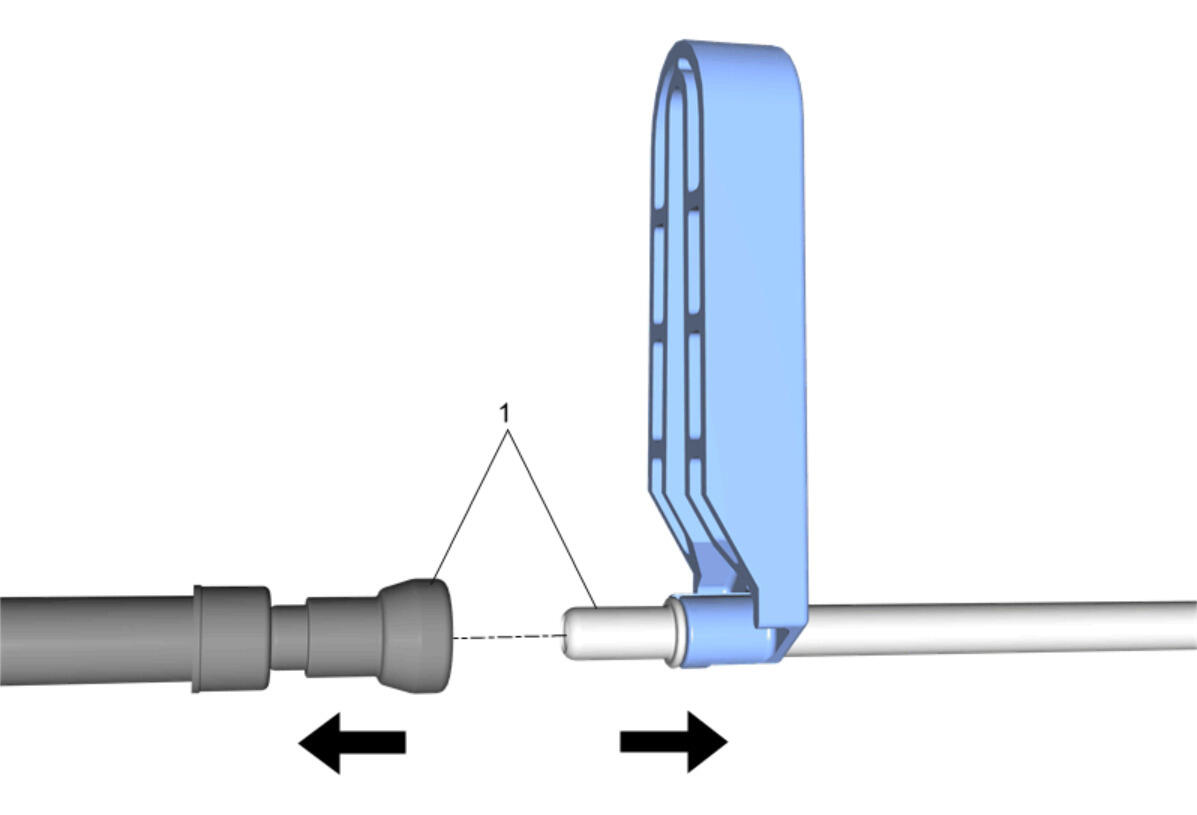

Pull the fuel line connection (1) apart.
- Use a clean shop towel in order to wipe off the male connection end.
- Inspect both ends of the fitting for dirt and burrs. Clean or replace the components as required.
If necessary, remove rust or burrs from the fuel pipes with an emery cloth. Use a radial motion with the fuel pipe end in order to prevent damage to the O-ring sealing surface. Use a clean shop towel in order to wipe off the male tube ends. Inspect all the connections for dirt and burrs. Clean or replace the components and assemblies as required.
