Connect Procedure
WARNING: This page is about a different variant/trim than selected.

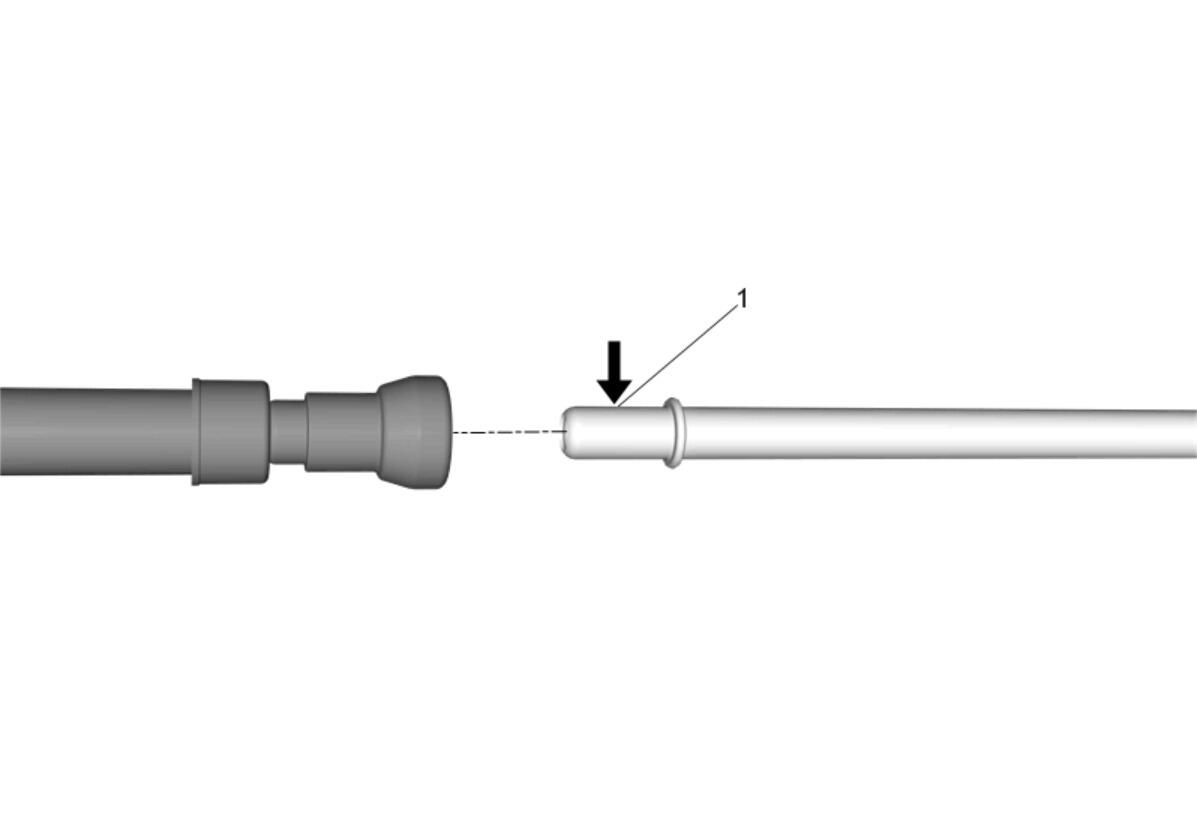

Apply a few drops of clean engine oil to the male connection end (1).

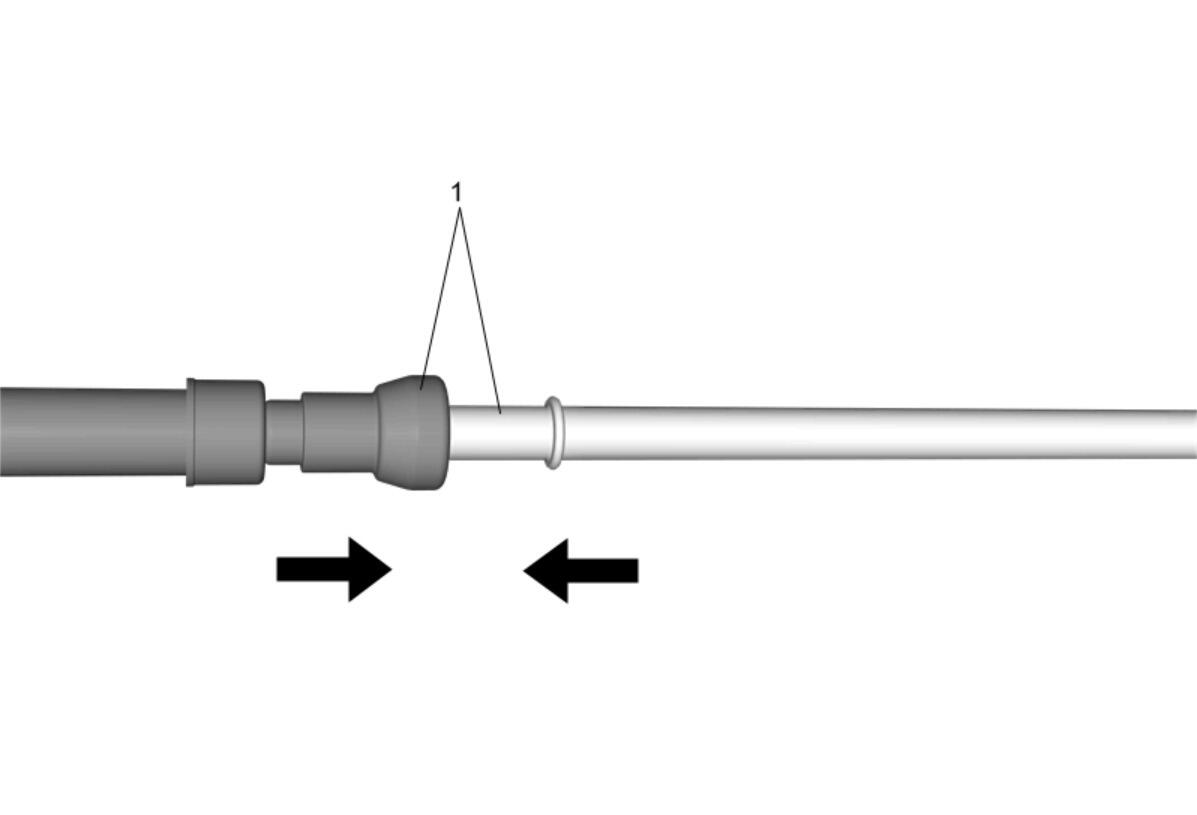

Push both sides of the fitting (1) together to engage the retaining tabs.

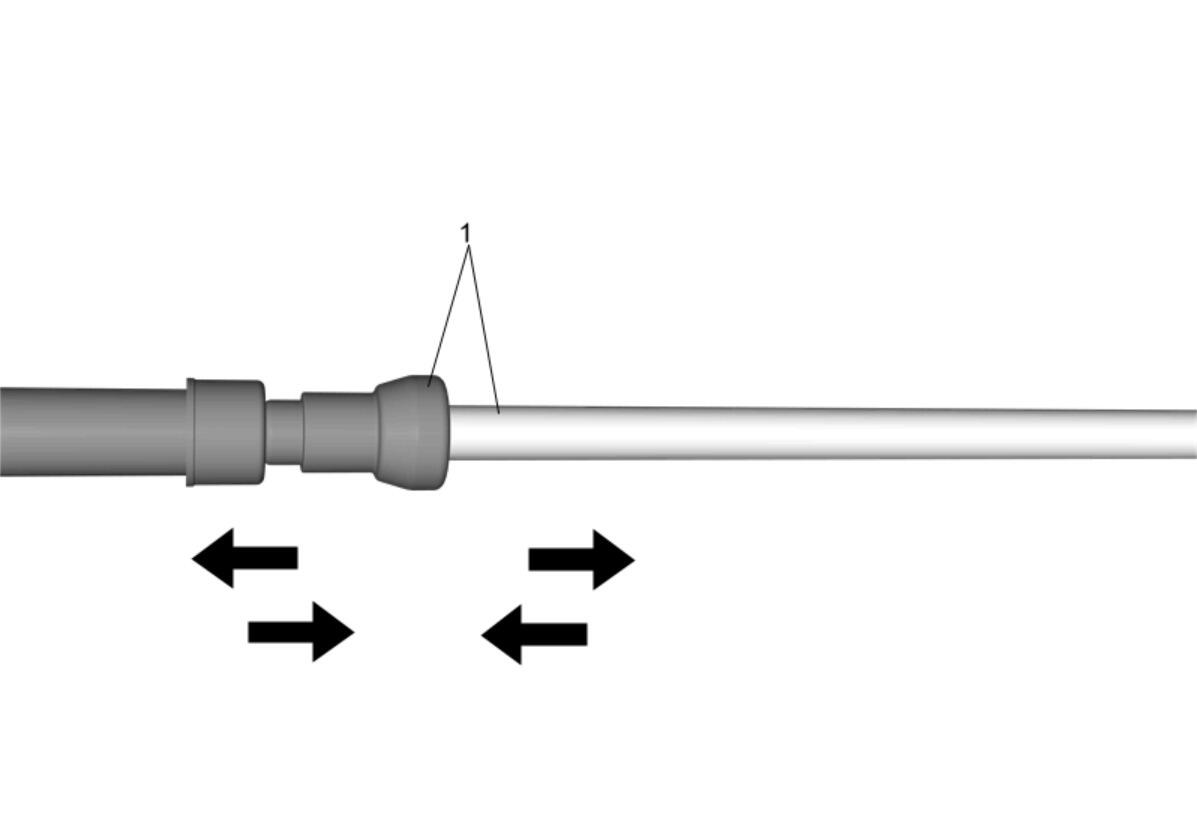

Once installed, pull on both sides of the connection (1) in order to ensure the connection is secure.

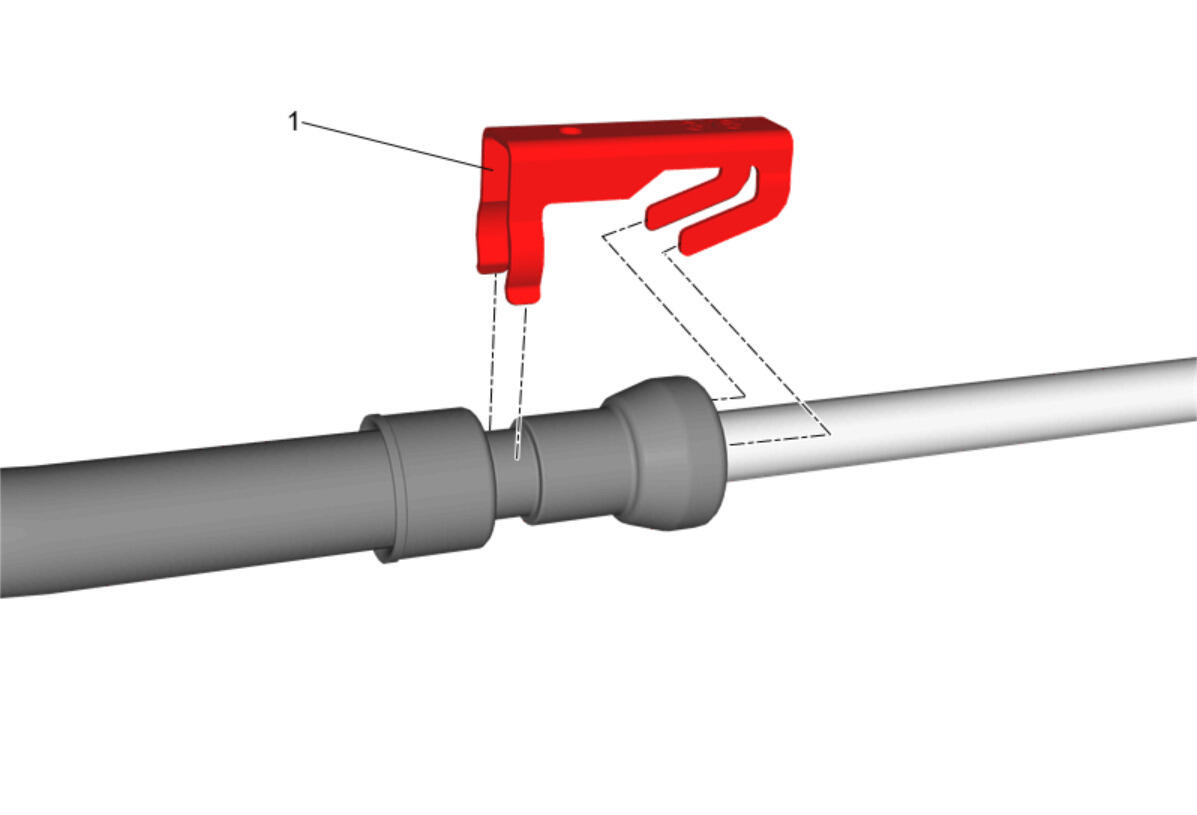

Install the fuel line retainer (1).
WARNING:
In order to reduce the risk of fire and personal injury, before connecting fuel pipe fittings, always apply a few drops of clean engine oil to the male pipe ends.
This will ensure proper reconnection and prevent a possible fuel leak.
During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.
