Knock Sensor Replacement (Position 2)
WARNING: This page is about a different variant/trim than selected.

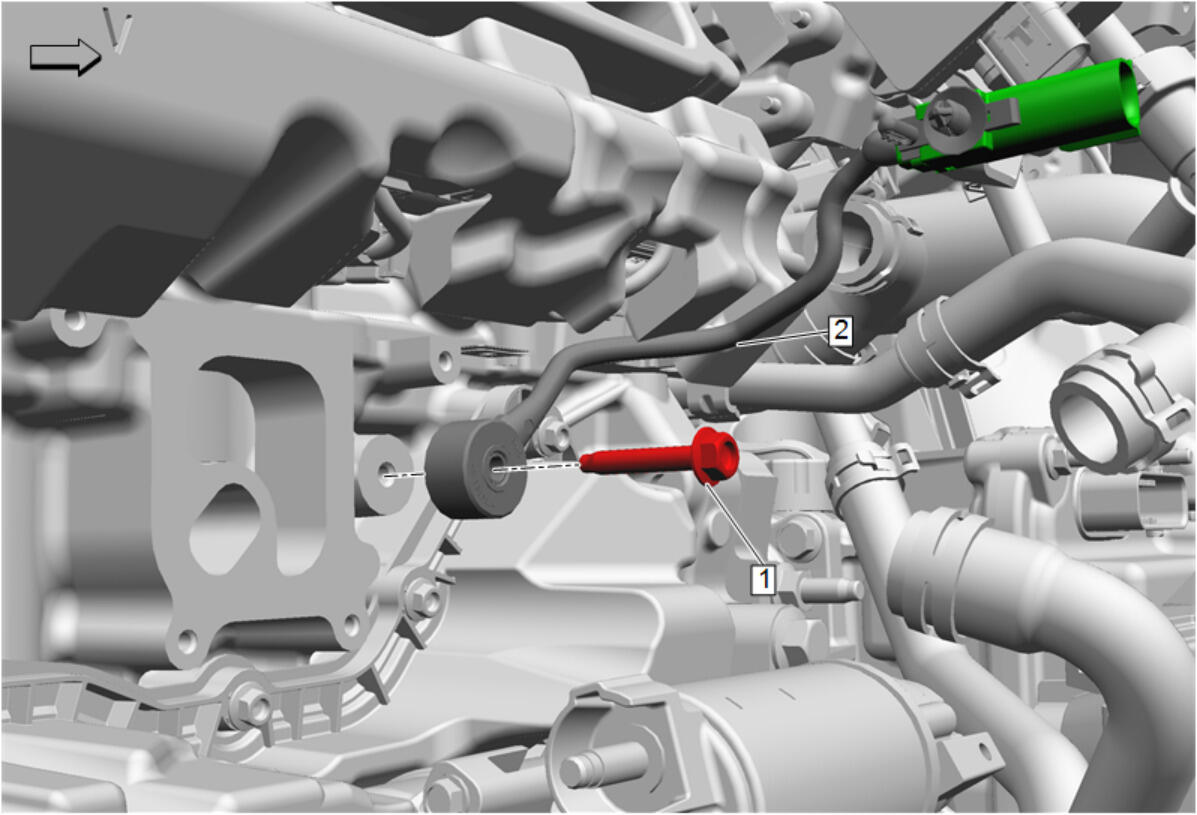

| Callout | Component Name |
|---|---|
| Preliminary Procedure Engine Coolant Flow Control Valve Replacement |
|
| 1 | Knock Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 15 N.m (11 lb ft) |
| 2 | Knock Sensor Procedure Disconnect the electrical connector. |
