Intake Camshaft Profile Sleeve Position Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

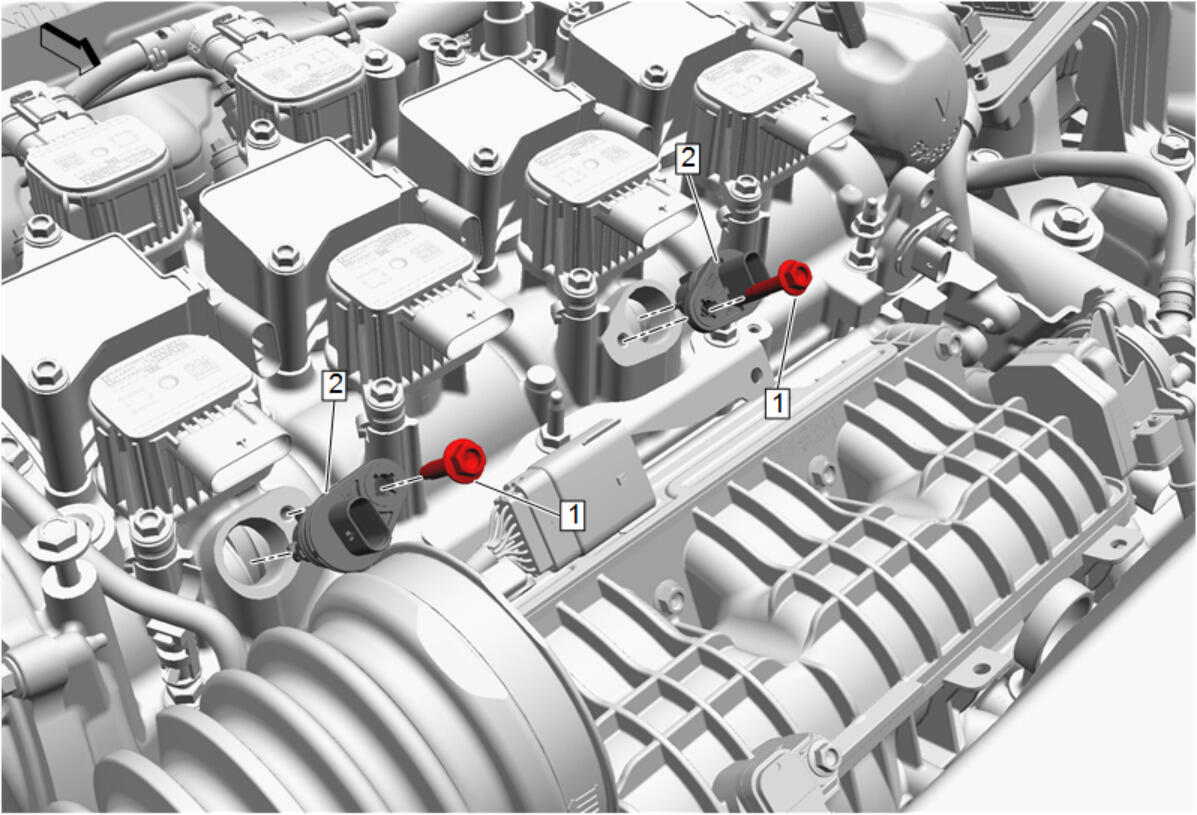

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Resonator Replacement Air Cleaner Outlet Intermediate Duct Replacement
1	Camshaft Intake Lobe Sensor Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Camshaft Intake Lobe Sensor [2x] Procedure Disconnect the camshaft position sensor electrical wiring harness connectors.

Callout

Component Name

Preliminary Procedures

Camshaft Intake Lobe Sensor Bolt [2x]

CAUTION:

Tighten
8.5 N.m (75 lb in)

Camshaft Intake Lobe Sensor [2x]
Procedure
Disconnect the camshaft position sensor electrical wiring harness connectors.
