Fuel Tank Shield Replacement (FWD)
WARNING: This page is about a different variant/trim than selected.

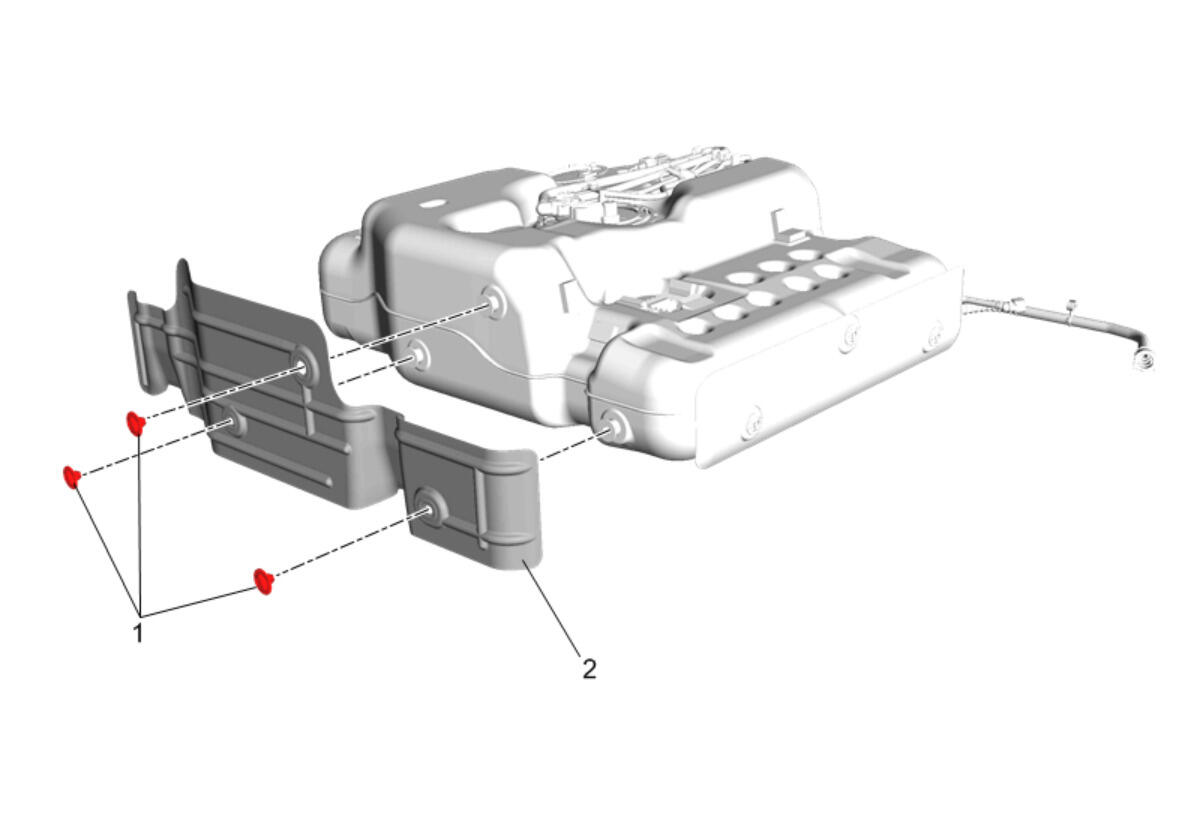

| Callout | Component Name |
|---|---|
| Preliminary Procedure Fuel Tank Replacement (FWD) |
|
| 1 | Fuel Tank Heat Shield Retainer [3x] |
| 2 | Fuel Tank Shield |
| Callout | Component Name |
|---|---|
| Preliminary Procedure Fuel Tank Replacement (FWD) |
|
| 1 | Fuel Tank Heat Shield Retainer [3x] |
| 2 | Fuel Tank Shield |
