Installation Procedure
WARNING: This page is about a different variant/trim than selected.
Place a suitable adjustable jack under the fuel tank.

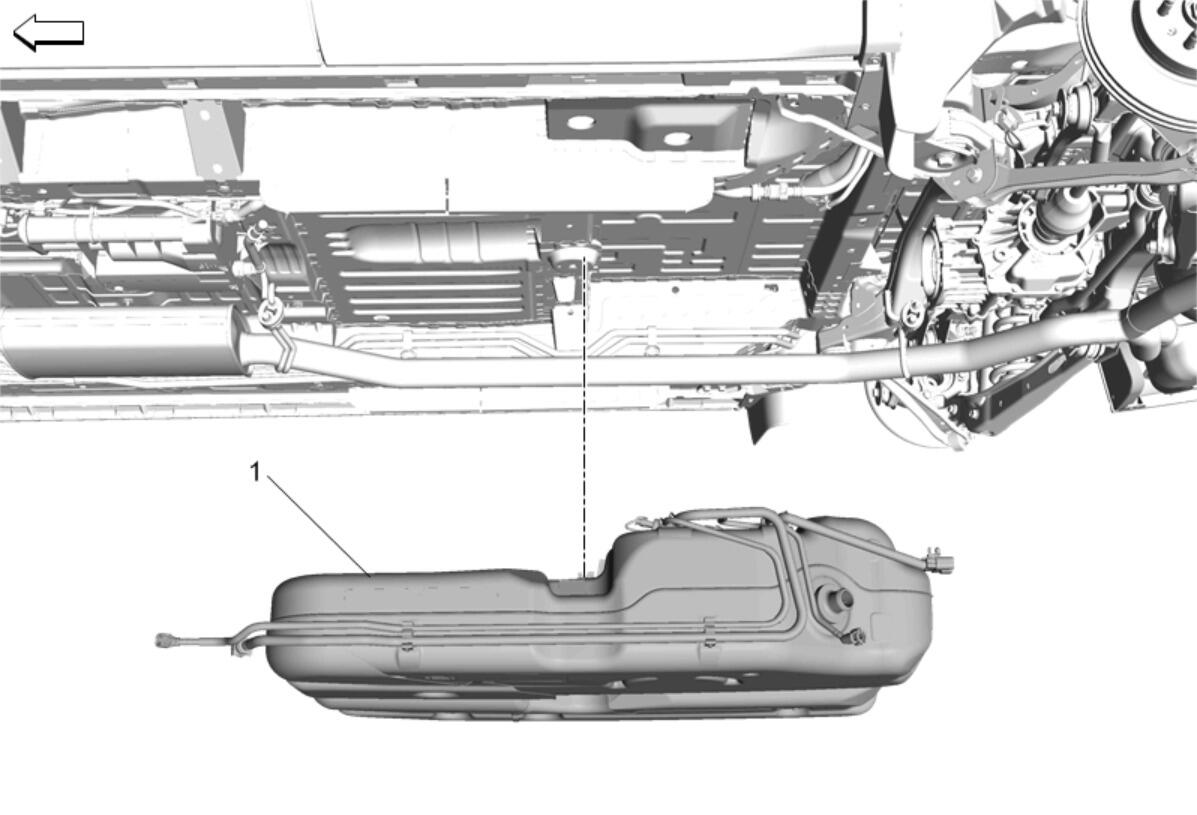

- Fuel Tank (1) - Install

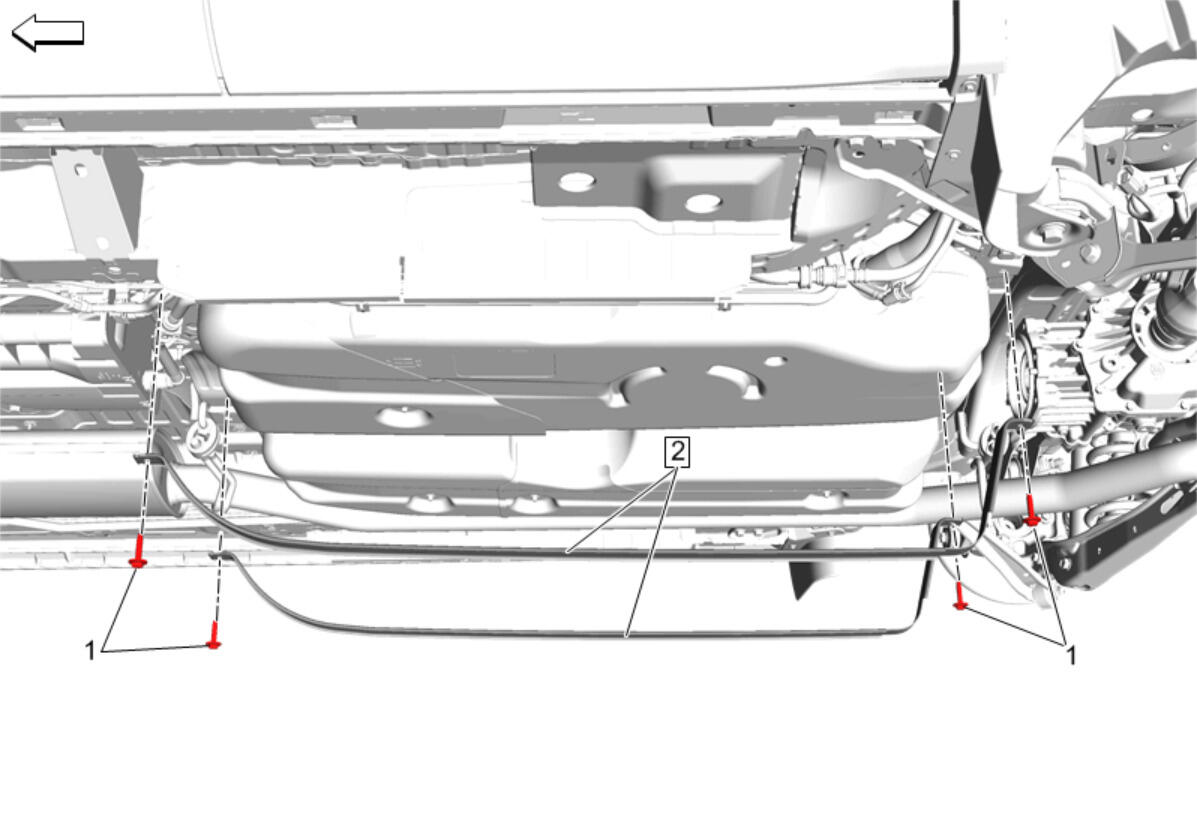

Fuel Tank Strap (2) - Install [2x]
- Fuel Tank Strap Bolt (1) - Install [4x] 22 N.m (16 lb ft)
- Remove fuel tank support.

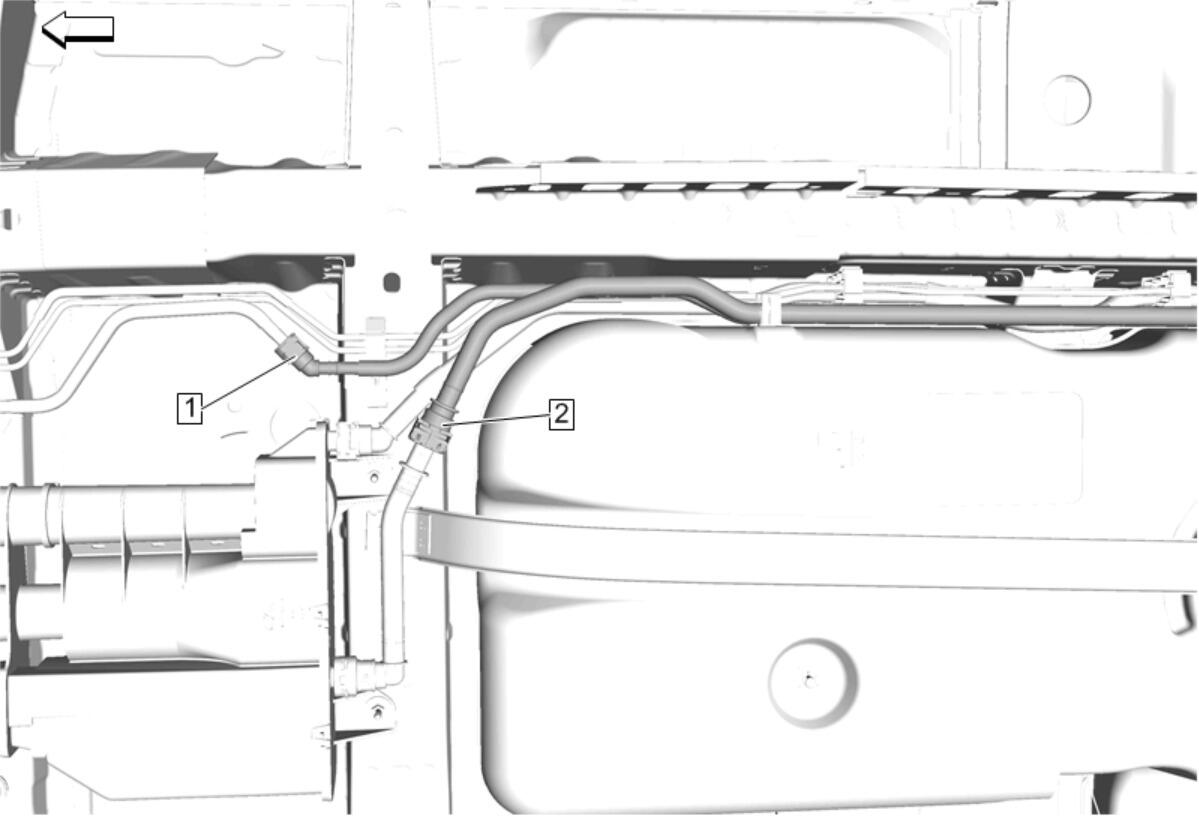

Evaporative Emission Canister Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
- Fuel Pump Fuel Feed Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

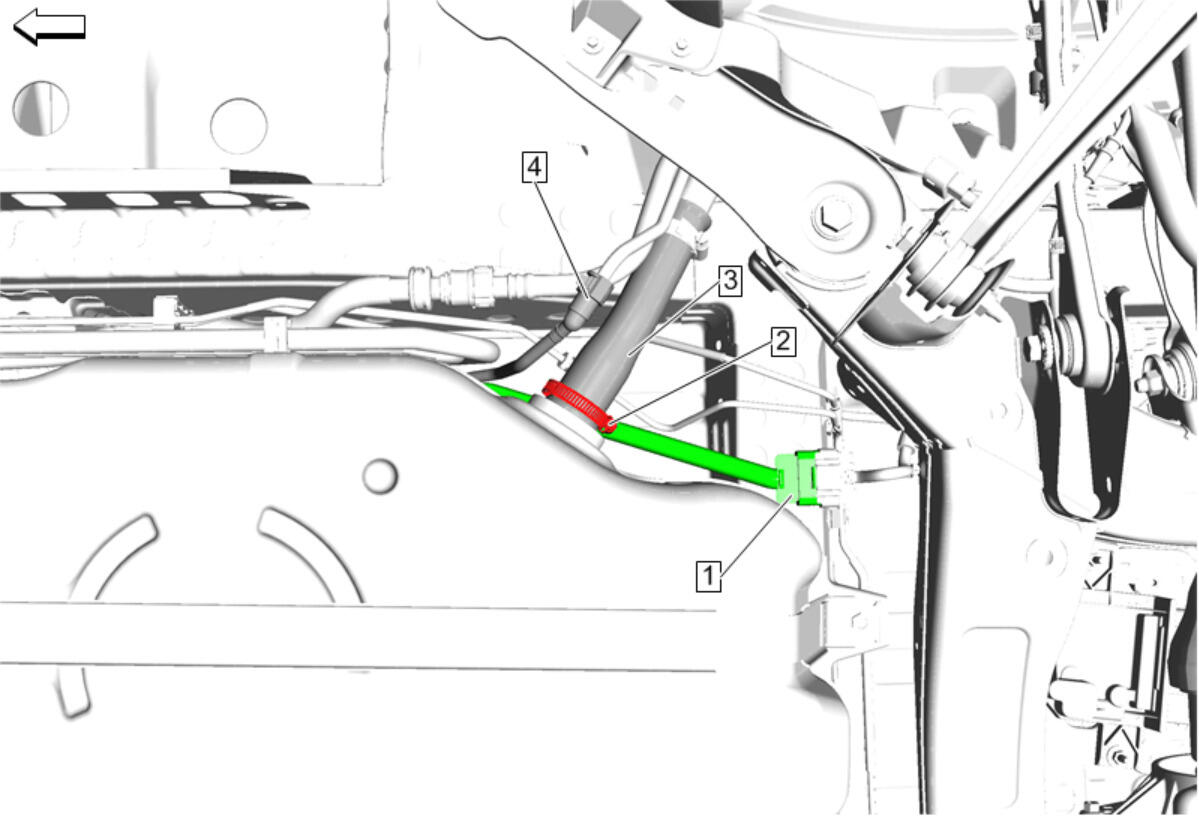

Evaporative Emission Canister Vent Hose (4) - Connect - Plastic Collar Quick Connect Fitting Service
- Fuel Tank Filler Hose (3) - Install
- Fuel Tank Filler Hose Clamp (2) - Tighten 3.5 N.m (31 lb in)
- Install wiring harness retainer to body.
- Wiring Harness (1) - Connect
- Driveline Torque Tube - Install - Driveline Torque Tube Replacement
- Refill the fuel tank.
- Inspect for fuel leaks.
CAUTION:
Refer to Fastener Caution .
