Fuel Tank Fuel Pump Module Wiring Harness Replacement (FWD)
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Preliminary Procedure Fuel Tank Replacement (FWD) Refer to Safety Glasses Warning . |
|

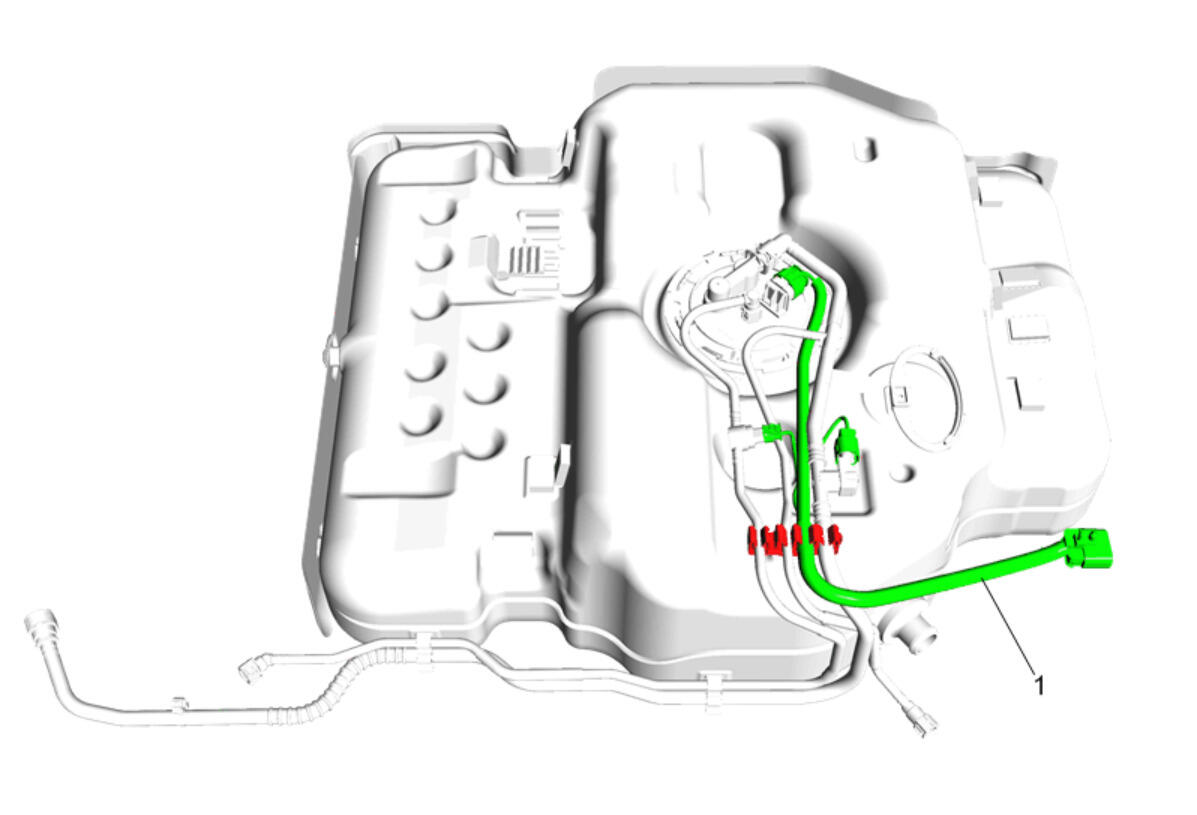

| 1 | Fuel Tank Fuel Pump Module Wiring Harness
NOTE:
Typical wiring harness shown, depending on option content the harness may look different. Procedure Disconnect the wiring harness from the fuel tank fuel pump module, the fuel tank pressure sensor, the fuel pressure sensor and remove from the retainer. |
