Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Fuel Tank - Remove - Fuel Tank Replacement (AWD)

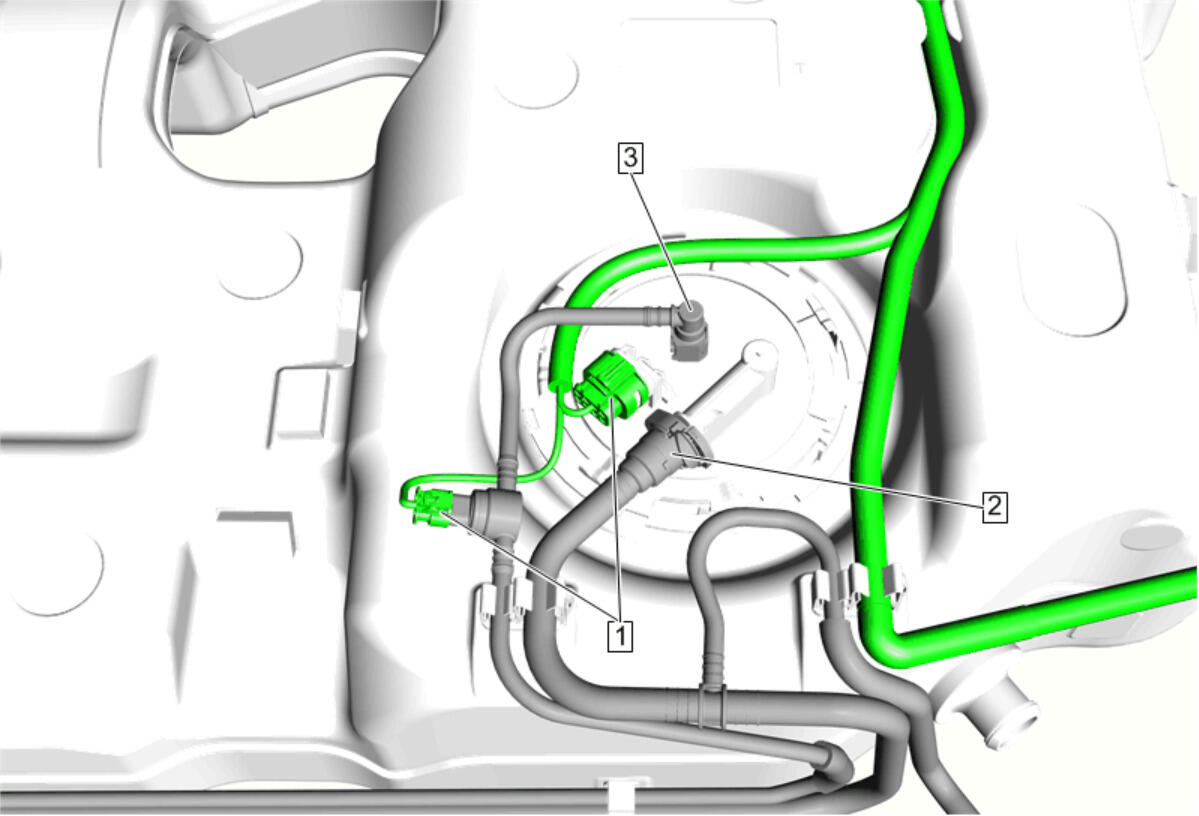

  2. GM5169659Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Disconnect [2x]

  3. Evaporative Emission Canister Vent Hose (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
  4. Fuel Pump Fuel Feed Hose (3) - Disconnect - Plastic Collar Quick Connect Fitting Service

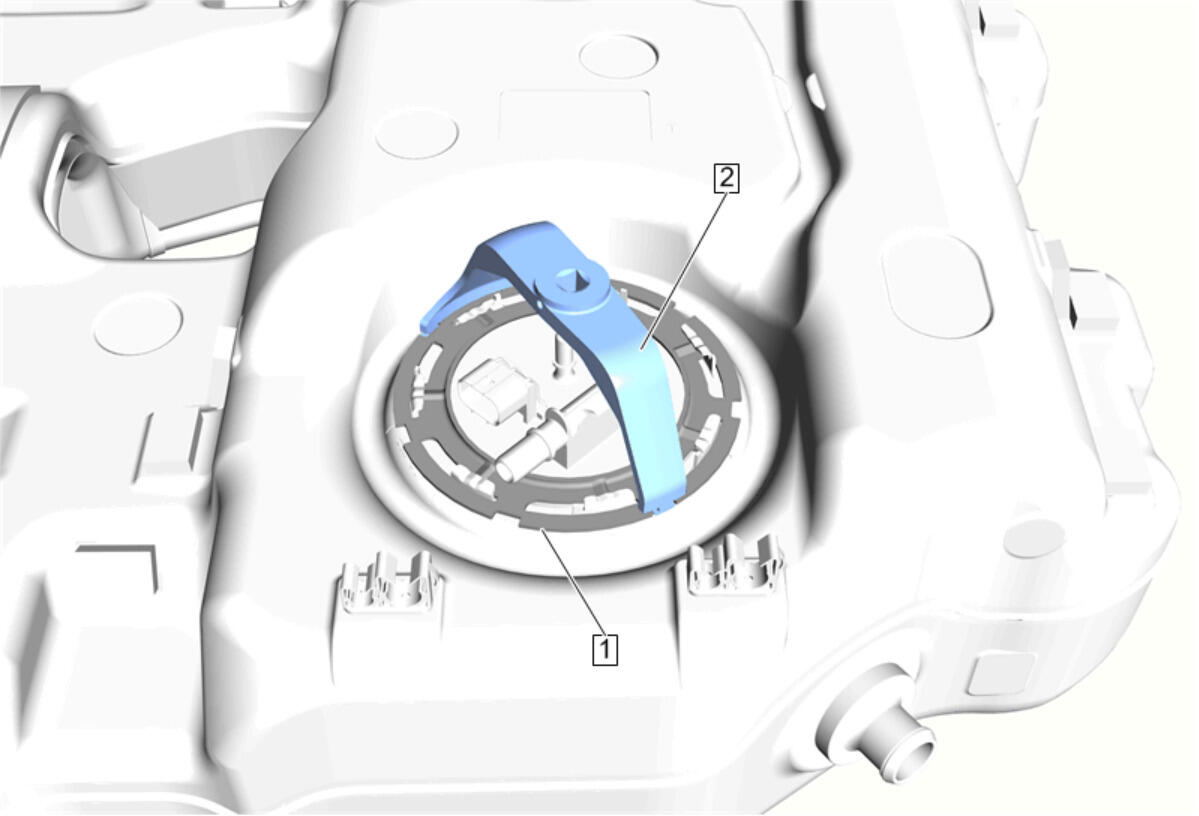

  5. GM5169666Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Lock Ring (1) - Remove - CH-45722  Fuel Sender Lock Ring Wrench (2)

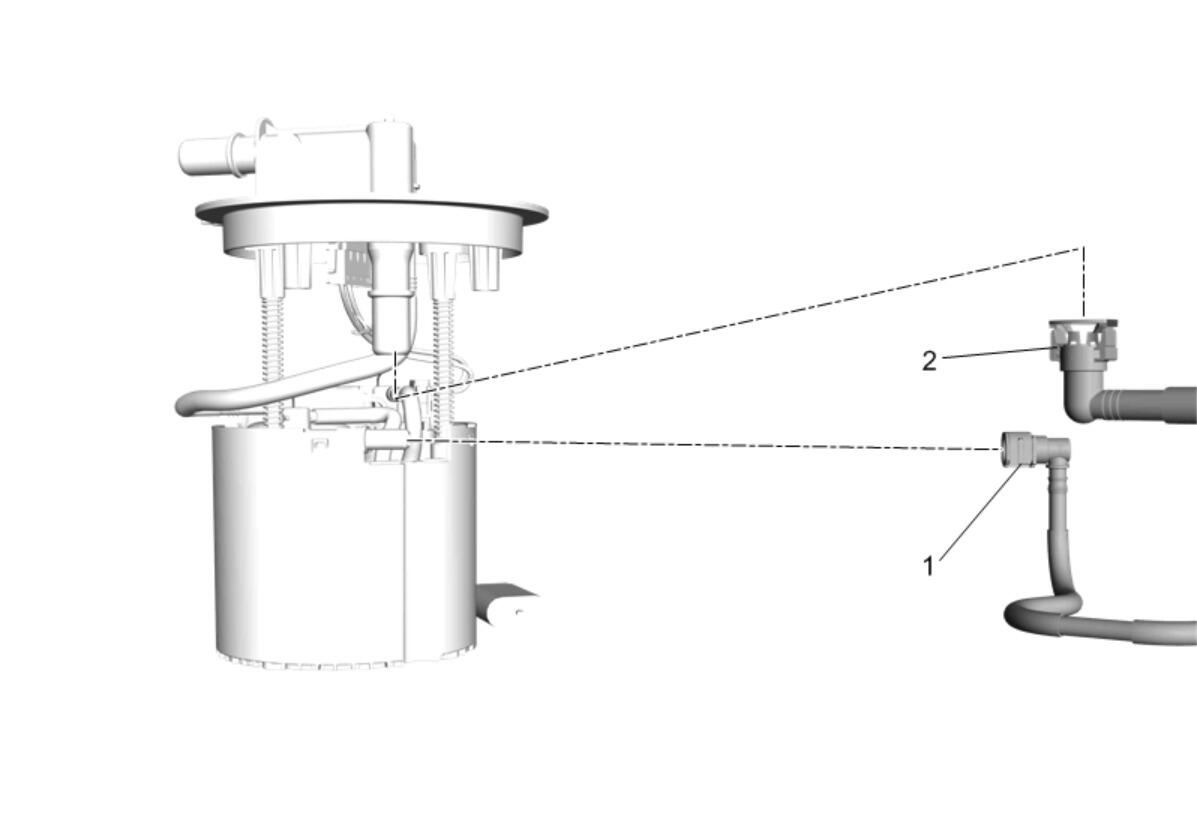

  6. GM5169681Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Vent Pipe (2) - Disconnect - Plastic Collar Quick Connect Fitting Service

  7. Transfer Pipe (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

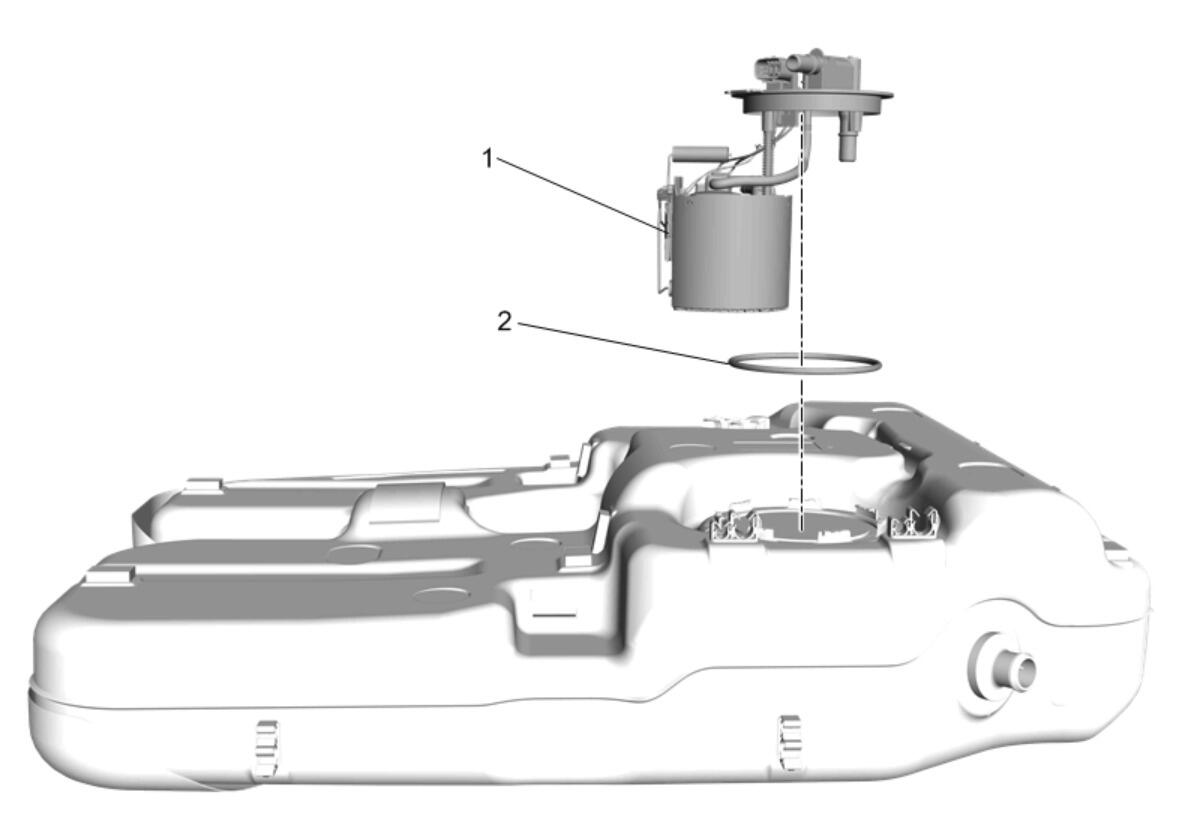

  8. GM5169674Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Fuel Pump Module (1) - Remove

  9. O-Ring (2) - Remove and DISCARD
