Fuel Tank Front Shield Replacement (FWD)

WARNING: This page is about a different variant/trim than selected.

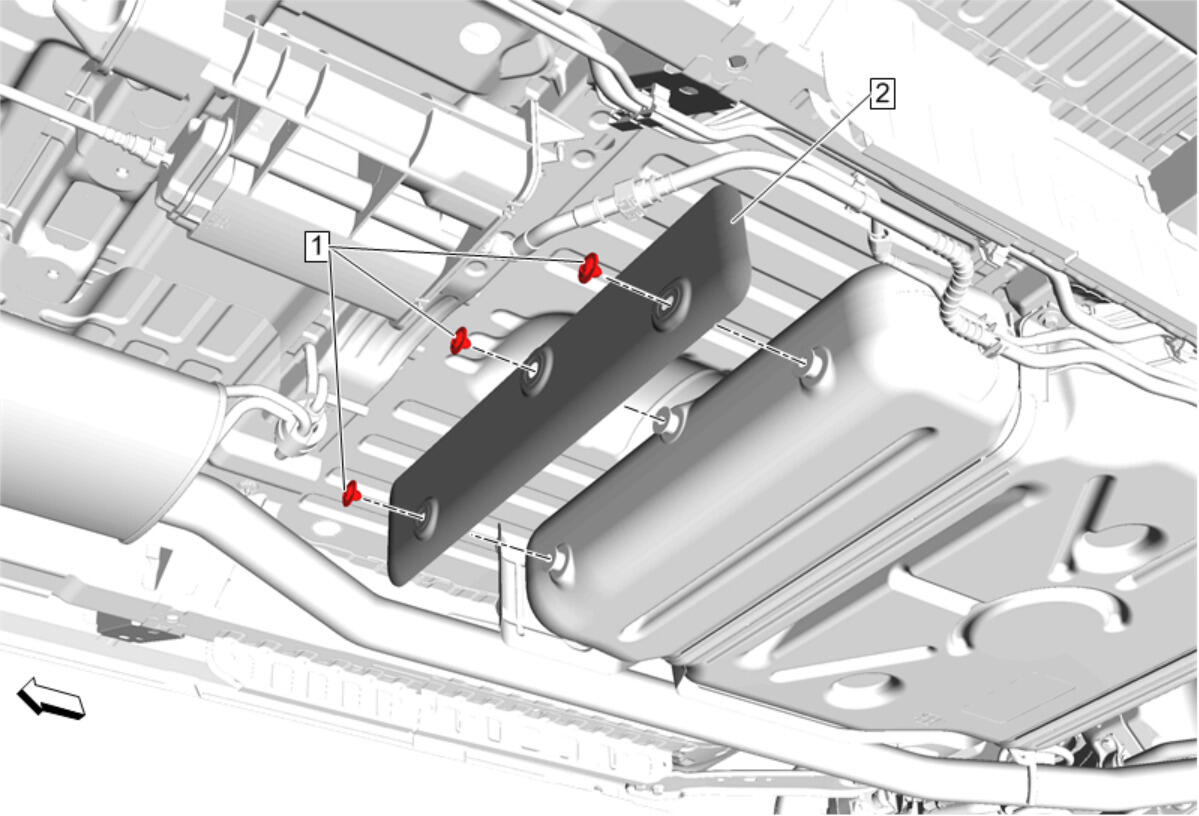

GM5222734Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Lifting and Jacking the Vehicle
1 Fuel Tank Heat Shield Retainer [3x]
2 Fuel Tank Front Shield
