Fuel Tank Front Shield Replacement (AWD)

WARNING: This page is about a different variant/trim than selected.

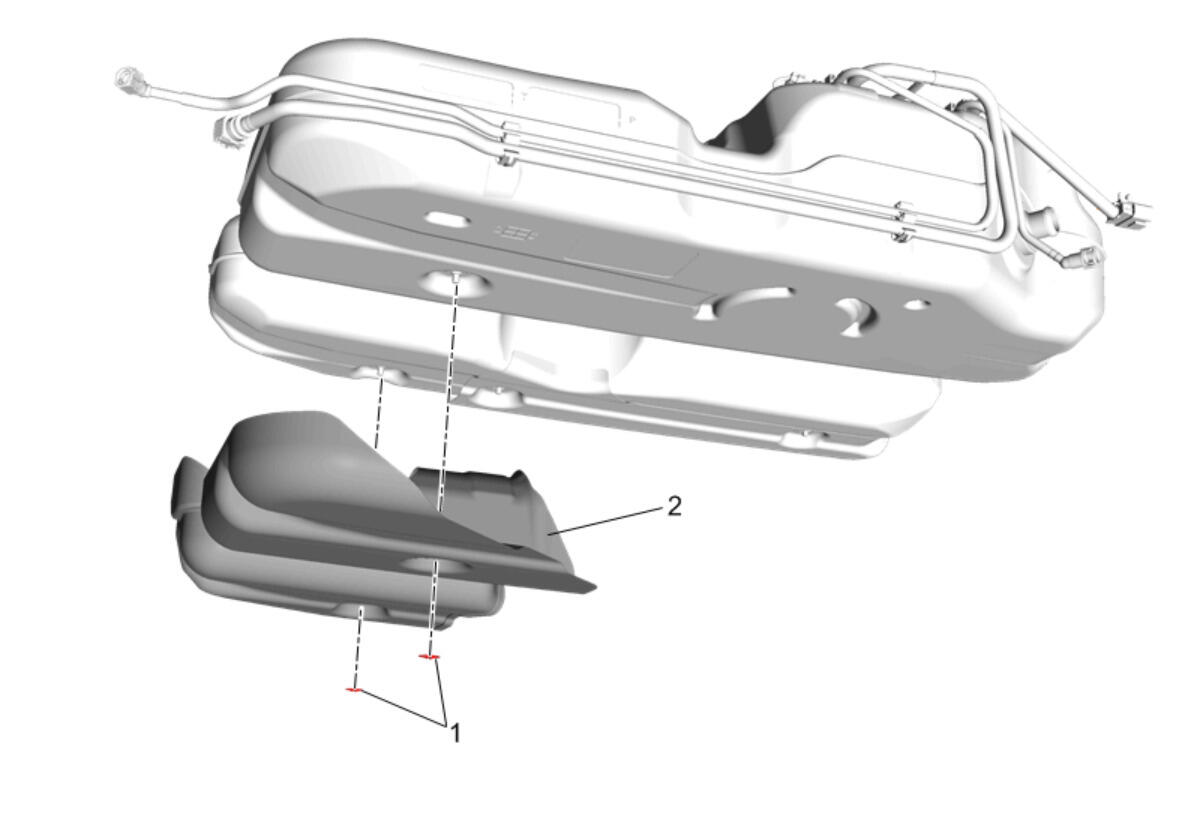

GM5214668Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Fuel Tank Replacement (AWD)
1 Fuel Tank Heat Shield Retainer [2x]
2 Fuel Tank Front Shield
