Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Fuel Tank - Remove - Fuel Tank Replacement (AWD)

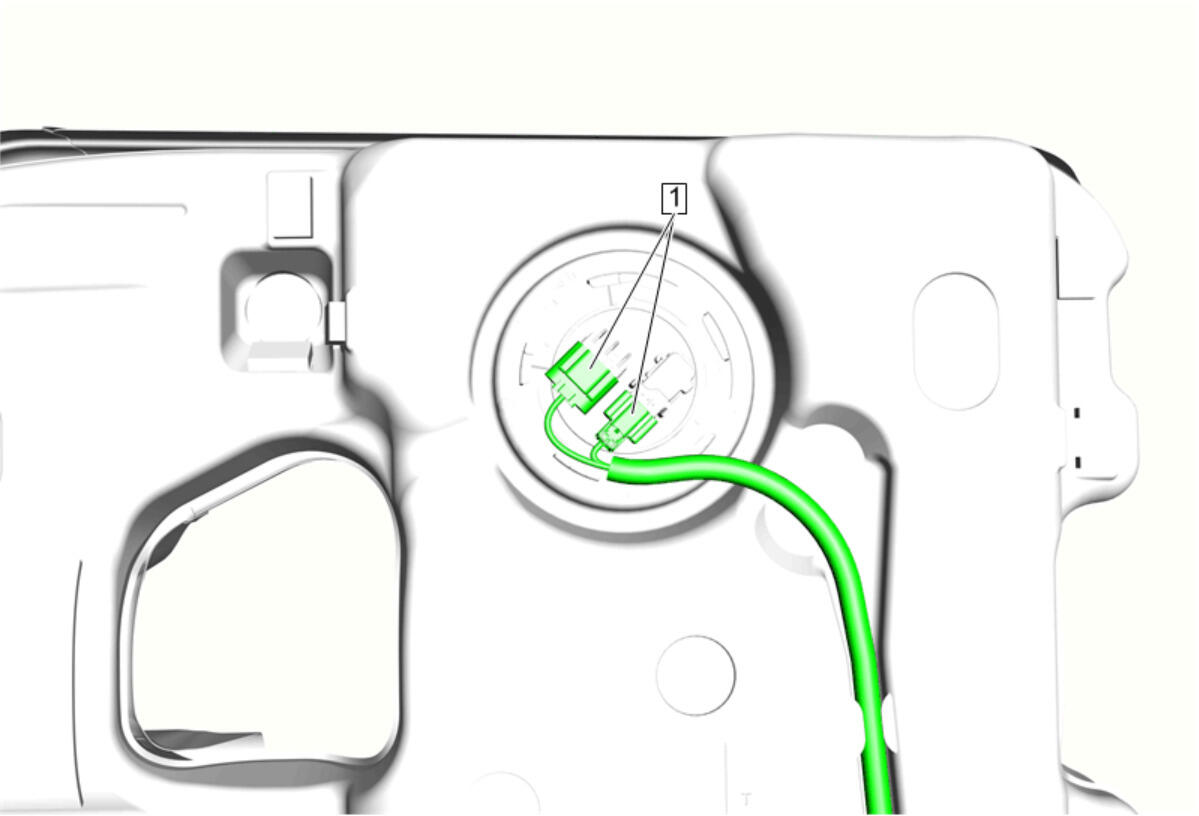

  2. GM5169685Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Disconnect [2x]

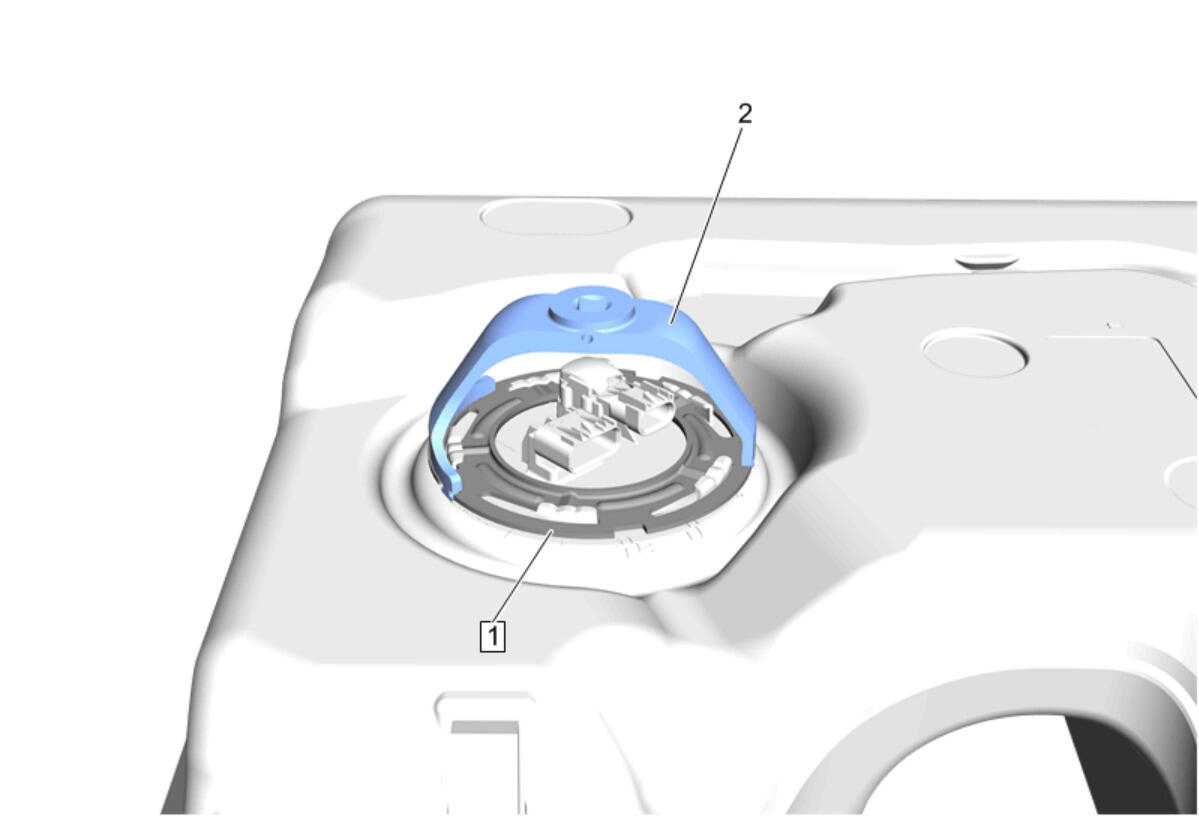

  3. GM5169687Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Retaining Ring (1) - Remove - CH-48482  Fuel Sender Lock Ring Wrench (2)

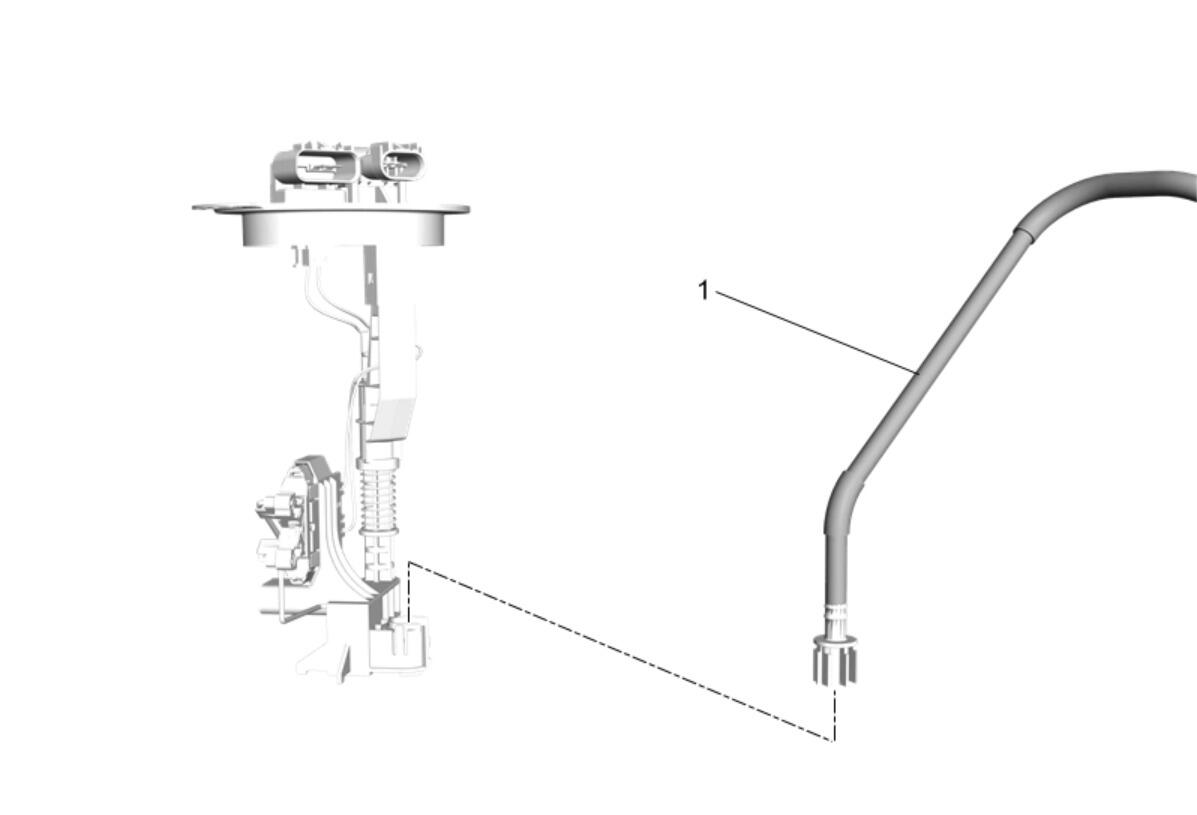

  4. GM5169696Courtesy of GENERAL MOTORS COMPANY

    Transfer Hose (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

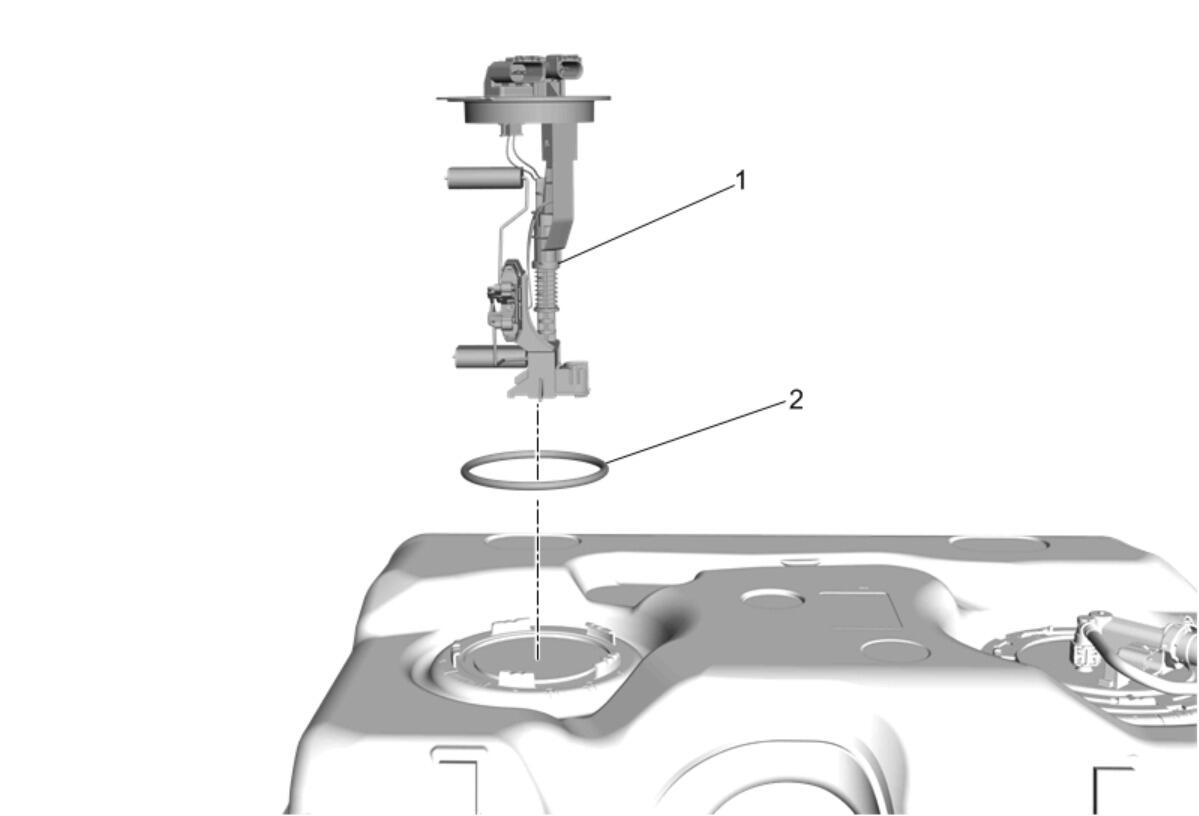

  5. GM5169689Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender (1) - Remove

  6. Fuel Sender Seal (2) - Remove and DISCARD
